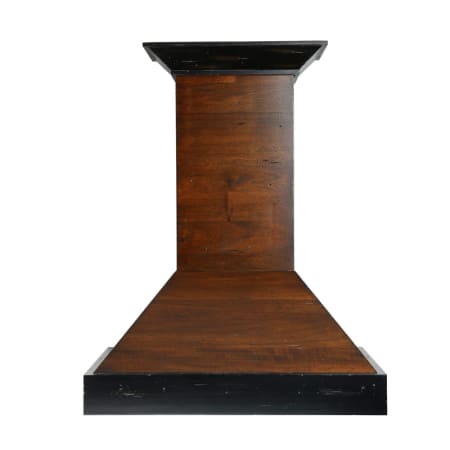

ZLINE 120 - 400 CFM 30 Inch Wide Wall Mounted Range Hood with 4 Speeds and Baffle Filters
Model: KBAR-30|Item: bci3873332
Details
The ZLINE 30 in. Designer Series Wooden Wall Mount Range Hood with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The hand-finished wood is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry.
Features:
- Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
- Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
- 2 LED lights illuminate the cooking area (bulbs included)
- 4 available speeds provide just the right amount of ventilation for any condition
- Push button controls allow you to easily set the power level of your range hood
- Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
- Ductwork easily connects to the top of the range hood for external venting
- Covered under 3 year parts and lifetime motor manufacturer warranties
Specifications:
- CFM: 120, 400
- Sones: 0.6, 2.5
- Nominal Width: 30"
- Width: 30"
- Height: 13-5/16"
- Depth: 18"
- Duct Size: 6" Round
- Ceiling Height: 7.104" - 9.104"
- Height Above Cooktop: 30"
- Amperage: 3.5A
- Voltage: 110V
- Wattage: 385W
Manufacturer Resources
Installation SheetDimensions and Measurements
Ceiling Height (Max) | 9.104 in. |
Ceiling Height (Min) | 7.104 in. |
CFM | 120, 400 |
CFM (High) | 400 |
Depth | 18 in. |
Duct Size | 6" Round |
Height | 13.3 in. |
Height Above Cooktop | 30" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 55 lbs. |
Width | 30 in. |
Dimensions and Measurements
Ceiling Height (Max) | 9.104 in. |
Ceiling Height (Min) | 7.104 in. |
CFM | 120, 400 |
CFM (High) | 400 |
Depth | 18 in. |
Duct Size | 6" Round |
Height | 13.3 in. |
Height Above Cooktop | 30" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 55 lbs. |
Width | 30 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Wood |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Wood |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Maximum Sones | 2.5 |
Minimum Sones | 0.6 |
Sones | 0.6, 2.5 |
Speeds | 4 |
Voltage | 110 |
Wattage | 385 |
Watts Per Bulb | 2.5 |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Maximum Sones | 2.5 |
Minimum Sones | 0.6 |
Sones | 0.6, 2.5 |
Speeds | 4 |
Voltage | 110 |
Wattage | 385 |
Watts Per Bulb | 2.5 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | ETL |
Collection | Classic |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts, Lifetime Motor |
Outdoor Approved | No |
Title 20 Compliant | No |
Title 24 | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | ETL |
Collection | Classic |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts, Lifetime Motor |
Outdoor Approved | No |
Title 20 Compliant | No |
Title 24 | No |
