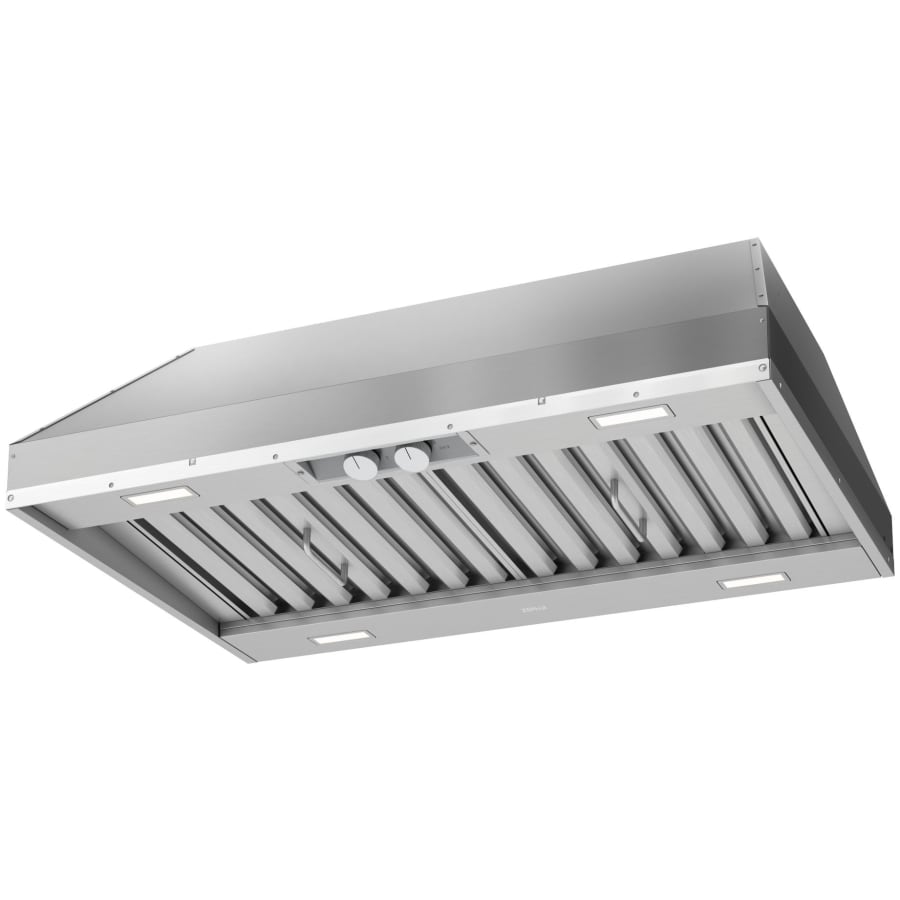

Zephyr Spruce 450 - 1200 CFM 42 Inch Wide Outdoor Range Hood Insert with LumiLight LED Lighting and Baffle Filters
Model: AK9840BS|Item: bci4556290
from theSpruce Collection
$1,699.00
Finish: Stainless Steel -
14 In Stock
Details
The Spruce outdoor insert is a one-piece liner that can be installed in wall or island applications. Spruce includes corrosion-resistant, 304-grade stainless steel and powerful 1,200-CFM internal blowers to handle the most intense grilling. Also featuring 3-speed metallic knob controls, LumiLight LED lighting, and pro baffle filters to enhance airflow.
Features:
- Illuminates cooking surfaces perfectly with LumiLight LED lighting
- Made with high quality 304S stainless steel for durability and longevity

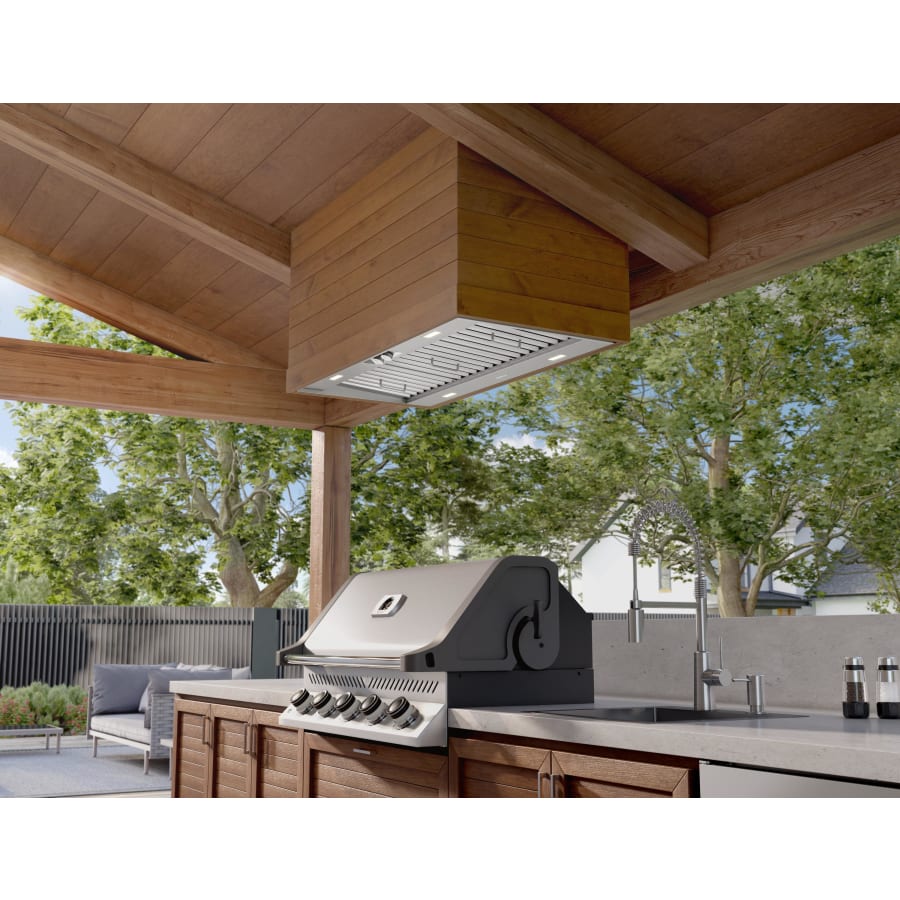

- Rated for outdoor use to finish any outdoor cooking area with style and performance
- Professional dishwasher safe stainless steel baffle filters
- Find your perfect speed with a 3 speed metallic easy to use knob dial
- Uses a powerful 1200 cfm blower
- Compatible with vertical 10 in. round ducting
- Covered under a 1 Year Labor, 3 Year Parts manufacturer warranty
Specifications:
- CFM: 450, 1200
- Sones: 3.5, 9
- Nominal Width: 42"
- Width: 40-3/8"
- Height: 12"
- Depth: 22-1/2"
- Duct Size: 10" Round
- Ceiling Height: 96" - 108"
- Height Above Cooktop: 30" to 36"
- Amperage: 8A
- Voltage: 120V
- Wattage: 960W
Dimensions and Measurements
Ceiling Height (Max) | 108 in. |
Ceiling Height (Min) | 96 in. |
CFM | 1200, 450 |
Depth | 22.5 in. |
Duct Size | 10" Round |
Height | 12 in. |
Height Above Cooktop | 30" to 42" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 42 in. |
Product Weight | 68 lbs. |
Width | 40.375 in. |
Dimensions and Measurements
Ceiling Height (Max) | 108 in. |
Ceiling Height (Min) | 96 in. |
CFM | 1200, 450 |
Depth | 22.5 in. |
Duct Size | 10" Round |
Height | 12 in. |
Height Above Cooktop | 30" to 42" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 42 in. |
Product Weight | 68 lbs. |
Width | 40.375 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Smart Home | No |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Smart Home | No |
Electrical and Operational Information
Amperage | 8 |
Sones | 3.5, 9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 960 |
Watts Per Bulb | 6 |
Electrical and Operational Information
Amperage | 8 |
Sones | 3.5, 9 |
Speeds | 3 |
Voltage | 120 |
Wattage | 960 |
Watts Per Bulb | 6 |
Warranty and Product Information
ADA | No |
Certifications | UL |
Collection | Pro |
Country Of Origin | Taiwan |
Energy Star | No |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
Warranty and Product Information
ADA | No |
Certifications | UL |
Collection | Pro |
Country Of Origin | Taiwan |
Energy Star | No |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | Yes |
Title 20 Compliant | Yes |
