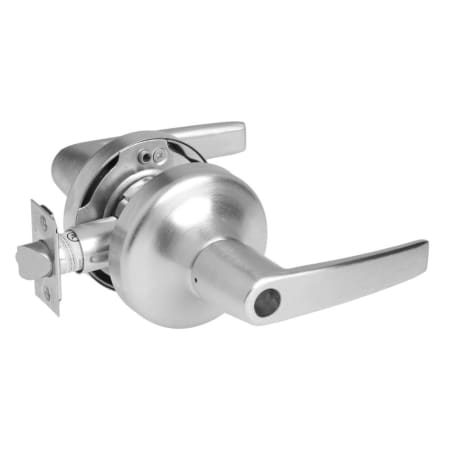

Yale 5300LN Series Monroe Grade 2 Keyed Entry Classroom Door Lever Set with T-Strike - Less Cylinder

Classroom Function:

• Latch bolt operated by lever either side, unless outside lever is locked by key
• Outside lever is locked or unlocked by key only; no internal locking mechanism
• Outside lever is free wheeling in locked position
• Allows for free egress

Features:

• Exceeds criteria for BHMA Grade 2
• All metal construction for enhanced durability and security
• Reversible handing for easy installation
• Includes a 5 year limited warranty
• 2 keys included with lever set
• UL listed 3 hour fire rating
• Compliant with Americans with Disabilities Act (ADA)

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 7/8"
• Door Thickness: 1-3/4" to 2"
• Handing: Left, Right, Reversible
• Trim Height: 3-1/2"
• Trim Width: 3-1/2"
• Handle Length: 4-5/8"
• Handle Projection: 3-1/2"
• Cylinder Included: No
• Latch Faceplate: Square Corner
• Material: Brass, Stainless Steel, Steel, Zinc
