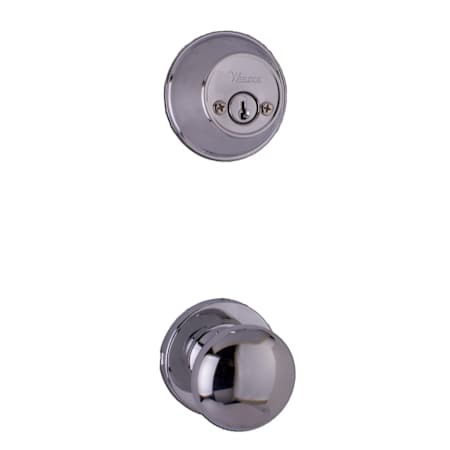

Weslock Moderne 2100 Series Double Cylinder Interior Pack with Impresa Knob from the Traditionale Collection
Model: 02111--I6SL2D|Item: bci2612808
from theModerne Collection
$52.78
Finish: Chrome -
Special Order
Details
Features:
- Removable knobs/levers prevents scratching during installation
- Meets ANSI A 156.2 Grade II lock standards
- Cylindrical Door Locks
- Thick Door Kit available for Doors 2" - 2-1/4"
- Limited lifetime mechanical & Limited lifetime finish warranty
Key Product Attributes:
- Keyed Entry (Double Cylinder) Interior Pack Function: Interior packs are used to complete a working handleset, which cannot function without the additional mechanical parts and trim. Weslock double cylinder keyed entry sets are keyed on both the exterior and interior portions and add an extra layer of security to certain environments. An example would be to use a double cylinder where there's glass in close proximity to the handle, thus disallowing an intruder from unlocking the door from the inside should they break through. Check local building codes before installing, as double cylinder sets are not panic proof, and may be prohibited in certain residential applications.
Specifications:
- ANSI Certification: A156.2
- Backset: Adjustable 2-3/8" or 2-3/4"
- Center to Center: 5.5"
- Cylinder: 5 Pin
- Door Thickness: 1-3/8" to 2"
- Handing: Reversible
- Height: 2.5"
- Material: Brass
- Product Weight: 2.35 lbs
- Projection: 2.125"
- Rosette Shape: Round
- Width: 2.5"
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 5.5 in. |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Handle Projection | 2.125 in. |
Product Weight | 2.35 lbs. |
Trim Height | 2.5 in. |
Trim Width | 2.5 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 5.5 in. |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2" |
Edge Bore | 1" |
Handle Projection | 2.125 in. |
Product Weight | 2.35 lbs. |
Trim Height | 2.5 in. |
Trim Width | 2.5 in. |
Characteristics and Features
Cylinder | 5 Pin |
Cylinder Type | Double Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Handle Material | Metal |
Handle Style | Knob |
Interior Handle Style | Knob |
Latch Faceplate | Round Corner, Square Corner |
Material | Brass |
Panic Proof | No |
Rosette Shape | Round |
Shape | Round |
Theme | Modern |
Characteristics and Features
Cylinder | 5 Pin |
Cylinder Type | Double Cylinder |
Function | Keyed Entry |
Handing | Left, Reversible, Right |
Handle Material | Metal |
Handle Style | Knob |
Interior Handle Style | Knob |
Latch Faceplate | Round Corner, Square Corner |
Material | Brass |
Panic Proof | No |
Rosette Shape | Round |
Shape | Round |
Theme | Modern |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
Certifications | ANSI |
Collection | Traditionale |
Series | Moderne |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
Certifications | ANSI |
Collection | Traditionale |
Series | Moderne |
