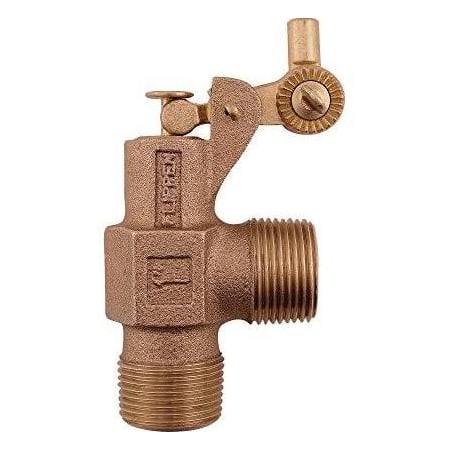

Watts 1" Float Valve

1" Float Valve

Series 375, 500, 750, 1000, 1250, 1500 and 2000 Heavy Duty Mechanical Float Valves are used in commercial, industrial, and agricultural applications for controlling high capacity water flow. This series is ideal for use in air conditioning, refrigeration, and irrigation systems. These connectors can be tank wall-mounted. All valves in the series have bronze body construction with machine flanges on the inlet side (sizes 1” to 2” (25 to 50mm) have female NPT pipe threaded inlet connections), and male straight-pipe threaded for locknut on the outlet side. The connectors have serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action.

Watts 0770182 Features:

• Pipe-threaded for pipe connections and straight-pipe threaded for locknut
• Machined flange for support against tank wall
• All bronze bodies
• Serrated arms for quick easy adjustment of water level
• High tensile manganese bronze long and short arms
• No jam single lever action
• Replaceable seals

Watts 0770182 Specifications:

• Height: 4"
• Length: 3"
• Material: Bronze
• Connection Size: 1"
• Connection Type: NPT
• Weight: 0.6 lbs.
