Watts 3/4" Lead Free Water Pressure Reducing Valve with Polymer Seat N/A

Watts 3/4" Lead Free Water Pressure Reducing Valve with Polymer Seat

Model: 0009282
|
Item: bci4089571

$469.88
25 In Stock
    Free Shipping!
    Leaves the Warehouse Today, July 8th
    -
    Return & Shipping Details

    Details

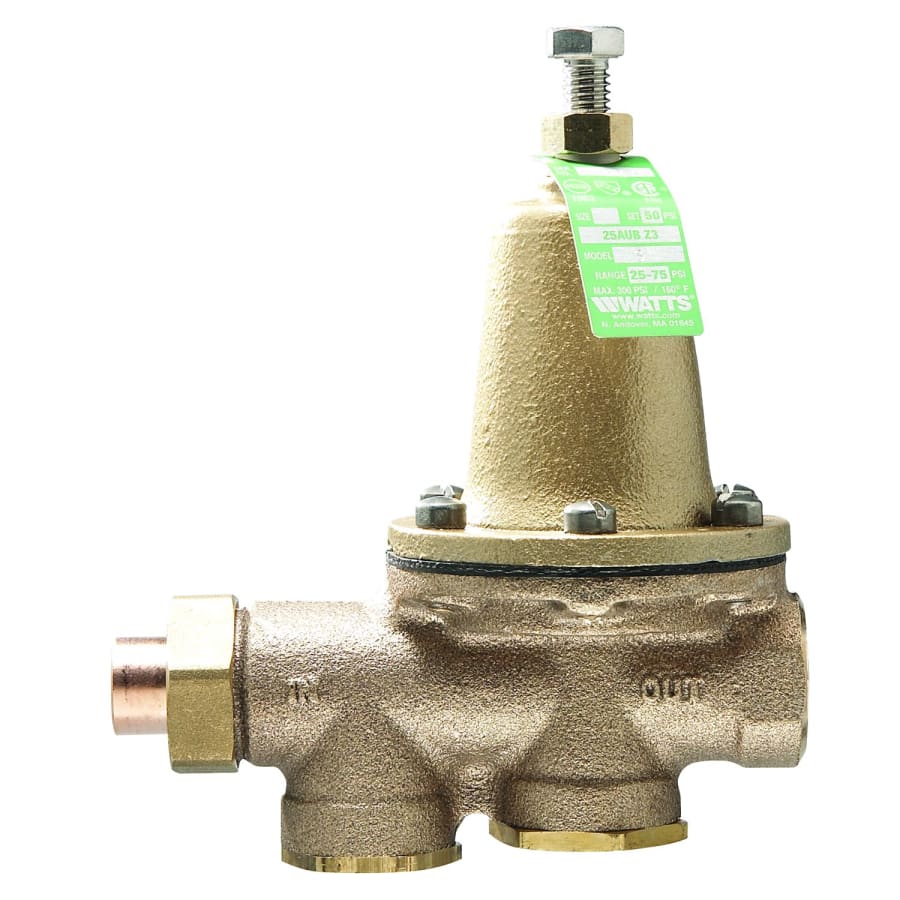

    This 3/4" lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, a solder union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 to 75 PSI (172 to 517 kPa) with the standard setting at 50 PSI (345 kPa).

    Watts 0009282 Features:

    • Solder X NPT Female
    • Adjustable 25-75 PSI
    • Solder union inlet
    • Sealed spring cage with stainless steel cage screws
    • Integral stainless steel strainer removable for cleaning
    • Replaceable seat module
    Additional Watts Links

    Dimensions and Measurements

    Water Connection
    3/4"

    Dimensions and Measurements

    Water Connection
    3/4"

    Characteristics and Features

    Material
    Brass

    Characteristics and Features

    Material
    Brass

    Warranty and Product Information

    Approved for Commercial Use
    Yes
    Lead Leaching Certified NSF/ANSI 61
    N/A (Regulation does not apply)

    Warranty and Product Information

    Approved for Commercial Use
    Yes
    Lead Leaching Certified NSF/ANSI 61
    N/A (Regulation does not apply)
