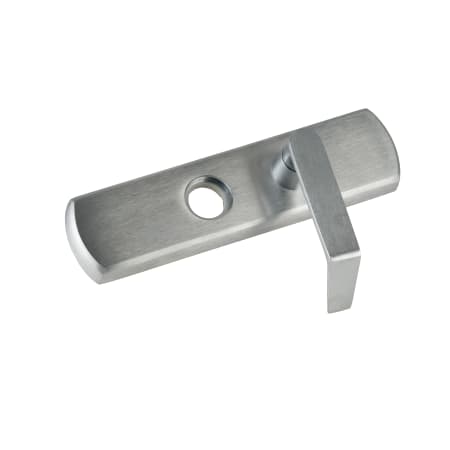

Von Duprin Electric Right Handed Reverse Trim Lever for the 98 or 99 Series Rim or Vertical Exit Devices

Features:

• Exterior Electrified Lever Trim
• Electrified Remote Locking and Unlocking
• Standard in Fail Safe Condition
• Right Handed Reversible Handing
• Can be Used with 98 and 99 Series Rim or Vertical Rod Exit Devices
• Furnished Standard with Cylinder Operation for Nightlatch (NL) or Blank Escutcheon (BE)
• Can be Field Converted to Fail Secure where allowed

Product Specifications:

• Escutcheon Plate Size: 2-3/74" x 10-3/4" x 27/32"
• Projection: 2-7/8"
• Comes with 06 Lever Design
• Solenoid - Continuous Duty 24VDC
• Solenoid Draw - 0.22 Amps

Product Technologies:

• 996L Breakaway Lever: This has become the standard lever trim for 98L/99L Series devices. The design is especially effective in areas where vandalism to door hardware is a problem. The intent of the design is to discourage costly repairs. The breakaway feature is not available on the Night Latch or Dummy Trim versions.

Product Variations:

• 996LR-LH: Electric Left Handed Trim for 98 or 99 Exit Devices
• 996LRBE-LH: Left Handed Blank Escutcheon Exit Trim
• 996LRNL-LH: Left Handed Night Latch Exit Trim
• 996LRNL-RH: Right Handed Night Latch Exit Trim
• 996L-DT-LH: Left Handed Dummy Exit Trim
