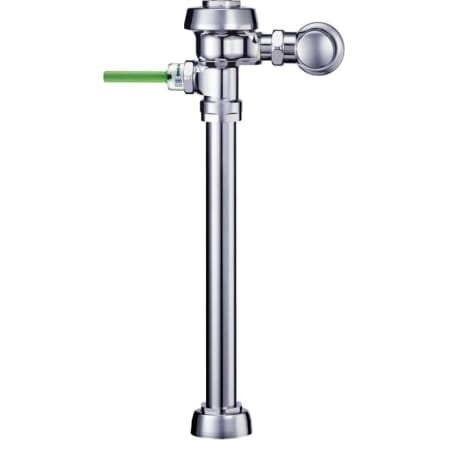

Sloan (WES-115) Dual Flush - (Down 1.6 gpf, Up 1.1 gpf) Exposed Water Closet Flushometer for floor mounted or wall hung 1-1/2" top spud bowls.

WES-115 (Model #3720300) Dual Flush - (Down 1.6 gpf, Up 1.1 gpf) Exposed Water Closet Flushometer for floor mounted or wall hung 1-1/2" top spud bowls.

Dual-Flush, Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer

Features:

• Lifting handle UP initiates reduced flush (1.1 gpf/4.2 Lpf), eliminating liquid and paper waste, saving a ½-gallon of water
• Pushing handle DOWN initiates full flush (1.6 gpf/6.0 Lpf), eliminating solid waste and paper
• Reduces water volume by up to 30% when activated UPWARDS
• Antimicrobial Coating on Handle protects against germs
• PERMEX(tm) Synthetic Rubber Diaphragm w/Dual Filtered Fixed Bypass
• Distinctive Green ADA Compliant Metal Non-Hold-Open Handle with Triple Seal Handle Packing signifies Water Conserving Device
• 1" I.P.S. Screwdriver Bak-Chek(tm) Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 1½" Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Set Screw Wall Flange
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID(tm) Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
• Includes (2) adhesive backed Metal Wall Plates etched w/Instructions

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME A112.19.2 and Military Specification V-29193.
