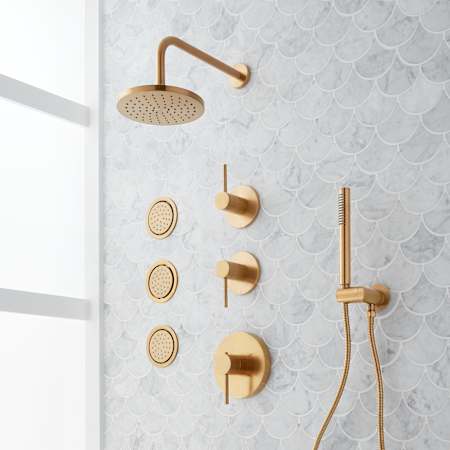

Signature Hardware Lexia Thermostatic Shower System with Shower Head, Hand Shower, Bodysprays, Shower Arm, Hose, and Valve Trim
Model: SHK483787|Item: bci4413712
This package includes the following items
Details
Transform an ordinary bathroom into a true at-home oasis with the Lexia Thermostatic Shower System. Three body sprays provide a luxurious experience while a hand shower is available for manual rinsing. Fitted with thermostatic technology, you can achieve your ideal water temperature without hassle. Smooth, simple shapes make up the design of this system, completing a full spa-like effect. Constructed of solid metal, these fixtures are corrosion-resistant and built to last, with a variety of stunning finishes to choose from.
Signature Hardware 953782 Features:
- Shower Package Includes: bodysprays, diverter, handshower, hose, shower arm, rough-in, and valve trim
- Covered under Signature Hardware's 25 year limited warranty
- Thermostatic valve trim
- 3 bodysprays included with this shower system package
- 3 lever style metal handles
- Matching hand shower with 60" hose

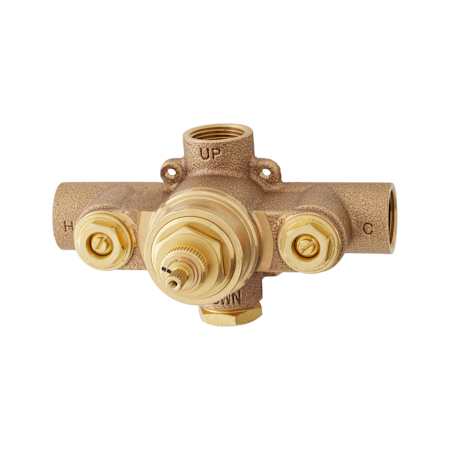

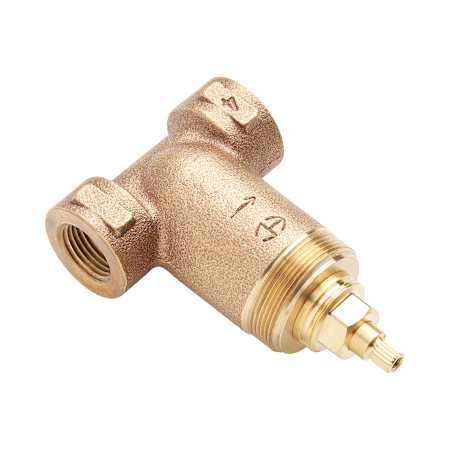

- Thermostatic rough-in valve
- High quality finish – will resist rust and corrosion through everyday use
- Thermostatic technology keeps shower temperature within 1 degree celsius
- Temperature outlet factory calibrated to 104 degrees fahrenheit and can be easily adjusted up or down to user's comfort level
- Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once
- Metal handles
- Single function shower head (full spray) with easy-clean silicone nozzles
- Single function hand shower
- 60" - 72" stretchable metal shower hose
- Adjustable angle for hand shower mount

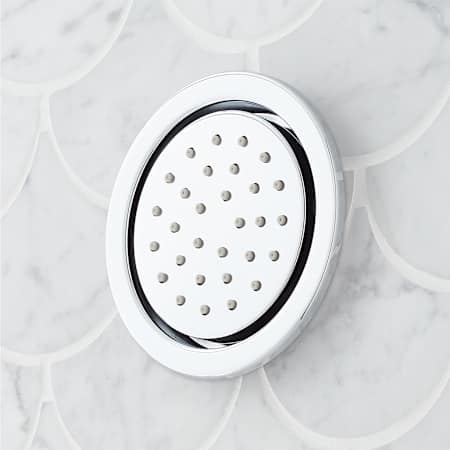

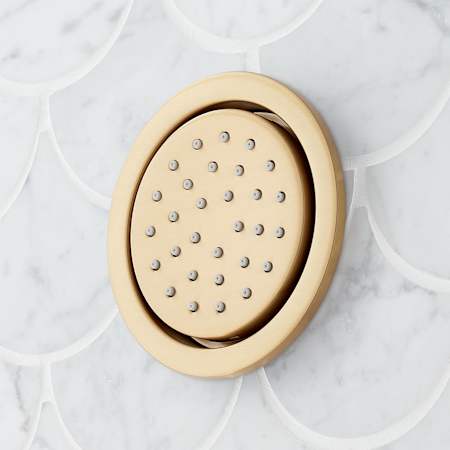

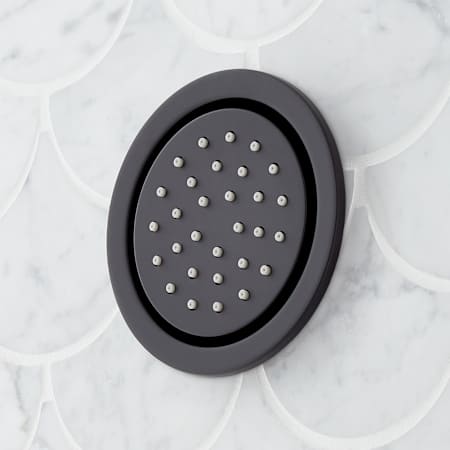

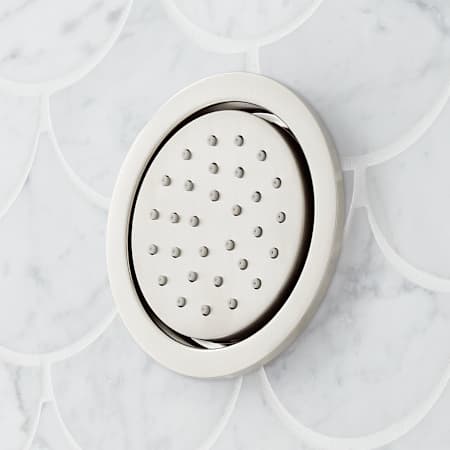

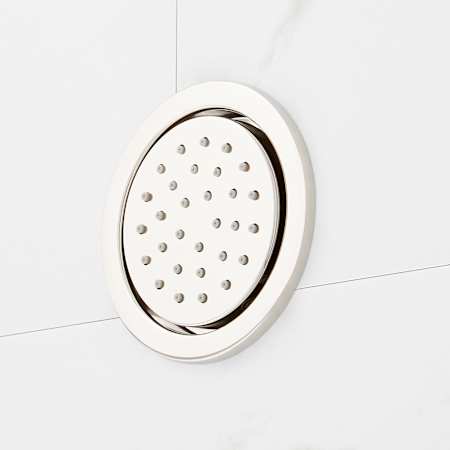

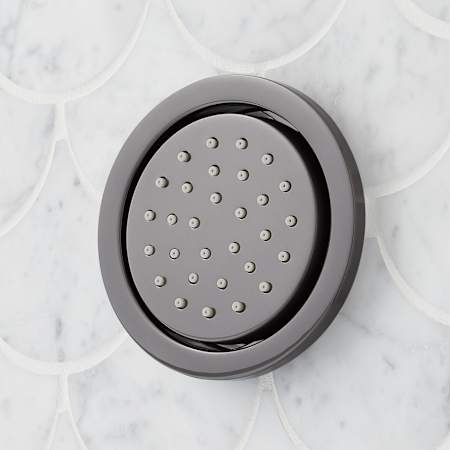

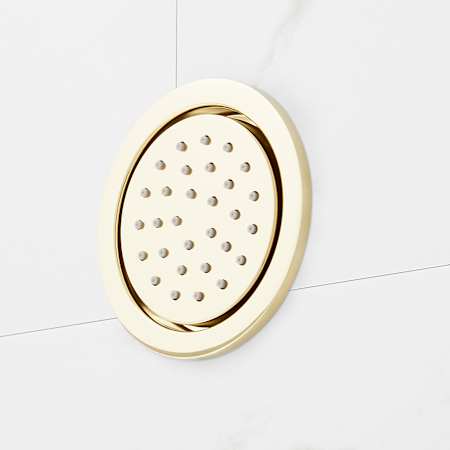

- Body spray jet swivels with a 3-9/16" surface area
- Body spray flow rate: 25 gpm (95L/min) max @ 80 psi

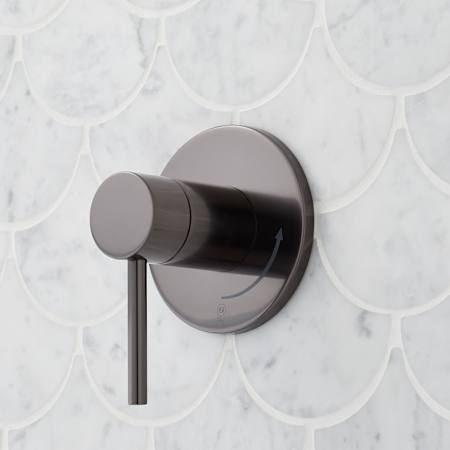

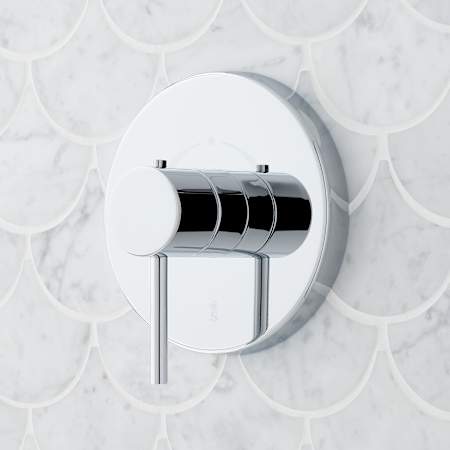

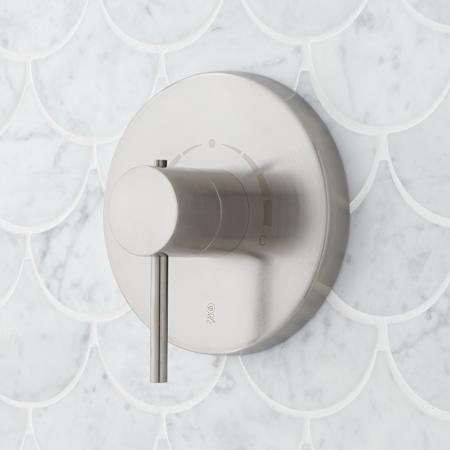

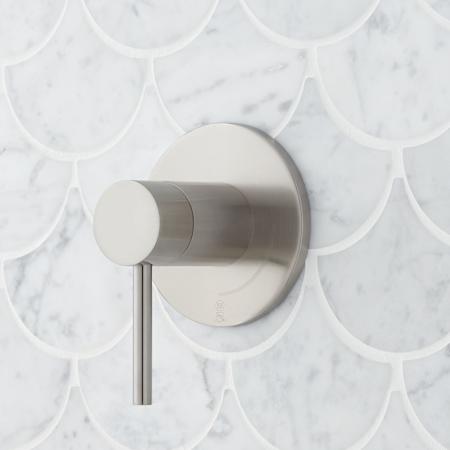

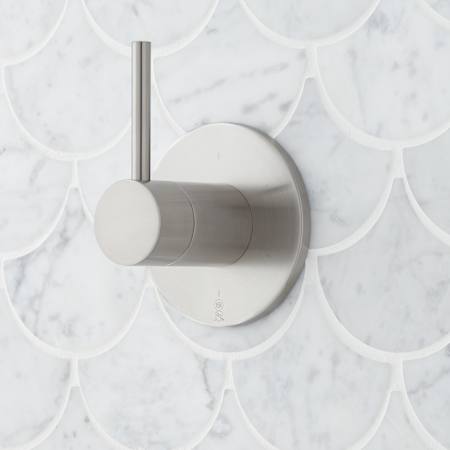

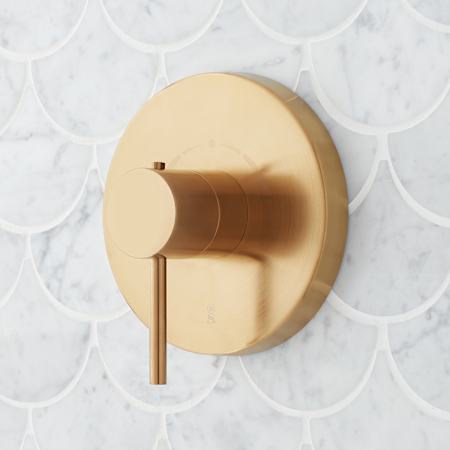

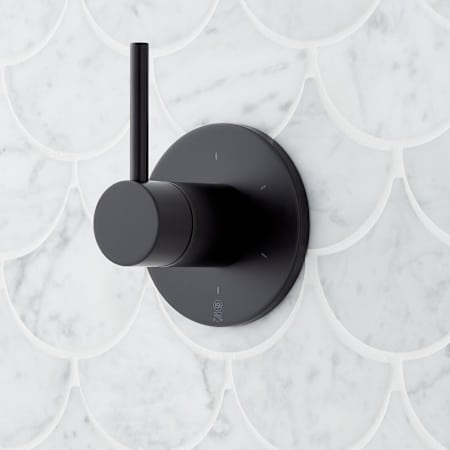

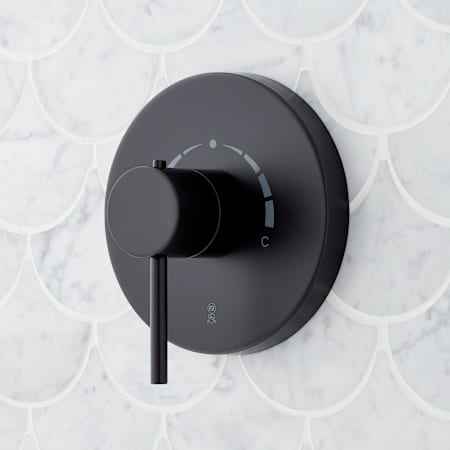

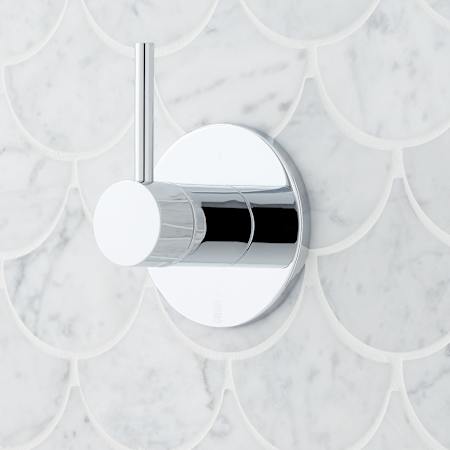

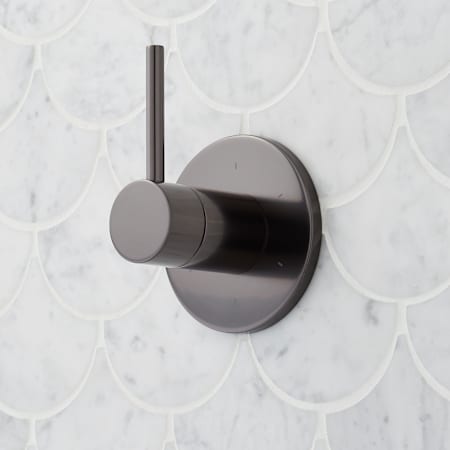

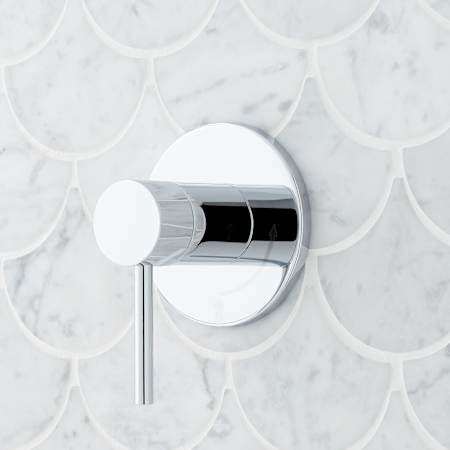

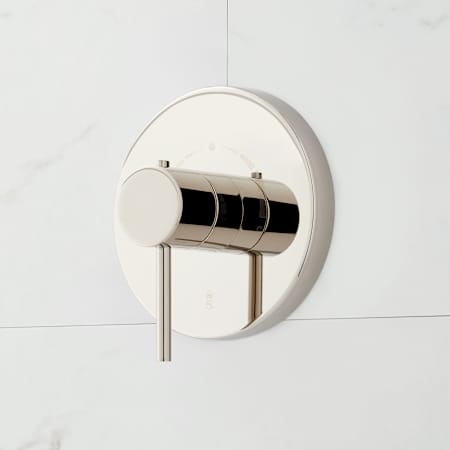

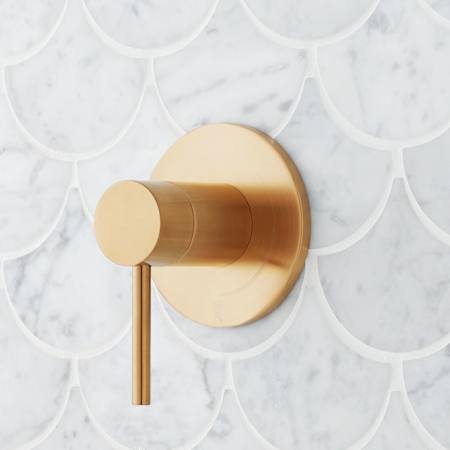

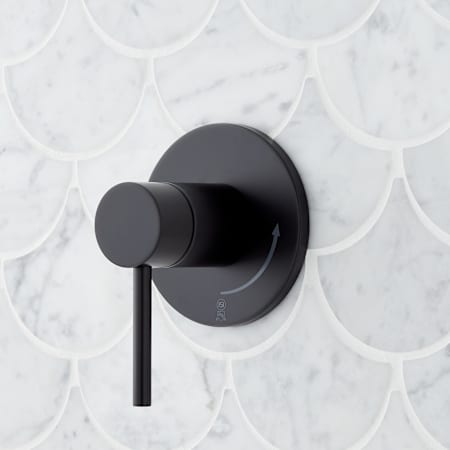

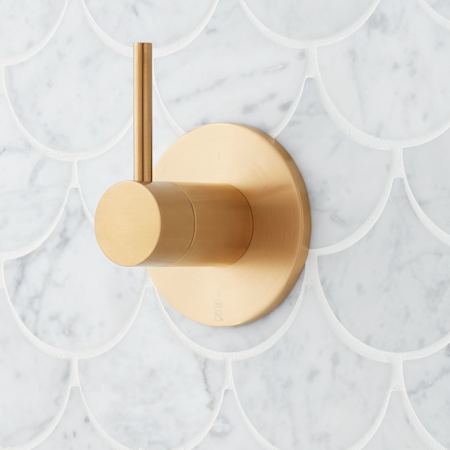

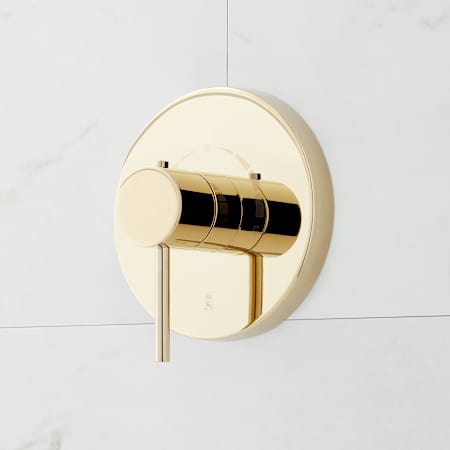

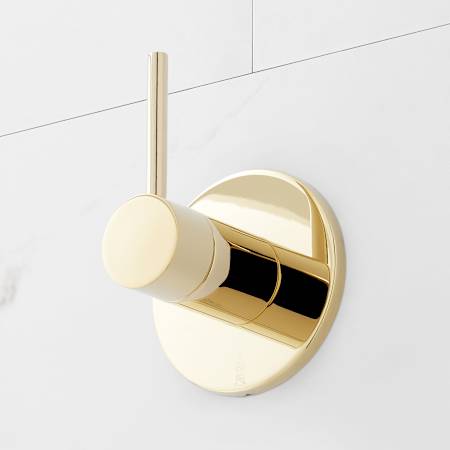

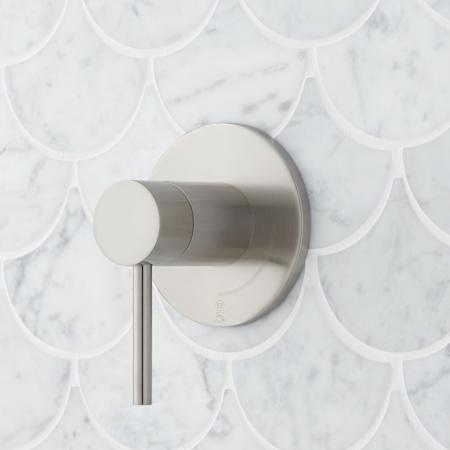

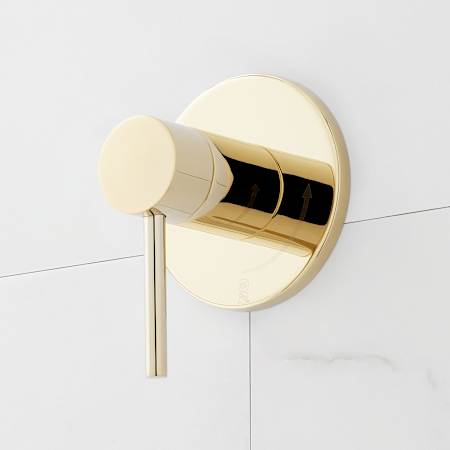

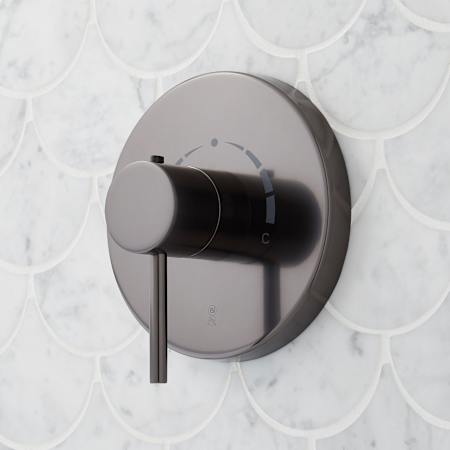

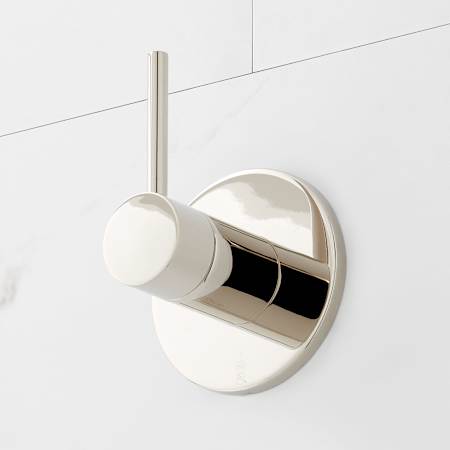

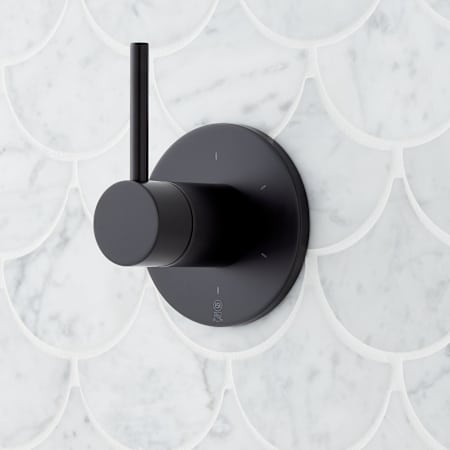

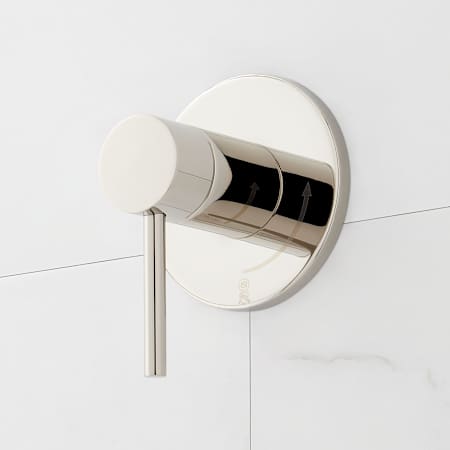

Signature Hardware 953782 Shower Valve Trim Specifications:
- Valve trim constructed of metal ensuring dependability and longevity
- Features a thermostatic valve

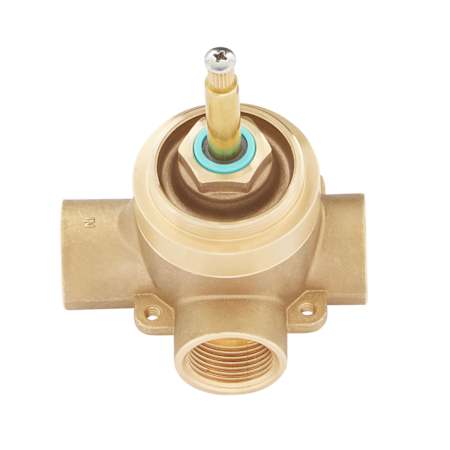

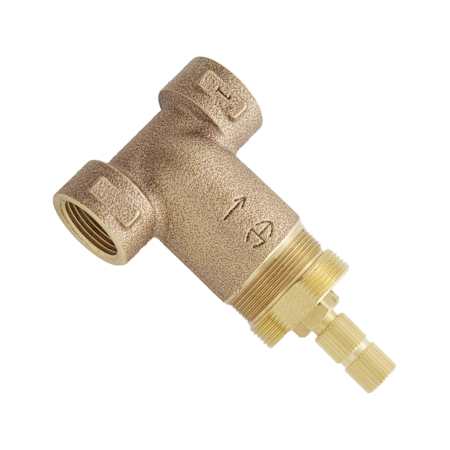

- Rough-in valve is included with this package

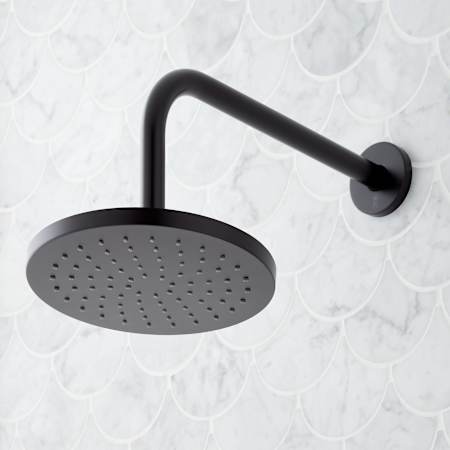

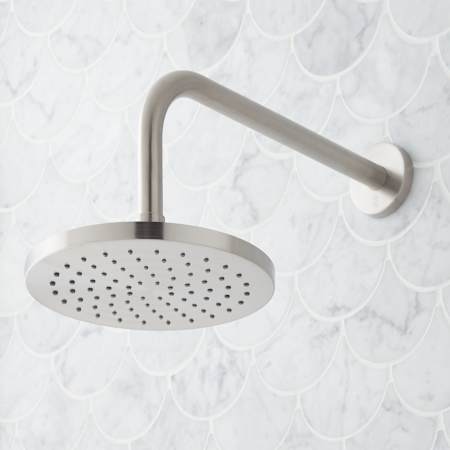

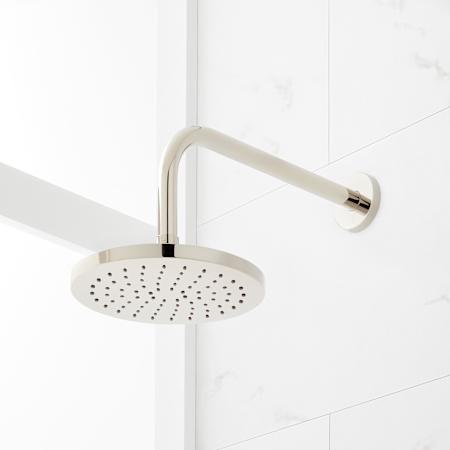

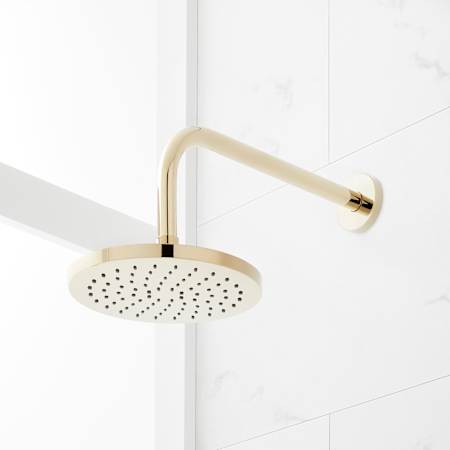

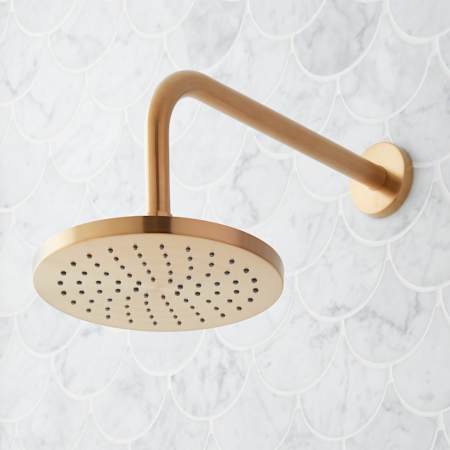

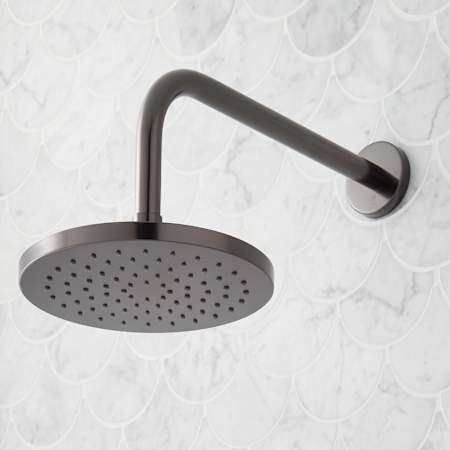

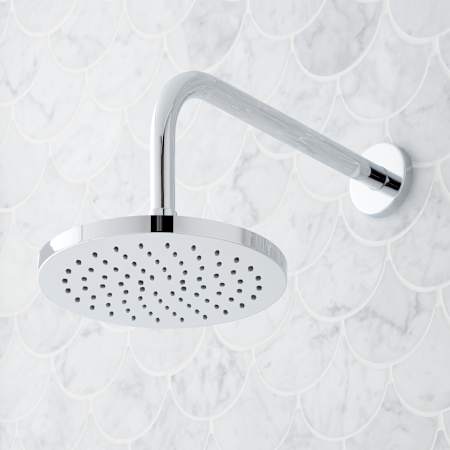

Signature Hardware 953782 Shower Head Specifications:
- Single function showerhead with rain spray pattern
- Shower Head Flow Rate: 1.8 gallons-per-minute
- Shower Arm Length: 12-3/8"

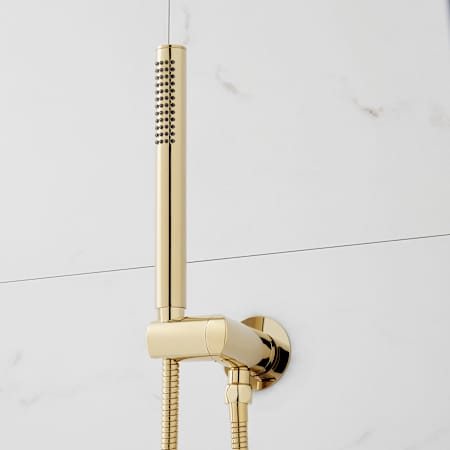

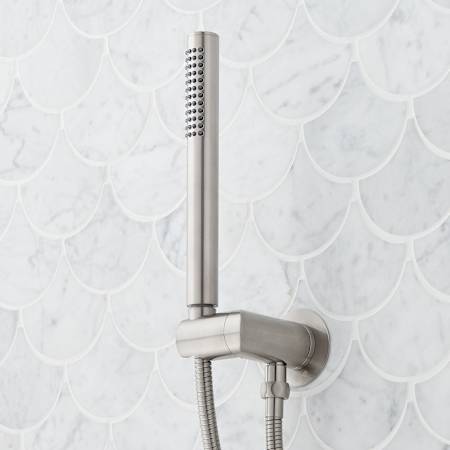

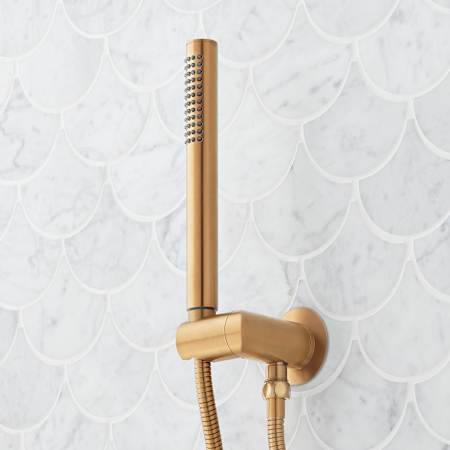

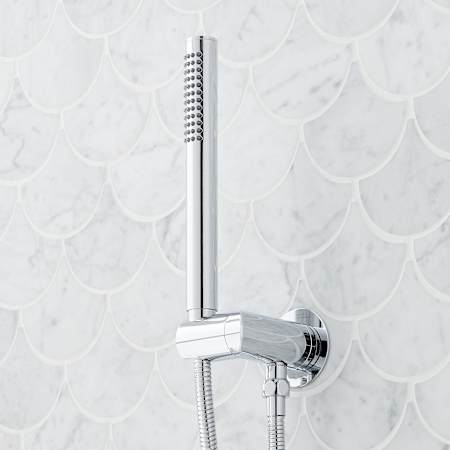

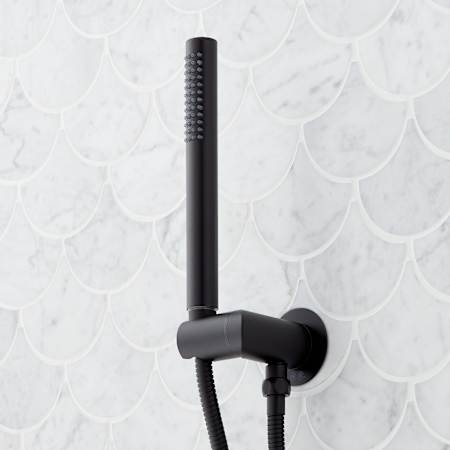

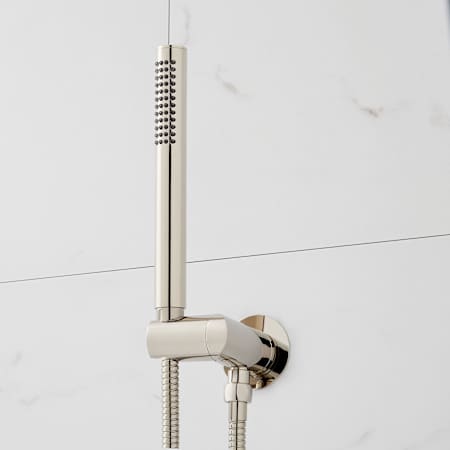

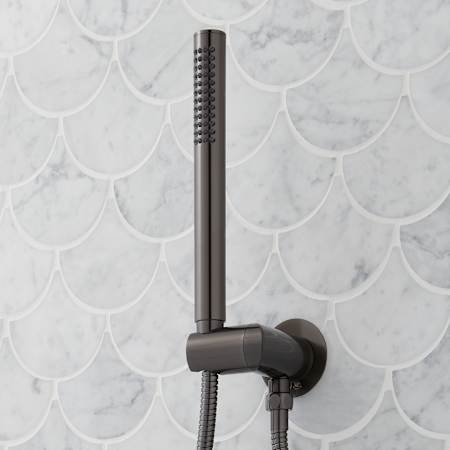

Signature Hardware 953782 Hand Shower Specifications:
- Hose Length: 60"
- Hand Shower Flow Rate: 1.8 gallons-per-minute
- Hand Shower Type: Single Function
Dimensions and Measurements
Bodyspray Flow Rate (GPM) | 2.5 |
Bodyspray Height | 4.75 in. |
Bodyspray Width | 4.75 in. |
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 60 in. |
Shower Arm Reach | 12.375 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 2.0625 in. |
Showerhead Width | 7.875 in. |
Valve Trim Height | 7.125 in. |
Valve Trim Width | 6.6875 in. |
Dimensions and Measurements
Bodyspray Flow Rate (GPM) | 2.5 |
Bodyspray Height | 4.75 in. |
Bodyspray Width | 4.75 in. |
Flow Rate (GPM) | 1.8 |
Handshower Flow Rate | 1.8 |
Hose Length | 60 in. |
Shower Arm Reach | 12.375 in. |
Showerhead Flow Rate (GPM) | 1.8 |
Showerhead Height | 2.0625 in. |
Showerhead Width | 7.875 in. |
Valve Trim Height | 7.125 in. |
Valve Trim Width | 6.6875 in. |
Included Components
Bodysprays Included | Yes |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Valve Included | Yes |
Valve Trim Included | Yes |
Volume Control | Yes |
Wall Supply Included | Yes |
Included Components
Bodysprays Included | Yes |
Diverter Included | Yes |
Handles Included | Yes |
Handshower Included | Yes |
Hose Included | Yes |
Shower Arm Included | Yes |
Shower Head Included | Yes |
Valve Included | Yes |
Valve Trim Included | Yes |
Volume Control | Yes |
Wall Supply Included | Yes |
Characteristics and Features
Control Type | Lever |
Diverter Location | Wall Mounted |
Faucet Type | Shower System |
Handle Material | Metal |
Handle Style | Lever |
Handshower | Single Function |
Installation Type | Wall Mounted |
Material | Metal |
Number Of Bodysprays | 3 |
Number Of Handles | 3 |
Scald Guard | Yes |
Showerhead | Single Function |
Showerhead Material | ABS |
Showerhead Shape | Round |
Spray Pattern | Rain |
Spray Settings | 1 |
Theme | Modern |
Valve Trim Material | Metal |
Valve Type | Thermostatic |
Water Efficient | No |
Characteristics and Features
Control Type | Lever |
Diverter Location | Wall Mounted |
Faucet Type | Shower System |
Handle Material | Metal |
Handle Style | Lever |
Handshower | Single Function |
Installation Type | Wall Mounted |
Material | Metal |
Number Of Bodysprays | 3 |
Number Of Handles | 3 |
Scald Guard | Yes |
Showerhead | Single Function |
Showerhead Material | ABS |
Showerhead Shape | Round |
Spray Pattern | Rain |
Spray Settings | 1 |
Theme | Modern |
Valve Trim Material | Metal |
Valve Type | Thermostatic |
Water Efficient | No |
Warranty and Product Information
ASME Code | A112.18.1 |
ASSE Code | 1016 |
CA Drought Compliant | No |
Certifications | AMSE, ANSI, ASSE, CSA, UPC |
Collection | Lexia |
Country Of Origin | China |
CSA Code | B125.1 |
Manufacturer Warranty | 25 Year Limited |
Warranty and Product Information
ASME Code | A112.18.1 |
ASSE Code | 1016 |
CA Drought Compliant | No |
Certifications | AMSE, ANSI, ASSE, CSA, UPC |
Collection | Lexia |
Country Of Origin | China |
CSA Code | B125.1 |
Manufacturer Warranty | 25 Year Limited |
