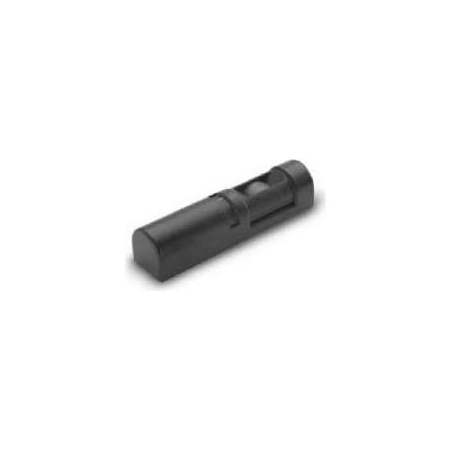

Schlage Scan II Passive Infrared Motion Sensor
Model: SCANIIB|Item: bci2695349
$535.60
Finish: Black -
Special Order
Details
Features:
- Designed specifically for request-to-exit applications
- Latch time is adjustable up to 60 seconds
- Area coverage up to 8' by 10'
- Made of high impact ABS plastic
- Pattern pointability is +/- 14 degrees
- External activation LED included
Specifications:
- Height: 1-1/2"
- Width: 6-1/4"
- Depth: 1-1/2"
- UL Listed: Yes
- Operating Temperature: -20° to 120°F
- Voltage: 12/24
- Amperage: 26mA
Dimensions and Measurements
Depth | 1.5 in. |
Height | 1.5 in. |
Product Weight | 2 lbs. |
Width | 6.25 in. |
Dimensions and Measurements
Depth | 1.5 in. |
Height | 1.5 in. |
Product Weight | 2 lbs. |
Width | 6.25 in. |
Characteristics and Features
Configuration | Motion Sensor |
Material | Plastic |
Characteristics and Features
Configuration | Motion Sensor |
Material | Plastic |
Electrical and Operational Information
Voltage | 12, 24 |
Electrical and Operational Information
Voltage | 12, 24 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
