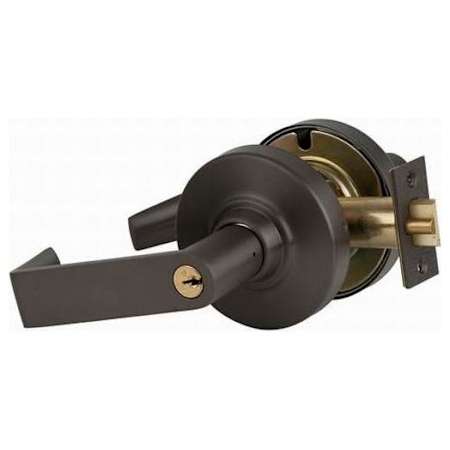

Schlage Rhodes Heavy Duty Vestibule with Vandlgard Door Lever Set
Model: ND93PRHO613|Item: bci494823
from theND-Series Collection
$708.27
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
Oil Rubbed Bronze
Details
Vestibule Lever Lock from the Rhodes Collection
Latch retracted by key from outside when outside lever is disengaged by key in inside lever. Inside lever is always unlocked. Vandlgard is designed to disengage outside spindle from latch when in locked position.
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder: Schlage C Keyway 6 Pin
- Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
Dimensions and Measurements
Backset | 2-3/8", 3-3/4", 5" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.875 in. |
Dimensions and Measurements
Backset | 2-3/8", 3-3/4", 5" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.875 in. |
Included Components
Clutch Mechanism | Yes |
Interchangeable Core | No |
Included Components
Clutch Mechanism | Yes |
Interchangeable Core | No |
Characteristics and Features
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Single Cylinder, Keyed Entry, Vestibule |
Handing | Left, Right |
Handle Design | Rhodes |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Lever Shape | Straight |
Mortise | No |
Panic Proof | Yes |
Rosette Shape | Round |
Style | Commercial |
Theme | Modern |
Characteristics and Features
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Single Cylinder, Keyed Entry, Vestibule |
Handing | Left, Right |
Handle Design | Rhodes |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Lever Shape | Straight |
Mortise | No |
Panic Proof | Yes |
Rosette Shape | Round |
Style | Commercial |
Theme | Modern |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | UL |
Collection | Rhodes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | UL |
Collection | Rhodes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
