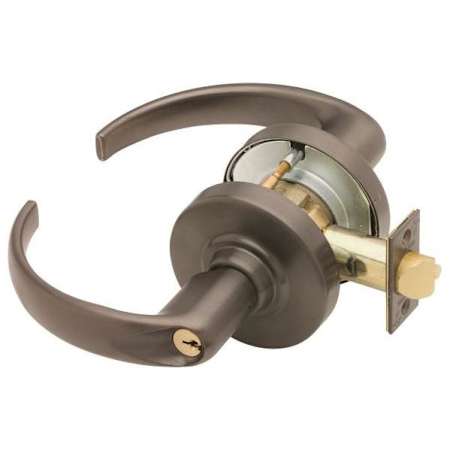

Schlage Sparta Heavy Duty Entrance / Office with Vandlgard Door Lever Set
Model: ND91PSPA613|Item: bci494764
from theND-Series Collection
$607.37
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
Oil Rubbed Bronze
Details
Entrance / Office Lever Lock from the Sparta Collection
- Push-button locking.
- Push-button disengages outside lever until unlocked with key or by turning inside lever.
- Vandlgard is designed to disengage outside spindle from latch when in locked condition.
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder: Schlage C Keyway 6 Pin
- Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.9375 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.9375 in. |
Included Components
Clutch Mechanism | Yes |
Interchangeable Core | No |
Included Components
Clutch Mechanism | Yes |
Interchangeable Core | No |
Characteristics and Features
Cylinder | 6 Pin |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry, Office |
Handing | Left, Reversible, Right |
Handle Design | Sparta |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Latch Faceplate | Square Corner |
Lever Shape | Straight |
Mortise | No |
Panic Proof | Yes |
Rosette Shape | Round |
Style | Commercial |
Theme | Transitional |
Characteristics and Features
Cylinder | 6 Pin |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry, Office |
Handing | Left, Reversible, Right |
Handle Design | Sparta |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Latch Faceplate | Square Corner |
Lever Shape | Straight |
Mortise | No |
Panic Proof | Yes |
Rosette Shape | Round |
Style | Commercial |
Theme | Transitional |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Collection | Sparta |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Collection | Sparta |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
