Schlage
Oil Rubbed Bronze

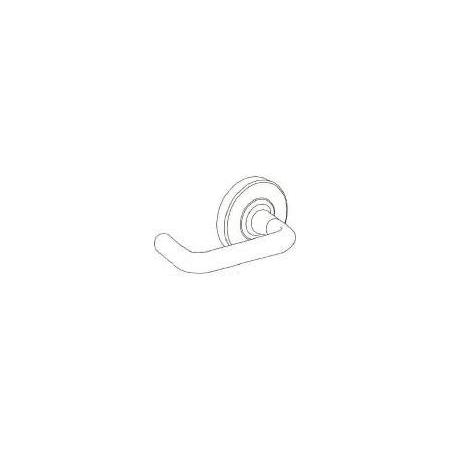

Schlage Tubular Heavy Duty Faculty Restroom Door Lever Set

Model: ND85PTLR613
|
Item: bci494736

$662.41
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

Faculty Restroom Lever Lock from the Tubular Collection

  • Outside lever fixed.
  • Entrance by key only.
  • Push-button in inside lever activates visual occupancy indicator, allowing only emergency master key to operate.
  • Turning inside lever or closing door releases visual occupancy indicator.
  • Rotation of inside spanner-button provides lock-out feature by keeping indicator thrown.
  • Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
  • Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
  • Cylinder: Schlage C Keyway 6 Pin
  • Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
Additional Schlage Links

Dimensions and Measurements

Backset
2-3/4", 2-3/8", 3-3/4"
Cross Bore
2-1/8"
Door Thickness
1-7/8", 2"
Edge Bore
1"
Handle Length
4.9375 in.

Dimensions and Measurements

Backset
2-3/4", 2-3/8", 3-3/4"
Cross Bore
2-1/8"
Door Thickness
1-7/8", 2"
Edge Bore
1"
Handle Length
4.9375 in.

Included Components

Interchangeable Core
No

Included Components

Interchangeable Core
No

Characteristics and Features

Concealed Screws
Yes
Cylinder
6 Pin Schlage C, 6 Pin
Cylinder Type
Single Cylinder
Function
Faculty Restroom, Keyed Entry, Single Cylinder
Handing
Left, Reversible, Right
Handle Material
Metal
Keyway
C
Lever Shape
Round, Straight
Mortise
No
Style
Commercial
Theme
Modern

Characteristics and Features

Concealed Screws
Yes
Cylinder
6 Pin Schlage C, 6 Pin
Cylinder Type
Single Cylinder
Function
Faculty Restroom, Keyed Entry, Single Cylinder
Handing
Left, Reversible, Right
Handle Material
Metal
Keyway
C
Lever Shape
Round, Straight
Mortise
No
Style
Commercial
Theme
Modern

Warranty and Product Information

ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI
Collection
Tubular
Fire Rated
Yes
Series
ND-Series

Warranty and Product Information

ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI
Collection
Tubular
Fire Rated
Yes
Series
ND-Series
