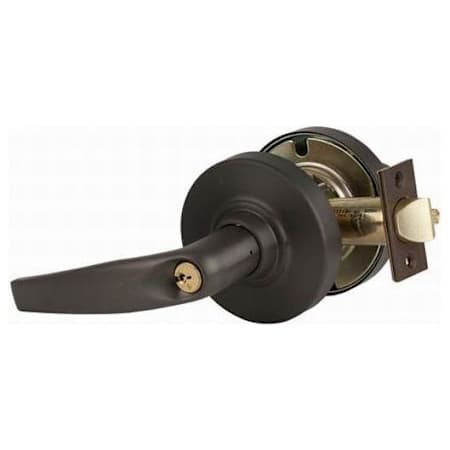

Schlage Athens Heavy Duty Institution Door Lever Set
Model: ND82PATH613|Item: bci494661
from theND-Series Collection
$659.13
Finish: Oil Rubbed Bronze -
8 In Stock
Finish: Oil Rubbed Bronze -
8 In Stock
Oil Rubbed Bronze
Details
Institution Lever Lock from the Athens Collection
- Both levers fixed.
- Entrance by key in either lever.
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder: Schlage C Keyway 6 Pin
- Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
- Caution: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times or emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-7/8", 2-1/8" |
Handle Length | 4.5625 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-7/8", 2-1/8" |
Handle Length | 4.5625 in. |
Characteristics and Features
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Single Cylinder, Asylum, Keyed Entry, Institutional |
Handing | Left, Reversible, Right |
Handle Design | Athens |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Lever Shape | Straight |
Mortise | No |
Panic Proof | No |
Style | Commercial |
Theme | Transitional |
Characteristics and Features
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder, Double Cylinder |
Function | Single Cylinder, Asylum, Keyed Entry, Institutional |
Handing | Left, Reversible, Right |
Handle Design | Athens |
Handle Material | Metal |
Interconnected | No |
Keyway | C123, C |
Lever Shape | Straight |
Mortise | No |
Panic Proof | No |
Style | Commercial |
Theme | Transitional |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | Athens |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | Athens |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
