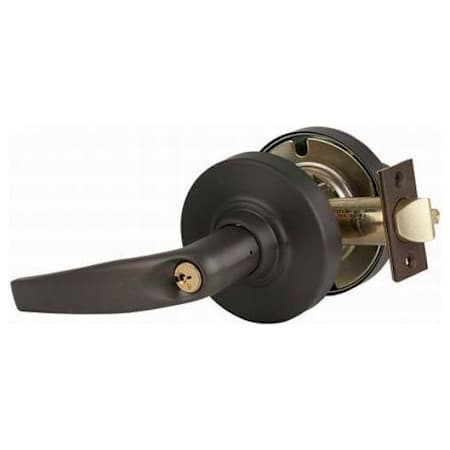

Schlage Athens Commercial ANSI Grade 1 Vestibule Door Lever Set - Small Format Core Not Included

Single Cylinder Keyed Vestibule Function: This lock is opened by a key from the outside when it has been locked by a key on the inside. The inside lever is always unlocked and is always free for immediate egress. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Small Format Interchangeable Core (SFIC) is not included - options are provided for Schlage C keyway
• Meets ANSI/BHMA Certification A156.2/Grade 1
• All metal construction for durability
• Left or right handing allows versatile application
• This product is compliant with ADA standards
• Panic Proof: Yes
• Fire Rated: Yes
• This lever and trim have concealed screws

Product Technologies:

Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.

Specifications:

• Lever Length: 4-9/16"
• Handing: Reversible (left or right)
• Backset: 2-3/4", 2-3/8", 3-3/4", 5"
• Door Thickness: 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8"
• Handle Design: Athens
• Cylinder: Schlage 6-Pin C Keyway
