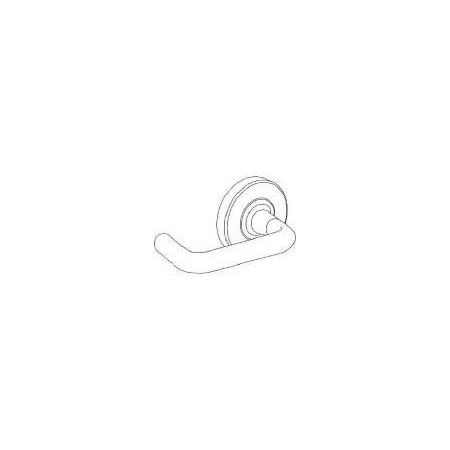

Schlage Tubular Heavy Duty Entrance Door Lever Set
Model: ND53PTLR613|Item: bci494400
$556.92
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
Oil Rubbed Bronze
Details
Push Button Entrance Lock from the Tubular Collection
- Turn/push-button locking; pushing and turning button locks outside lever, requiring use of key until button is manually unlocked.
- Push-button locking; pushing button locks outside lever until unlocked by key or by turning inside lever.
- Latch: 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw
- Strike: 1/4" x 4 7/8", ANSI, Square corner, no box
- Cylinder: Schlage C Keyway 6 Pin
- Door Thickness: Standard Lock Functions: 1 5/8" - 2", Vandlgard Lock Function: 1 5/8" - 1 7/8"
Manufacturer Resources
Installation GuideDimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.9375 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", 3-3/4", 5" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2", 2-1/8" |
Edge Bore | 1" |
Handle Length | 4.9375 in. |
Included Components
Interchangeable Core | No |
Included Components
Interchangeable Core | No |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry, Entrance |
Handing | Reversible, Right |
Handle Design | Tubular |
Handle Material | Metal |
Interconnected | No |
Keyway | C, C123 |
Lever Shape | Round, Straight |
Mortise | No |
Panic Proof | Yes |
Style | Commercial |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 6 Pin Schlage C, 6 Pin |
Cylinder Type | Single Cylinder |
Function | Single Cylinder, Keyed Entry, Entrance |
Handing | Reversible, Right |
Handle Design | Tubular |
Handle Material | Metal |
Interconnected | No |
Keyway | C, C123 |
Lever Shape | Round, Straight |
Mortise | No |
Panic Proof | Yes |
Style | Commercial |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
Certifications | ANSI, UL |
Collection | Tubular |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.2 |
Approved for Commercial Use | Yes |
Certifications | ANSI, UL |
Collection | Tubular |
Fire Rated | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ND-Series |
