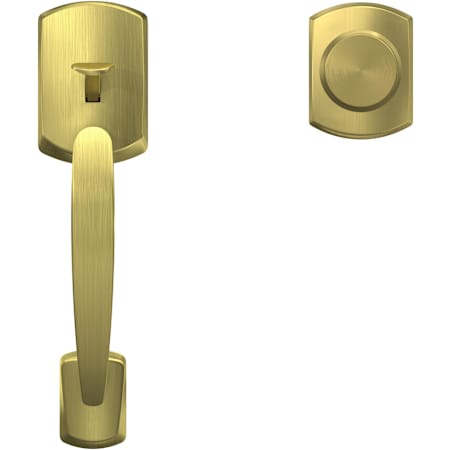

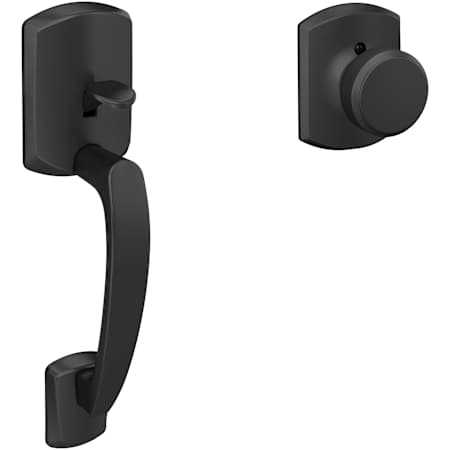

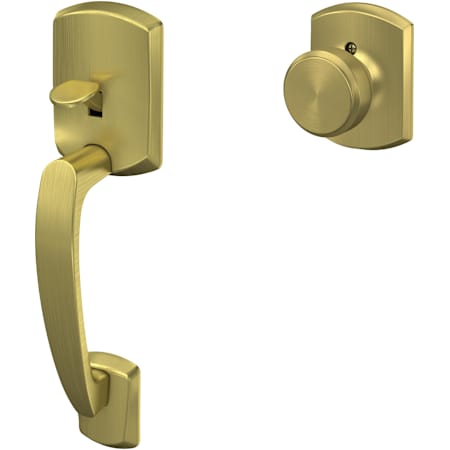

Schlage Greenwich Lower Handle Set with Bowery Interior Knob From the FE-Series
Model: FE285GRW622BWEGRW|Item: bci4869176


Details
Handleset (Lower Half): This is the lower half of a keyed entry set and is meant to be paired with a deadbolt. Choose from the standard single cylinder turn-key deadbolt or go with an electronic deadbolt that adds a variety of safety and convenience features.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security requirements
- Constructed of high quality materials for durability and dependability
- Installs easily with all necessary mounting hardware included

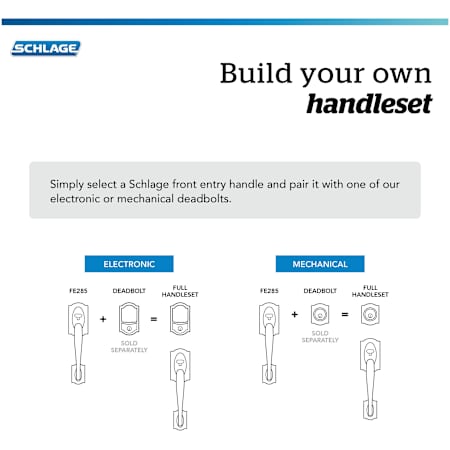

- Pair with a Schlage deadbolt for a complete set
- Covered by Schlage's limited lifetime manufacturer warranty
Featured Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.

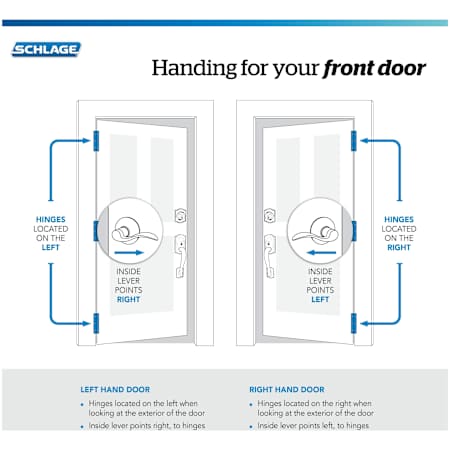

These knobs are unhanded and field reversible allowing this knobset to be used for both right- and left-handed applications with ease and eliminating any chance of getting a wrong handed product.
A Lifetime Mechanical and Finish Warranty gives you the peace of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish, and it is expected to patina over time).
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 1"
- Door Thickness: 1-1/2" to 1-7/8"
- Handing: Reversible Left or Right
- Latch Faceplate: Drive-In or Round Corner
- Mounting Center to Center: 5-1/2"

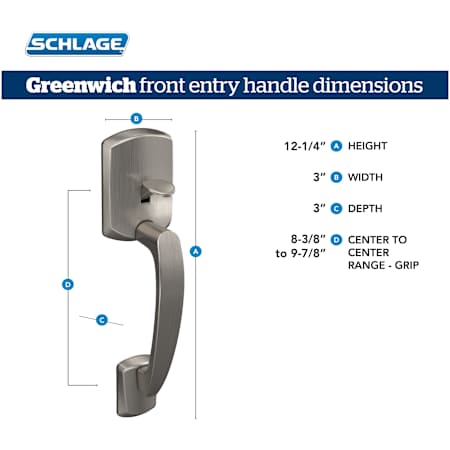

- Overall Height: 12-1/4"
- Handle Projection: 3"
- Trim Height: 12-1/4"
- Trim Width: 3"
- Interior Handle Height: 2-1/8"
- Interior Handle Width: 2-1/8"
- Interior Handle Projection: 2-3/8"
- Interior Trim Height: 3-3/4"
- Interior Trim Width: 2-7/8"
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-5/8", 1-7/8" |
Edge Bore | 1" |
Handle Projection | 3 in. |
Interior Handle Height | 2.125 in. |
Interior Handle Projection | 2.375 in. |
Interior Handle Width | 2.125 in. |
Interior Trim Height | 3.75 in. |
Interior Trim Width | 2.875 in. |
Overall Height | 12.25 in. |
Product Weight | 3.02 lbs. |
Trim Height | 12.25 in. |
Trim Width | 3 in. |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Center to Center | 5.5 in. |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-5/8", 1-7/8" |
Edge Bore | 1" |
Handle Projection | 3 in. |
Interior Handle Height | 2.125 in. |
Interior Handle Projection | 2.375 in. |
Interior Handle Width | 2.125 in. |
Interior Trim Height | 3.75 in. |
Interior Trim Width | 2.875 in. |
Overall Height | 12.25 in. |
Product Weight | 3.02 lbs. |
Trim Height | 12.25 in. |
Trim Width | 3 in. |
Included Components
Interior Included | Yes |
Included Components
Interior Included | Yes |
Characteristics and Features

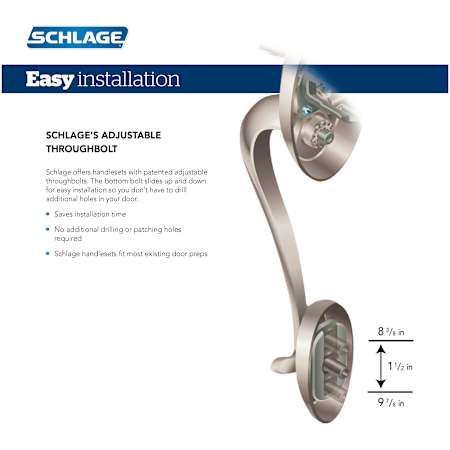

Adjustable Throughbolt | Yes |
Handing | Left, Reversible, Right |
Handle Design | Bowery |
Handle Material | Metal |
Handle Style | Grip |
Handleset Design | Greenwich |
Interior Handle Style | Knob |
Latch Faceplate | Drive-In, Round Corner |
Material | Zinc |
Mount | Sectional |
Solid Construction | Solid Brass |
Theme | Modern |
Trim Design | Greenwich |
Characteristics and Features
Adjustable Throughbolt | Yes |
Handing | Left, Reversible, Right |
Handle Design | Bowery |
Handle Material | Metal |
Handle Style | Grip |
Handleset Design | Greenwich |
Interior Handle Style | Knob |
Latch Faceplate | Drive-In, Round Corner |
Material | Zinc |
Mount | Sectional |
Solid Construction | Solid Brass |
Theme | Modern |
Trim Design | Greenwich |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, BHMA |
Collection | F-Series |
Country Of Origin | Mexico |
Manufacturer Warranty | Limited Lifetime |
Series | Bowery, Greenwich |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.2 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, BHMA |
Collection | F-Series |
Country Of Origin | Mexico |
Manufacturer Warranty | Limited Lifetime |
Series | Bowery, Greenwich |
