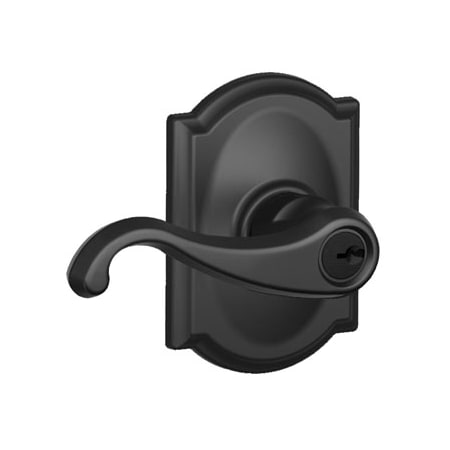

Schlage Callington Left Handed Single Cylinder Keyed Entry Storeroom Door Lever Set with Camelot Trim
Model: F80CLT622CAMLH|Item: bci3072871
Details
Storeroom Function: Storeroom door hardware features an outside handle that is always locked while the inside handle is always unlocked and free turning. Entry from exterior is only possible via key.
Features:
- Meets ANSI/BHMA Grade 2 security standards
- Constructed from the finest materials for durability along with quality
- This lever set is intended for left handing only
- Guaranteed Lifetime Mechanical and Finish Warranty for the original purchaser
- This product is ADA compliant
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
A Lifetime Mechanical and Finish Warranty gives you the piece of mind that this product will be looking good and functioning smoothly for as long as you own it. (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time).
Specifications:
- Backset: Adjustable 2-3/8" or 2-3/4"
- Cross Bore: 2-1/8"
- Edge Bore: 7/8" or 1"
- Door Thickness: 1-3/8" to 1-3/4"
- Handing: Left
- Lever Length: 4-1/2"
- Projection: 2-1/4"
- Latch Faceplate: Round Corner, Square Corner or Drive-In
- Cylinder: 5 Pin Schlage C
Dimensions and Measurements
Backset | 2-3/8", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/8", 1-1/2" |
Edge Bore | 7/8" |
Handle Length | 4.5 in. |
Handle Projection | 2.25 in. |
Dimensions and Measurements
Backset | 2-3/8", 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-3/8", 1-1/2" |
Edge Bore | 7/8" |
Handle Length | 4.5 in. |
Handle Projection | 2.25 in. |
Characteristics and Features
Cylinder | 5 Pin Schlage C |
Function | Keyed Entry, Storeroom |
Handing | Left |
Handle Material | Metal |
Keyway | C |
Latch Faceplate | Round Corner, Square Corner |
Lever Shape | Scroll |
Rosette Shape | Arch |
Theme | Traditional |
Trim Design | Camelot |
Characteristics and Features
Cylinder | 5 Pin Schlage C |
Function | Keyed Entry, Storeroom |
Handing | Left |
Handle Material | Metal |
Keyway | C |
Latch Faceplate | Round Corner, Square Corner |
Lever Shape | Scroll |
Rosette Shape | Arch |
Theme | Traditional |
Trim Design | Camelot |
Warranty and Product Information
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, UL |
Collection | Callington |
Manufacturer Warranty | Lifetime Finish, Limited Lifetime Mechanical |
Series | F-Series |
Warranty and Product Information
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI, UL |
Collection | Callington |
Manufacturer Warranty | Lifetime Finish, Limited Lifetime Mechanical |
Series | F-Series |
