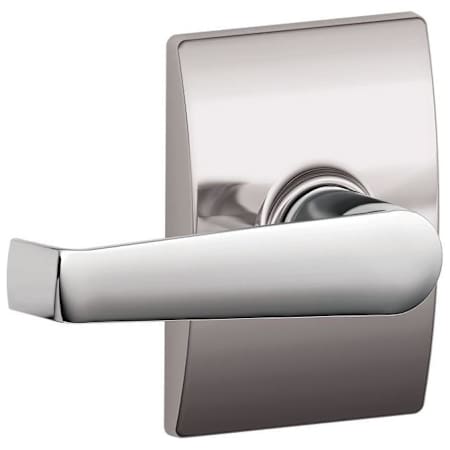

Schlage Elan Passage Door Lever Set with the Decorative Century Trim
Model: F10ELA625CEN|Item: bci1793253
Details
Schlage F10-ELA-CEN Passage Elan Door Leverset with the Decorative Century Rose
For over 90 years, Schlage has been making homes more stylish and secure with the best door locks and door hardware. Today the Schlage family of products also includes the very best in electronic locks, keyless door locks, and home security. Let Schlage's hardware and security solutions protect and enhance the things that matter most to you.
The geometric shape of the Elan lever is contemporary and easy to operate. A Passage Door Leverset is a Non-locking interior set for use on hall or closet doors. This Passage set includes two levers (one for each side of the door), two decorative rosettes, the latch, strike plates, faceplates and all required mounting screws.
- Includes 1" x 2-1/4" Round Corner Faceplate (1/4" radius corners) and a Circular Drive-In Plate
- 7/8" Housing Diameter
- 1/2" Throw
- Strike Plate: 1-5/8" x 2-1/4" Round Corner Full Lip Strike Plate Included
- Dual backset latch included: fits either 2-3/8” or 2-3/4” backsets
- Accommodates Door Thicknesses between 1-3/8” and 1-3/4”
- Lifetime Mechanical and Finish Warranty (Finish warranty does not include Oil Rubbed Bronze because it is a living finish and will patina over time)
- Solid zinc die-cast rose construction (Excluding the Andover Rose which is a stamped metal construction)
- ANSI Grade 2
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Dimensions and Measurements
Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
Edge Bore | 7/8" |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Elan |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Straight |
Rosette Shape | Rectangle |
Style | Contemporary / Modern |
Theme | Modern |
Trim Design | Century |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Left, Reversible, Right |
Handle Design | Elan |
Handle Material | Metal |
Latch Faceplate | Drive-In, Round Corner |
Lever Shape | Straight |
Rosette Shape | Rectangle |
Style | Contemporary / Modern |
Theme | Modern |
Trim Design | Century |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Century, Decorative Collection, Elan |
Series | Decorative Collection, F-Series |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.5 |
Approved for Commercial Use | No |
BHMA Certification | Grade 2 |
Certifications | ANSI |
Collection | Century, Decorative Collection, Elan |
Series | Decorative Collection, F-Series |
