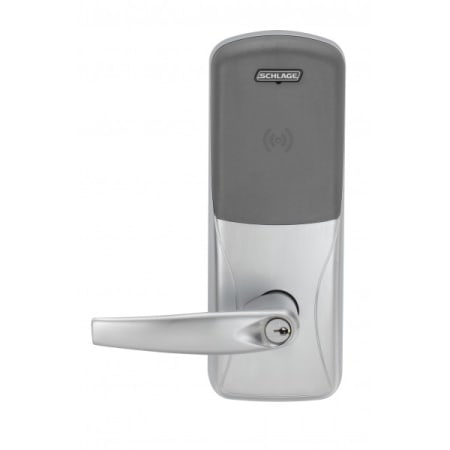

Schlage CO-Series Commercial Electronic Cylindrical Lock with Proximity and Athens Lever Compatible with Exit Bars

Compatibility: The CO-Series was designed to easily integrate into your facility. It can work in conjunction with Schlage and Locknetics electronic locks and offers expanded cylinder, exit device, and credential compatibility. The CO-Series is compatible with many different brands and credential technologies that include but are not limited to Schlage, XceedID, and more. See Features below for Exit Device Compatibility.

In Classroom application, a toggle credential can be used to put the lock into a "locked" or "unlocked" state. In a storeroom application, the lock unlocks when a credential is presented and relocks automatically. All functions allow for free egress.

Features:

• Standalone, offline, computer or manually programmable lock
• User rights stored on the lock
• ANSI A156.25 / BHMA Grade 1
• Mechanical key override is standard and compatible with multiple cylinder types
• Up to a two year battery life with standard off the shelf AA batteries, provides low battery warning
• Exit trim designed to work with the following Exit Device series:
  • Von Duprin 98 / 99 and 98 / 99 XP Rim and Concealed Vertical Rod
  • Von Duprin 22 / 22F
  • Falcon 25
  • Corbin Russwin 5000M
  • Precision 21 (Rim 2100 converts to 21 with Precision's BP21 kit)
  • Yale 7000
  • Dorma 9300
  • Sargent 80
• Schlage key-in-lever 6 pin cylinder

Specifications:

• Maximum Users: Up to 2000 (depending on access control software)
• Credential Verification Time: Less Than 1 Second
• Operating Temperature - Exterior: -31 to 151F (-35 to 66C)
• Operating Temperature - Interior: 32 to 120F (0 to 49C) due to battery
• Operating Humidity: 0 - 100% condensing
• Max Current Requirement: Up to 250 mA
• Exterior Dimensions:
  • Height: 9.46"
  • Width: 3.44"
  • Projection: 3.67"
• Door Thickness: 1-3/4" to 2-3/4"
• Backset Options: 2-3/8", 2-3/4", 3-3/4", 5"
• Strike: 4-7/8" x 1-1/4" Square Corner T Strike with 1-3/16" Curved Lip
• Latch: 1-1/8" x 2-1/4" Square Corner Faceplate, 1/2" Throw
