Metalbest RV 7" Type B Gas Vent Firestop Spacer
Model: 107461|Item: bci1068984
Details

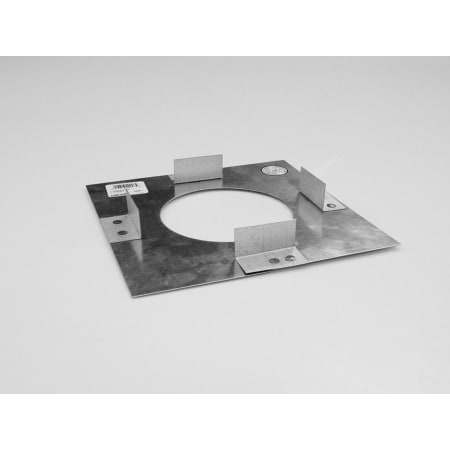

7" Type B Gas Vent Firestop Spacer from the RV Collection
This spacer is required when penetrating combustible materials with the gas vent system. It serves to protect the combustible wall material and features an extended bottom flange.
The RV series offers round gas vent pipe and fittings for residential, commercial and industrial applications. It features a snap together, non-positional lock system, die formed ends, and eliminates the need for all cutting, fitting and special engineering. It has an improved joint design provides for a rapid and secure connection in seconds. The use of our "LockTab" feature gives installers the option of engaging this tab instead of using sheet metal screws, when required by local code.
Features:
- Residential and light commercial and industrial
- Materials: Galvanized steel outer and aluminum inner liner
- Easy to use LockTab or non-positional lock system
- Fuel: Gas
- UL 441 listed
- Minimum Safety Clearance to Combustibles:
- 1" for diameters of 3" to 24"
- 2" for diameters 26" to 48"
Dimensions and Measurements
Base Length | 9.5 in. |
Base Width | 9.5 in. |
Pipe Inside Diameter | 7 in. |
Dimensions and Measurements
Base Length | 9.5 in. |
Base Width | 9.5 in. |
Pipe Inside Diameter | 7 in. |
Characteristics and Features
Configuration | Shield |
Material | Aluminum, Galvanized Steel |
Pipe Class | Type B |
Pipe Shape | Round |
Vent Construction | Double Wall |
Characteristics and Features
Configuration | Shield |
Material | Aluminum, Galvanized Steel |
Pipe Class | Type B |
Pipe Shape | Round |
Vent Construction | Double Wall |
Electrical and Operational Information
Fuel Type | Gas |
Electrical and Operational Information
Fuel Type | Gas |
Warranty and Product Information
Approved for Commercial Use | No |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Manufacturer Warranty | Limited Lifetime |
