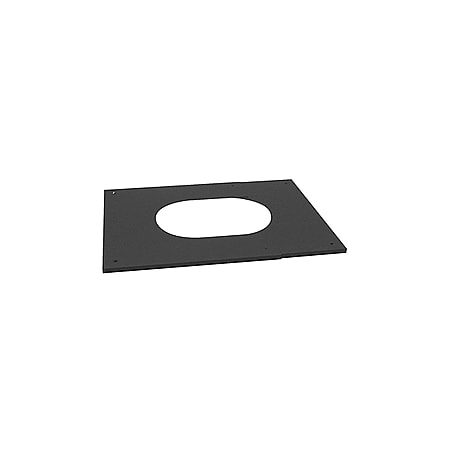

Metalbest Sure-Temp 10" Class A Chimney Pipe Adjustable 6/12 to 12/12 Pitched Ceiling Plate
Model: 210514|Item: bci1069287
Details
10" Class A Chimney Pipe Adjustable 6/12 to 12/12 Pitched Ceiling Plate from Sure-Temp
The Pitched Ceiling Plate provides a finished appearance where the chimney passes through a sloped ceiling. It is important to choose a plate that matches the pitch of your roof. This adjustable plate works for 6/12 to 12/12 pitch. Note: To determine your roof pitch, measure the number of inches from the end of a level 12” ruler down to the roof. This is the rise for 12 inches of run. For example, a rise of 7 inches is a 7/12 pitch.
The Sure-Temp Chimney System is designed to meet the needs of today’s high-efficiency Wood Stoves and other appliances burning wood, oil or gas. Components may be combined in a wide variety of ways to solve almost any chimney installation requirement.
Features:
- Materials: Stainless steel
- Clearance: 2" to combustibles
- Allowable Flue Gas Temperatures:
- Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
- Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
- Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)
Manufacturer Resources
Installation GuideDimensions and Measurements
Maximum Length | 37 in. |
Minimum Length | 23 in. |
Pipe Inside Diameter | 10 in. |
Width | 20.5 in. |
Dimensions and Measurements
Maximum Length | 37 in. |
Minimum Length | 23 in. |
Pipe Inside Diameter | 10 in. |
Width | 20.5 in. |
Characteristics and Features
Configuration | Trim |
Material | Stainless Steel |
Pipe Class | Class A |
Pipe Shape | Round |
Vent Construction | Double Wall |
Characteristics and Features
Configuration | Trim |
Material | Stainless Steel |
Pipe Class | Class A |
Pipe Shape | Round |
Vent Construction | Double Wall |
Electrical and Operational Information
Fuel Type | Coal, Oil, Wood |
Electrical and Operational Information
Fuel Type | Coal, Oil, Wood |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Manufacturer Warranty | Limited Lifetime |
