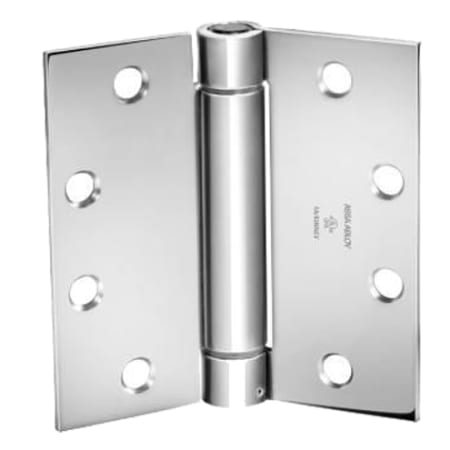

McKinney 1502 Series 4-1/2" x 4-1/2" Standard Duty Single Action Spring Square Corner Mortise Adjustable Door Hinge - Single

Features:

• Includes one (1) door hinge in each order
• Features square corners
• Hinge is designed with a removable pin
• Constructed from steel for long lasting durability
• Non-handed for left or right handed door applications
• Accomodates doors of 1-3/4" thickness
• Mckinney offers a limited 1 year manufacturer warranty
• Tested for residential strength applications, ideal for multi-family housing

Product Technologies:

• • Spring Hinge: These single action hinges are fitted with springs in the barrel to bring an open door back to a closed position automatically. Great where door space is at a premium and door closers are impractical. With double action hinges, the door is able to move in either direction.

• • Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

• Height: 4-1/2"
• Width: 4-1/2"
• Material: Steel
• Mount Type: Mortise
• Gauge (Thickness of Hinge): 0.106"
• Number of Knuckles: 3
• Number of Holes: 8
• Removable Pin: Yes
• Adjustable: Yes
• Door Thickness: 1-3/4"
• Quantity: 1
