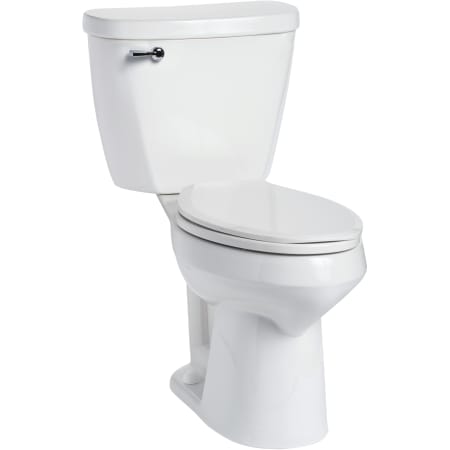

Mansfield Summit 1.28 GPF Two-Piece Elongated Comfort Height Toilet - Less Seat

Model: 384.387.WHT
|
Item: bci3238732

$203.94
Finish: White -
Special Order
placeholder
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 16 to 21 weeks
-
Return & Shipping Details

Details

Mansfield 384-387 Features:

  • Two-piece configuration allows for easier access to the area around the toilet
  • Covered under a limited lifetime warranty
  • Constructed of vitreous china, ensuring durability and dependability
  • Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
  • Toilet seat not included - Must be purchased separately
  • For floor mounted installations
  • ADA compliant - complies with the standards for toilets set forth by the Americans with Disabilities Act
  • WaterSense certified - toilet uses 20% less water than the current standard while maintaining superior performance

Mansfield 384-387 Specifications:

  • Overall Height: 32-3/4" (bottom of the base to the highest point on the toilet)
  • Overall Depth: 29" (back of the tank to the front of the rim)
  • Overall Width: 19-3/8" (furthest point on the left to the furthest on the right)
  • Bowl Height: 16-1/2" (bottom of the base to the rim)
  • Flow Rate: 1.28 gallons-per-flush
  • Water Area: 9" x 10"
  • Trapway (Discharge Passageway) Size: 2"
  • Rough-In: 12"
  • Distance Between Toilet Seat Installation Holes: 5-1/2"

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Bowl Height
16.5 in.
Depth
29 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.28
Height
32.75 in.
Hinge Center to Center
5.5 in.
Product Weight
90 lbs.
Rough In
12 in.
Trapway
2 in.
Water Area
9 x 10
Width
19.375 in.

Dimensions and Measurements

Bowl Height
16.5 in.
Depth
29 in.
Flush Valve Size
3 in.
Gallons Per Flush
1.28
Height
32.75 in.
Hinge Center to Center
5.5 in.
Product Weight
90 lbs.
Rough In
12 in.
Trapway
2 in.
Water Area
9 x 10
Width
19.375 in.

Included Components

Seat Included
No

Included Components

Seat Included
No

Characteristics and Features

Bowl Shape
Elongated
Configuration
Two Piece
Design Features
Glazed Trapway
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Contemporary
Trip Lever Placement
Left

Characteristics and Features

Bowl Shape
Elongated
Configuration
Two Piece
Design Features
Glazed Trapway
Flush Type
Gravity Flush
Installation Type
Floor Mounted
Material
Vitreous China
Theme
Contemporary
Trip Lever Placement
Left

Warranty and Product Information

ADA
Yes
ASME Code
A112.19.2
CA Drought Compliant
Yes
Certifications
UPC, ASME, CSA
Collection
Comfort Height, Summit
Country Of Origin
USA
CSA Code
B45.1
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
TX Drought Compliant
Yes
WaterSense Certified
Yes

Warranty and Product Information

ADA
Yes
ASME Code
A112.19.2
CA Drought Compliant
Yes
Certifications
UPC, ASME, CSA
Collection
Comfort Height, Summit
Country Of Origin
USA
CSA Code
B45.1
Made in America
Yes
Manufacturer Warranty
Limited Lifetime
TX Drought Compliant
Yes
WaterSense Certified
Yes
