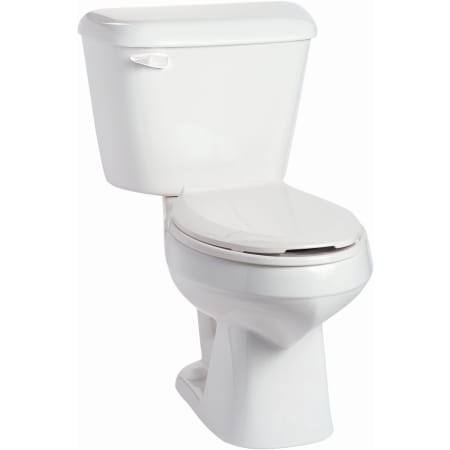

Mansfield Alto 1.28 GPF Two-Piece Elongated Toilet - Less Seat
Model: 135.3173.WHT|Item: bci3238780
from theAlto Collection
$130.76
Finish: White -
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 16 to 21 weeks
-Details
Mansfield 135-3173 Features:
- Two-piece configuration allows for easier access to the area around the toilet
- Covered under a limited lifetime warranty
- Constructed of vitreous china, ensuring durability and dependability
- Elongated bowl provides extra comfort, extending out an extra 1-1/2" compared to a round configuration
- Toilet seat not included - Must be purchased separately
- For floor mounted installations
- WaterSense certified - toilet uses 20% less water than the current standard while maintaining superior performance
Mansfield 135-3173 Specifications:
- Overall Height: 29-3/4" (bottom of the base to the highest point on the toilet)
- Overall Depth: 28-7/8" (back of the tank to the front of the rim)
- Overall Width: 19-3/4" (furthest point on the left to the furthest on the right)
- Bowl Height: 15" (bottom of the base to the rim)
- Flow Rate: 1.28 gallons-per-flush
- Water Area: 9" x 10"
- Trapway (Discharge Passageway) Size: 2"
- Rough-In: 12"
- Distance Between Toilet Seat Installation Holes: 5-1/2"
Manufacturer Resources
Specification SheetDimensions and Measurements
Bowl Height | 15 in. |
Depth | 28.875 in. |
Flush Valve Size | 3 in. |
Gallons Per Flush | 1.28 |
Height | 29.75 in. |
Hinge Center to Center | 5.5 in. |
Product Weight | 85 lbs. |
Rough In | 12 in. |
Trapway | 2 in. |
Water Area | 9 x 10 |
Width | 19.75 in. |
Dimensions and Measurements
Bowl Height | 15 in. |
Depth | 28.875 in. |
Flush Valve Size | 3 in. |
Gallons Per Flush | 1.28 |
Height | 29.75 in. |
Hinge Center to Center | 5.5 in. |
Product Weight | 85 lbs. |
Rough In | 12 in. |
Trapway | 2 in. |
Water Area | 9 x 10 |
Width | 19.75 in. |
Included Components
Seat Included | No |
Included Components
Seat Included | No |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Two Piece |
Design Features | Glazed Trapway |
Flush Type | Gravity Flush |
Installation Type | Floor Mounted |
Material | Vitreous China |
Theme | Contemporary |
Trip Lever Placement | Left |
Characteristics and Features
Bowl Shape | Elongated |
Configuration | Two Piece |
Design Features | Glazed Trapway |
Flush Type | Gravity Flush |
Installation Type | Floor Mounted |
Material | Vitreous China |
Theme | Contemporary |
Trip Lever Placement | Left |
Warranty and Product Information
ADA | No |
ASME Code | A112.19.2 |
CA Drought Compliant | Yes |
Certifications | UPC, ASME, CSA |
Collection | Alto |
Country Of Origin | USA |
CSA Code | B45.1 |
Made in America | Yes |
Manufacturer Warranty | Limited Lifetime |
TX Drought Compliant | Yes |
WaterSense Certified | Yes |
Warranty and Product Information
ADA | No |
ASME Code | A112.19.2 |
CA Drought Compliant | Yes |
Certifications | UPC, ASME, CSA |
Collection | Alto |
Country Of Origin | USA |
CSA Code | B45.1 |
Made in America | Yes |
Manufacturer Warranty | Limited Lifetime |
TX Drought Compliant | Yes |
WaterSense Certified | Yes |
