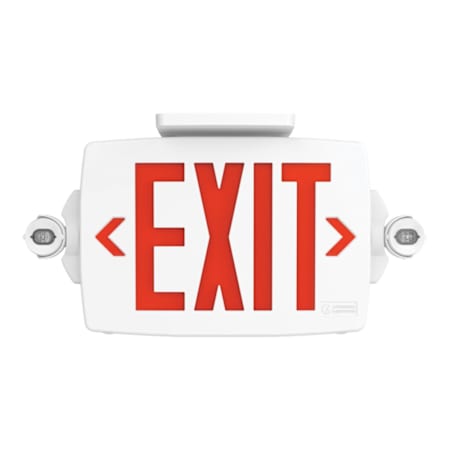

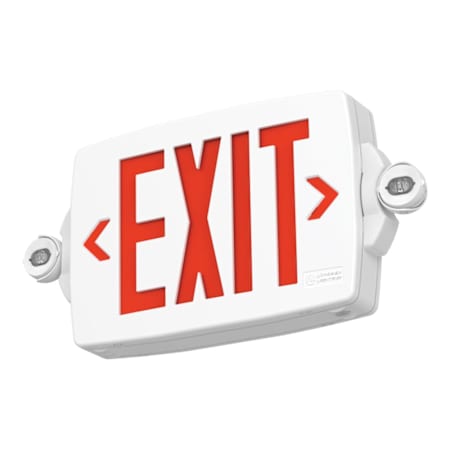

Lithonia Lighting Quantum LHQM 17" Wide Exit Combo with Red and Green Letters and High Output Battery
Model: LHQM S W RG MVOLT HO M6|Item: bci4982507
Details

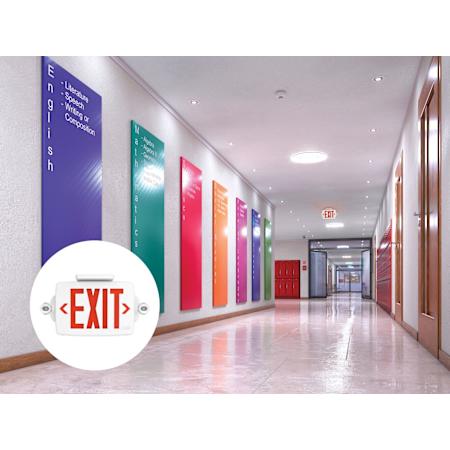

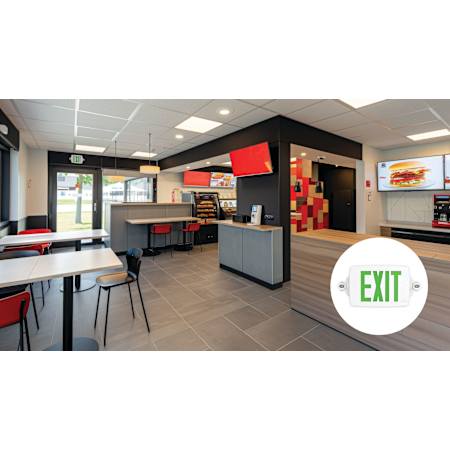

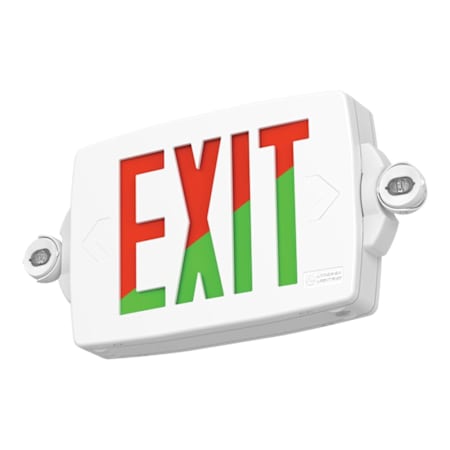

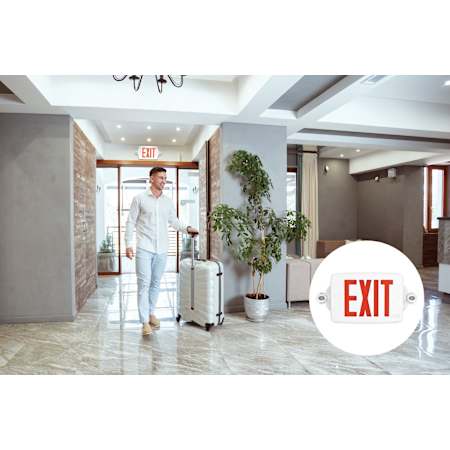

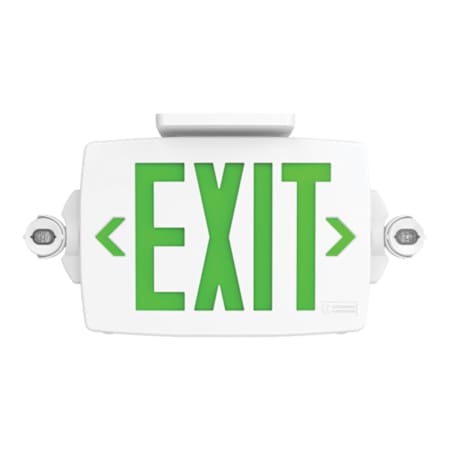

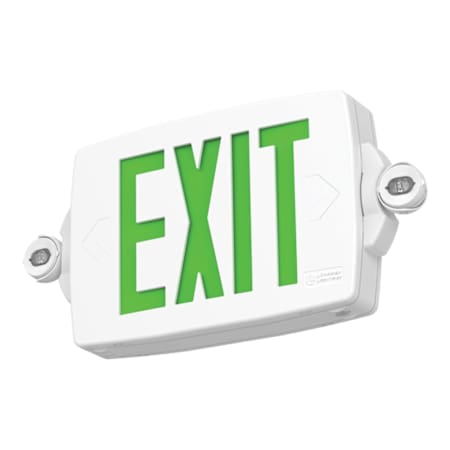

The LHQM Exit Combo from Lithonia Lighting® Quantum® family delivers next level performance for a wide variety of commercial indoor applications. The LHQM Exit combo raises the bar for emergency lighting by offering 2 products in 1. It comes equipped to service both red and green EXIT letter coloring just choose during installation. It features non-obtrusive adjustable/rotatable light heads to provide excellent path of egress coverage. The LHQM Exit Combo also features a “quick mount” canopy that allows the choice between either top or back mount while leaving no hardware visible from the floor (canopy is provided). Additionally, it ships standard with an extra faceplate to quickly convert the exit sign from a single to a double-faced exit making it perfect for offices, schools, hospitality, health care, multi-family and many other applications.
Features:
- Excellent benefits of LED - energy savings, long life, and maintenance savings
- UL Damp Location Listed standard

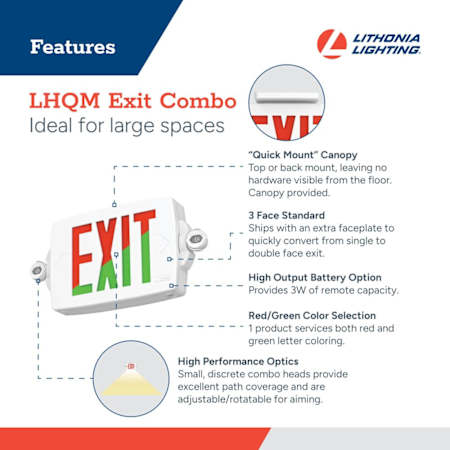

- Mounting canopy allows for top, back, or end mounting; Canopy design uses cam locking pin to secure sign to canopy with no visible hardware from the floor, mounting canopy is provided
- 7.2V, 1800mAh Ni-Cad Backup Battery. Provides 2.4W of Remote Capacity
- 5 year limited warranty

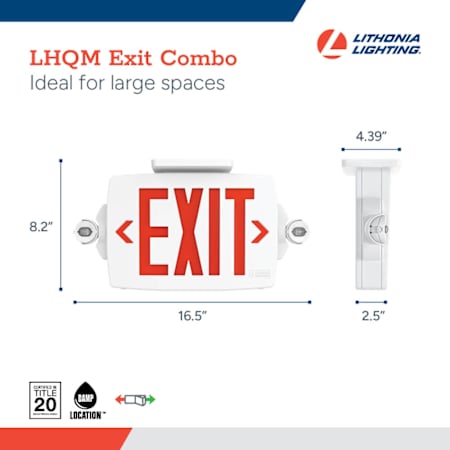

Dimensions:
- Height: 8-1/4"
- Width: 16-9/16"
- Depth: 2-1/2"
Dimensions and Measurements
Depth | 2.5 in. |
Height | 8.23 in. |
Nominal Width | 17 in. |
Product Weight | 3.3 lbs. |
Width | 16.54 in. |
Dimensions and Measurements
Depth | 2.5 in. |
Height | 8.23 in. |
Nominal Width | 17 in. |
Product Weight | 3.3 lbs. |
Width | 16.54 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
LED | Yes |
Material | Plastic |
Number of Light Source(s) | 3 |
Characteristics and Features
Bulb Base | Integrated LED |
LED | Yes |
Material | Plastic |
Number of Light Source(s) | 3 |
Electrical and Operational Information
Voltage | 120, 277 |
Wattage | 2.6 |
Electrical and Operational Information
Voltage | 120, 277 |
Wattage | 2.6 |
Warranty and Product Information
Collection | Quantum LHQM |
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
Warranty and Product Information
Collection | Quantum LHQM |
Country Of Origin | Vietnam |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
Title 20 Compliant | Yes |
