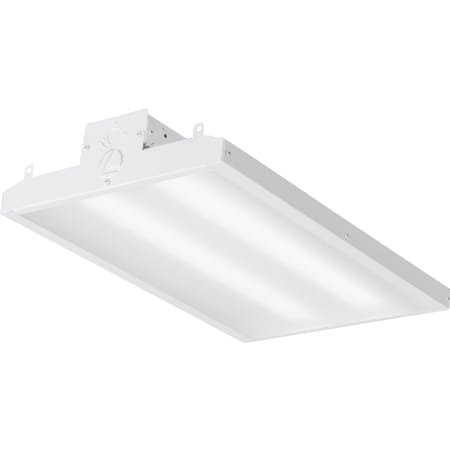

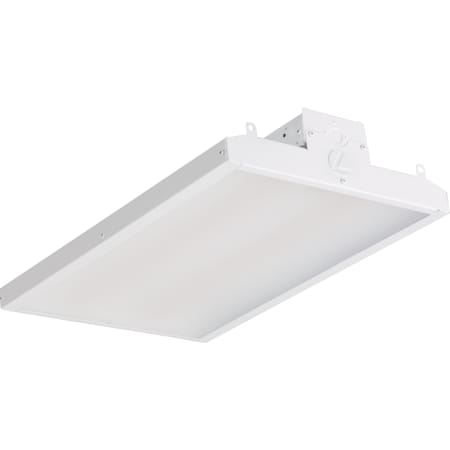

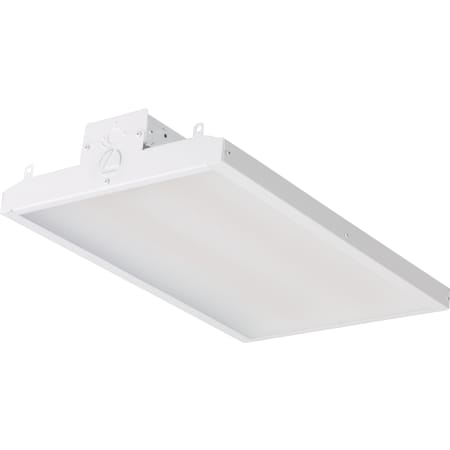

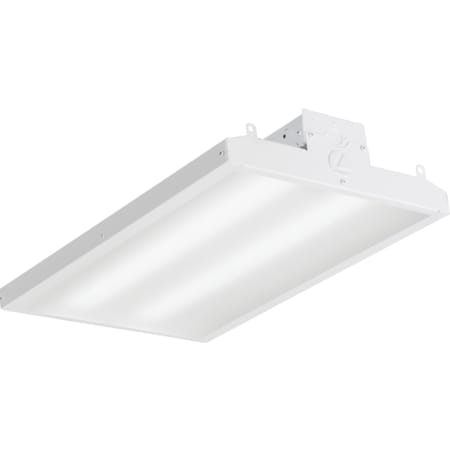

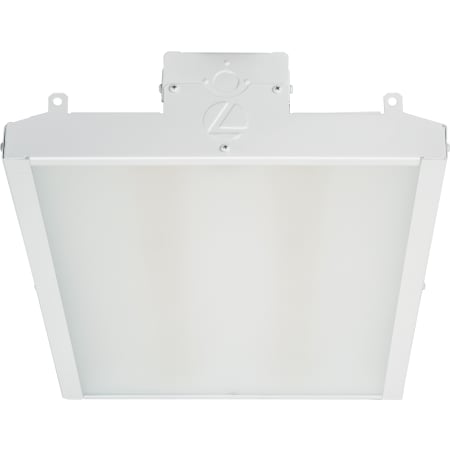

Lithonia Lighting Contractor Select I-BEAM 22" Wide 22000 Lumen LED High Bay Ceiling Fixture
Model: IBE 22LM MVOLT 40K|Item: bci3526821
from theI-BEAM Collection
$195.66
Finish: Gloss White / 4000K -
Special Order
Finish: Gloss White / 4000K -
Special Order
Gloss White / 4000K
Details
Features
- Robust 6kV surge protection standard, meeting the NASI standard for industrial environments
- Integrated LEDs provide both horizontal and vertical light level distribution requirements for ceilings from 10 to 40 feet
- UL listed to 45°C ambient with a thermal management system allowing for safe operation during times when temperatures rise up to 55°C
- Code-gauge, cold-rolled steel and aluminum construction
- Chain or cable suspension, surface mounting, hook monopoint or single pendant monopoint installable
- One pair of 36" long chain hangers included
- White polycarbonate lense
- Designed for commercial use
- Dimmable
- UL, CUL, and CSA rated for damp locations
- 5 year limited manufacturer warranty

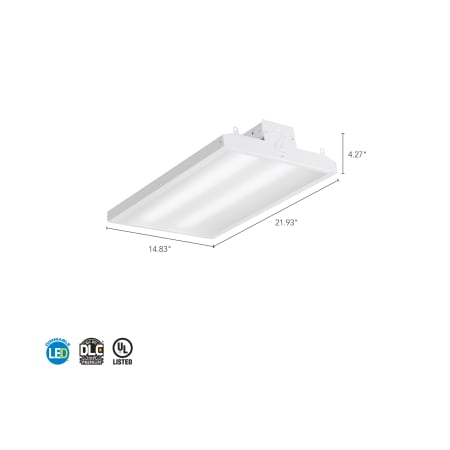

Dimensions
- Height: 4-3/8"
- Width: 22"
- Depth: 15-1/4"
- Product Weight: 8 lbs
Electrical Specifications
- Wattage: 166 watts
- Lumens: 22000
- Color Temperature: 4000K or 5000K
- Color Rendering Index: 80CRI
- Average Hours: 100000
Dimensions and Measurements
Depth | 15.25 in. |
Height | 4.375 in. |
Nominal Height | 4 in. |
Nominal Width | 22 in. |
Product Weight | 8 lbs. |
Width | 22 in. |
Dimensions and Measurements
Depth | 15.25 in. |
Height | 4.375 in. |
Nominal Height | 4 in. |
Nominal Width | 22 in. |
Product Weight | 8 lbs. |
Width | 22 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 4000K, 5000K |
Dimmable | Yes |
Energy Efficient | Yes |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Industrial |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Color Temperature | 4000K, 5000K |
Dimmable | Yes |
Energy Efficient | Yes |
LED | Yes |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Shade Color | White |
Shade Material | Synthetic |
Shade Shape | Rectangle |
Theme | Industrial |
Electrical and Operational Information
Average Hours | 100000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 22000 |
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 166 |
Electrical and Operational Information
Average Hours | 100000 Hours |
Color Rendering Index (CRI) | 80 |
Lumens | 22000 |
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 166 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Collection | IBE |
Country Of Origin | Mexico |
Energy Star | No |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL, CSA |
Collection | IBE |
Country Of Origin | Mexico |
Energy Star | No |
Location Rating | Damp Location |
Manufacturer Warranty | 5 Year Limited |
