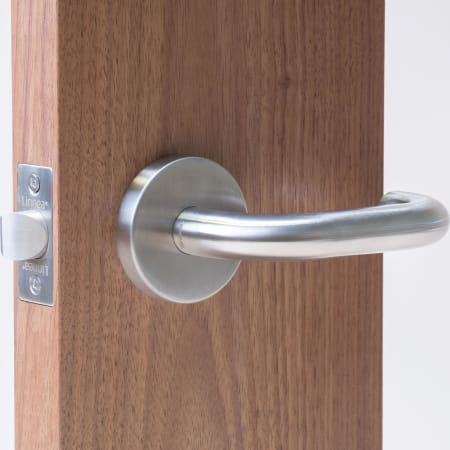

Linnea Marine Grade 316 Stainless Steel LL1 Dummy Door Lever Set with Round Rose

Model: L01-FDR-PSS
|
Item: bci3219512

$135.00
Finish: Polished Stainless Steel -
27 In Stock
Finish: Polished Stainless Steel -
27 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details



dummy-set-functionDummy Set Function: Dummy sets have no latch or locking mechanism. Typically dummy sets are used as merely a pull on the inactive side of a double door. This is a dummy "set" so it comes with both the interior and exterior handles. Pair this with passage or keyed door hardware for a complete double door solution.



Features:

  • Exceeds criteria for BHMA Grade 1 certification
  • Durable PVD finish ensures a long-lasting and stunning look
  • Constructed of marine grade 316 stainless steel
  • Corrosion-resistant material suitable for industrial and marine settings
  • This lever is reversible for right or left handed applications
  • Covered under a limited lifetime mechanical warranty
  • Complies with Americans with Disabilities Act (ADA)

Specifications:

  • Door Thickness: 1-3/8" to 2-1/4"
  • Handing: Left, Reversible, Right
  • Lever Length: 5-9/16"
  • Rose Diameter: 2-11/16"
  • Projection: 2-3/16"

Product Variations:

  • LL1R68-PA: Passage Door Lever Set
  • LL1R68-PR: Privacy Door Lever Set
  • LL1R68-SD: Single Dummy Door Lever
  • LL1R68-FD00 (This Model): Dummy Door Lever Set

Manufacturer Resources

InstallationDimensions

Dimensions and Measurements

Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8"
Handle Length
5.5512 in.
Handle Projection
2.17 in.
Trim Height
2.6772 in.
Trim Width
2.6772 in.

Dimensions and Measurements

Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8"
Handle Length
5.5512 in.
Handle Projection
2.17 in.
Trim Height
2.6772 in.
Trim Width
2.6772 in.

Characteristics and Features

Concealed Screws
Yes
Function
Dummy Set
Handing
Left, Reversible, Right
Lever Shape
Round, Straight
Material
Stainless Steel
Rosette Shape
Round
Solid Construction
Solid Stainless Steel
Theme
Modern

Characteristics and Features

Concealed Screws
Yes
Function
Dummy Set
Handing
Left, Reversible, Right
Lever Shape
Round, Straight
Material
Stainless Steel
Rosette Shape
Round
Solid Construction
Solid Stainless Steel
Theme
Modern

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Certifications
ANSI
Collection
Alpine
Country Of Origin
USA
Fire Rated
No
Made in America
No
Manufacturer Warranty
1 Year Finish, 5 Year Mechanical
Series
LL1

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
No, Yes
BHMA Certification
Grade 1
Certifications
ANSI
Collection
Alpine
Country Of Origin
USA
Fire Rated
No
Made in America
No
Manufacturer Warranty
1 Year Finish, 5 Year Mechanical
Series
LL1
