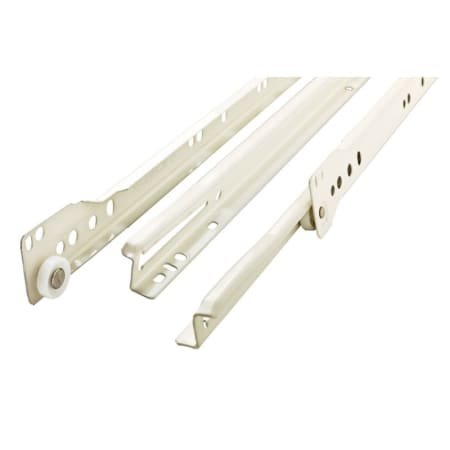

Liberty Hardware 14 Inch Full Extension Bottom Mount Euro Drawer Slide With 50 Pound Lbs. Weight Capacity and Self Close - Single
Model: D68814C-W-TX|Item: bci2142347
$5.85
Finish: White -
2817 In Stock
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 3 business days
-Details
Features:
- Designed to support up to 50 pounds of weight
- Mounts to the bottom of the drawer
- Provides easy access to the drawer with full extension slides
- Rail disconnect allows easy removal of drawer

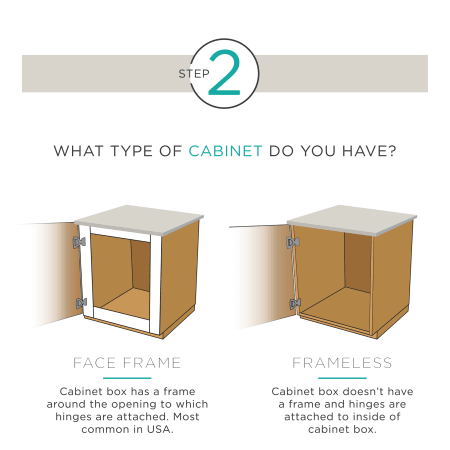

- Slides can be installed in panel (frameless) cabinets
- Includes a limited lifetime manufacturer warranty
Product Technologies:
- Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:

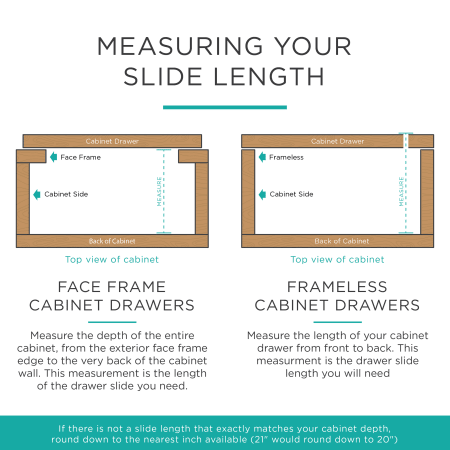

- Recommended Drawer Length: 14-1/2"
- Slide Length: 14"
- Extension Type: Full Extension
- Slide Type: Euro Slide
- Weight Capacity: 50 lbs
- Material: Steel
- Cabinet Type: Panel
- Quantity: 1
- D68812C-TX: 12 Inch Drawer Slide
- D68814C-TX (This Model): 14 Inch Drawer Slide
- D68824C-TX: 24 Inch Drawer Slide
Dimensions and Measurements
Drawer Length | 14.5 in. |
Extension | 14 in. |
Height | 1.4375 in. |
Length | 14 in. |
Max Capacity (Pounds) | 50 lbs. |
Nominal Length | 14 in. |
Product Weight | 0.92 lbs. |
Quantity | 1 |
Width | 0.375 in. |
Dimensions and Measurements
Drawer Length | 14.5 in. |
Extension | 14 in. |
Height | 1.4375 in. |
Length | 14 in. |
Max Capacity (Pounds) | 50 lbs. |
Nominal Length | 14 in. |
Product Weight | 0.92 lbs. |
Quantity | 1 |
Width | 0.375 in. |
Included Components
Installation Hardware Included | Yes |
Included Components
Installation Hardware Included | Yes |
Characteristics and Features
Adjustable | No |
Cabinet Type | Panel (Frameless) |
Detent | No |
Disconnect Style | Rail |
Extension Type | Full Extension |
Function | Drawer Slide |
Installation Type | Undermount |
Material | Steel |
Mounting Type | Bottom Mount, Side Mount |
Push to Open | No |
Self Closing | Yes |
Slide Type | Euro Slide |
Soft Close | No |
Characteristics and Features
Adjustable | No |
Cabinet Type | Panel (Frameless) |
Detent | No |
Disconnect Style | Rail |
Extension Type | Full Extension |
Function | Drawer Slide |
Installation Type | Undermount |
Material | Steel |
Mounting Type | Bottom Mount, Side Mount |
Push to Open | No |
Self Closing | Yes |
Slide Type | Euro Slide |
Soft Close | No |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Liberty |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Liberty |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
