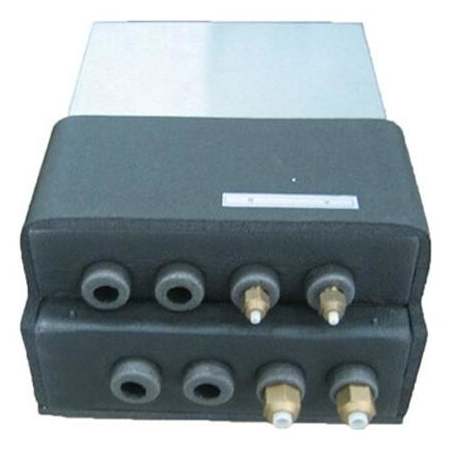

LG Multi F 2-Port Branch Distribution Unit for LG Mini Split Systems
Model: PMBD3620|Item: bci3402002
from theMulti F Collection
$317.00
16 In Stock
Details
The PMBD3620 is a two port branch distribution unit for LG's Multi F LMU540HV mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the LMU540HV to Multi F mini split indoor units.
Features:
- Simple installation (for indoor installation only)
- This branch distribution unit features flared joints to improve the speed and ease of installation
- Allows one mini split compressor to be used with two separate indoor units
- Uses 4-conductor power and communication cables
- Utilizes 3/8" liquid line and 3/4" vapor line to compressor and 1/4" liquid lines and 3/8" vapor lines to indoor units
- Distributes refrigerant to indoor units
- Internal components are insulated
Product Compatible With:
- LG LMU360HHV Mini Split Outdoor Condenser
- LG LMU420HHV Mini Split Outdoor Condenser
- LG LMU480HV Mini Split Outdoor Condenser
- LG LMU540HV Mini Split Outdoor Condenser
- LG LMU600HV Mini Split Outdoor Condenser
Specifications:
- Width: 9-7/8"
- Length: 5-7/8"
- Depth: 11-13/16"
- Product Weight: 13 lbs.
Dimensions and Measurements
Depth | 11.8125 in. |
Height | 17 in. |
Length | 5.90625 in. |
Liquid Line Diameter | 0.375, 0.25 in. |
Product Weight | 13 lbs. |
Suction Line Diameter | 0.75, 0.375 in. |
Width | 9.84375 in. |
Dimensions and Measurements
Depth | 11.8125 in. |
Height | 17 in. |
Length | 5.90625 in. |
Liquid Line Diameter | 0.375, 0.25 in. |
Product Weight | 13 lbs. |
Suction Line Diameter | 0.75, 0.375 in. |
Width | 9.84375 in. |
Electrical and Operational Information
Amperage | 0.08 |
Frequency | 60 Hertz |
Voltage | 208, 240 |
Electrical and Operational Information
Amperage | 0.08 |
Frequency | 60 Hertz |
Voltage | 208, 240 |
Warranty and Product Information
Application | Mini Split Air Conditioner Accessory |
Country Of Origin | South Korea |
Outdoor Approved | No |
Warranty and Product Information
Application | Mini Split Air Conditioner Accessory |
Country Of Origin | South Korea |
Outdoor Approved | No |
