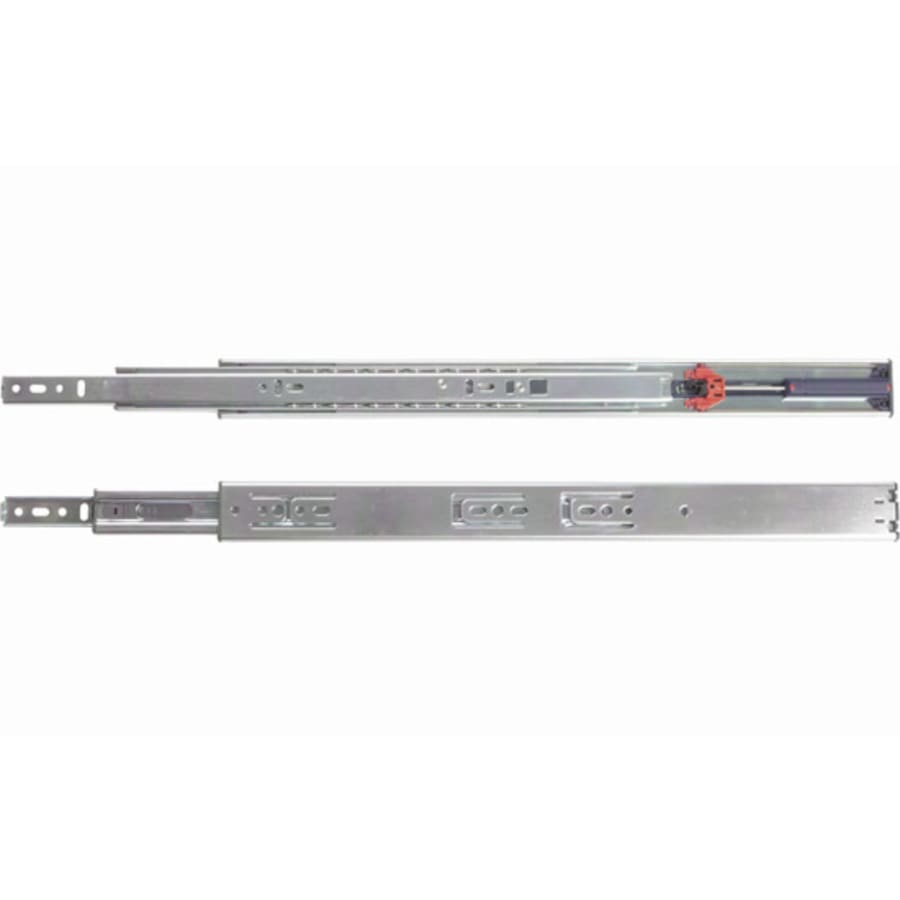

Knape and Vogt 4450 Series 18 Inch Full Extension Side Mount Ball Bearing Drawer Slide with 65 Lbs. Weight Capacity - Pair
Model: KV4450B18|Item: bci3304104
from the4450 Collection
$15.67
Finish: Zinc -
48 In Stock
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 2 business days
-Details
Features:
- Designed to support up to 65 pounds of weight
- Mounts to the side of the drawer
- Provides easy access to the drawer with full extension slides
- Lever disconnect allows easy removal of entire drawer system
- Slides can be installed in either panel (frameless) or face frame cabinets
- Includes a limited lifetime manufacturer warranty
Product Technologies:
- Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
- BHMA Certification: Grade 1
- Recommended Drawer Length: 18-1/2"
- Slide Length: 18"
- Extension Type: Full Extension
- Slide Type: Ball Bearing
- Weight Capacity: 65 lbs
- Material: Steel
- Cabinet Type: Face Frame, Panel
- Quantity: 2
- Mounting hardware not included
- 4450B 10: 10 Inch Drawer Slide
- 4450B 12: 12 Inch Drawer Slide
- 4450B 14: 14 Inch Drawer Slide
- 4450B 16: 16 Inch Drawer Slide
- 4450B 18 (This Model): 18 Inch Drawer Slide
- 4450B 20: 20 Inch Drawer Slide
- 4450B 22: 22 Inch Drawer Slide
- 4450B 24: 24 Inch Drawer Slide
Dimensions and Measurements
Drawer Length | 18.5 in. |
Extension | 18 in. |
Height | 1.42 in. |
Height mm | 36 mm |
Length | 18 in. |
Max Capacity (Pounds) | 65 lbs. |
Maximum Drawer Width | 24 in. |
Minimum Cabinet Depth | 18 in. |
Minimum Clearance | 0.5 in. |
Nominal Length | 18 in. |
Quantity | 2 |
Width | 0.5 in. |
Width mm | 13 mm |
Dimensions and Measurements
Drawer Length | 18.5 in. |
Extension | 18 in. |
Height | 1.42 in. |
Height mm | 36 mm |
Length | 18 in. |
Max Capacity (Pounds) | 65 lbs. |
Maximum Drawer Width | 24 in. |
Minimum Cabinet Depth | 18 in. |
Minimum Clearance | 0.5 in. |
Nominal Length | 18 in. |
Quantity | 2 |
Width | 0.5 in. |
Width mm | 13 mm |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | Yes |
Disconnect Style | Lever |
Extension Type | Full Extension |
Function | Drawer Slide |
Installation Type | Side Mount |
Material | Steel |
Mounting Type | Side Mount |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | Yes |
Characteristics and Features
Adjustable | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Detent | Yes |
Disconnect Style | Lever |
Extension Type | Full Extension |
Function | Drawer Slide |
Installation Type | Side Mount |
Material | Steel |
Mounting Type | Side Mount |
Push to Open | No |
Self Closing | No |
Slide Type | Ball Bearing |
Soft Close | Yes |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
BHMA Certification | Grade 1 |
Collection | 4450 |
Manufacturer Warranty | Limited Lifetime |
Series | 4450 |
Warranty and Product Information
Approved for Commercial Use | No, Yes |
BHMA Certification | Grade 1 |
Collection | 4450 |
Manufacturer Warranty | Limited Lifetime |
Series | 4450 |
