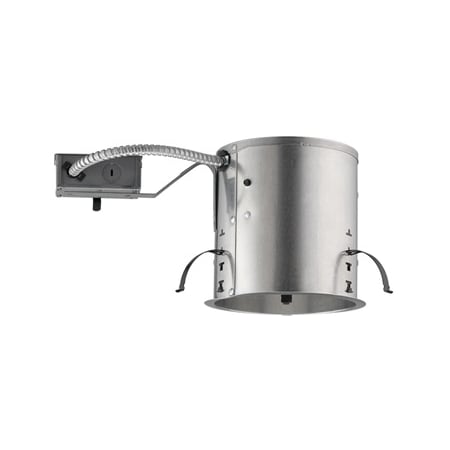

Juno Lighting IC22 Medium (E26) IC Rated Remodel Housing From the Contractor Select Collection

Model: IC22R
|
Item: bci3260380

$19.34
2291 In Stock
placeholder
Free Shipping on orders over $49.00!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

Features

  • Airtight when used with Air-Loc gasket (ALG6R, sold separately)
  • Compatible with select trims - see specification sheet
  • Wet Location approved only when used with 28 and 29 series and with outdoor rated light bulbs - see specification sheet
  • Housing is designed for use in remodel construction
  • Insulated ceiling rated and airtight
  • Constructed from aluminum
  • Manufactured in the United States
  • Requires (1) 90 watt medium (E26) bulb
  • UL and CUL rated for damp locations

Dimensions

  • Height: 7-1/8"
  • Width: 8-3/8"
  • Depth: 13-13/16"
  • Product Weight: 0.8 lbs
  • Cutout Size: 6-7/8 Inches

Electrical Specifications

  • Bulb Base: Medium (E26)
  • Number of Bulbs: 1
  • Bulb Included: No
  • Watts Per Bulb: 90 watts
  • Wattage: 90 watts
  • Voltage: 120 volts
Additional Juno Lighting Links

Dimensions and Measurements

Cutout Size
6.875 in.
Depth
13.8 in.
Height
7.1 in.
Product Weight
0.75 lbs.
Width
8.4 in.

Dimensions and Measurements

Cutout Size
6.875 in.
Depth
13.8 in.
Height
7.1 in.
Product Weight
0.75 lbs.
Width
8.4 in.

Included Components

Bulb Included
No

Included Components

Bulb Included
No

Characteristics and Features

Airtight
Yes
Bulb Base
Medium (E26)
Bulb Visible
No
Housing Type
Remodel Housing
Light Direction
Down Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Retrofit
No

Characteristics and Features

Airtight
Yes
Bulb Base
Medium (E26)
Bulb Visible
No
Housing Type
Remodel Housing
Light Direction
Down Lighting
Material
Aluminum
Number of Bulbs
1
Number of Light Source(s)
1
Retrofit
No

Electrical and Operational Information

Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
90
Watts Per Bulb
90

Electrical and Operational Information

Power Source
Hardwired
Voltage
120
Voltage Type
Line Voltage (110-120V)
Wattage
90
Watts Per Bulb
90

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Collection
IC22
Country Of Origin
USA
IC Rating
IC
Location Rating
Damp Location
Made in America
Yes

Warranty and Product Information

Approved for Commercial Use
Yes
Certifications
UL
Collection
IC22
Country Of Origin
USA
IC Rating
IC
Location Rating
Damp Location
Made in America
Yes
