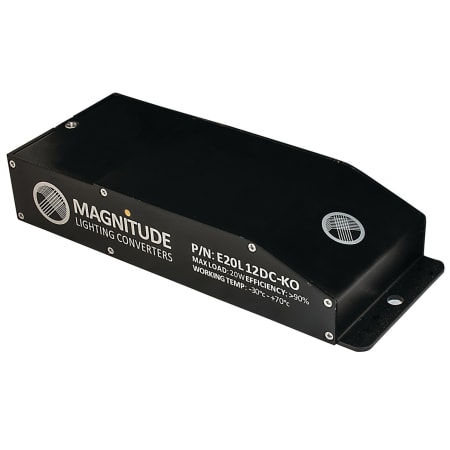

Hafele E-Series Dimmable 12V Magnetic LED Driver

Features:

• UL Class 2 rated for wet and salty conditions
• This driver is intended for use with Loox LEDs
• Operates with CL, LV, or any standard MLV/Incandescent TRIAC (leading edge) dimmer switch
• Dual mounting knock-outs and compact design allows for easy installation under cabinets
• The Loox system features color coded plugs; this driver has six ports for orange coded 12V lights
• Built-in auto reset protects your lighting from short circuits, over-voltage and high temperature

Product Technology:

• Electric Current Regulation: LEDs are low-voltage light sources which require a constant DC voltage to operate optimally. The driver converts AC power to the proper DC voltage and regulates the electric current during operation.
• Built-in Auto Reset: The driver will reset and stop the electric current if it detects over-voltage, short circuit, or if it overheats. This in turn protects your lighting system from damage due to line-voltage fluctuations or overheating.

Specifications:

• Max Wattage: 60
• Input Voltage: 120
• Input Amperage: .41
• Output Voltage: 12
• Output Amperage: 5
• Length: 6.77" (172 mm)
• Width: 2.67" (68 mm)
• Height: 1.26" (32 mm)
• Material: Aluminum
• Product Weight: 1.0625 lbs
• Includes: One (1) driver and two (2) conduit connections/grommets
