Hafele Flap Stay Model D MINIWINCH with Soft Close Mechanism
Model: 365.47.934|Item: bci3070838
from theMiniwinch Collection
$75.30
Finish: Matte Silver -
14 In Stock
Details
Features:

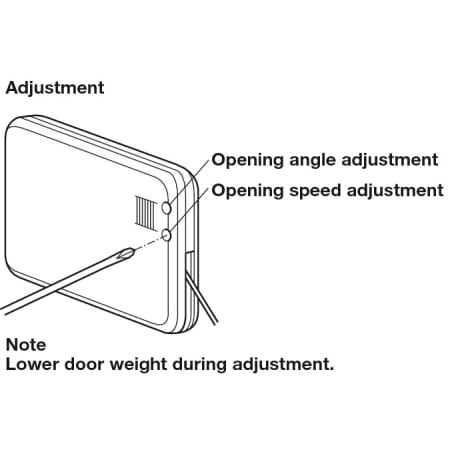

- Adjustable opening angle and braking system
- Equipped with soft open and close mechanism
- Can be set up for left or right handed use
- For flaps up to 16-15/16" tall
- Supports between 3.7 and 4.5 lbs (vertical) and 4.4 and 5.4 lbs (horizontal)
Specifications:
- Height: 6-7/16"
- Width: 3-1/2"
- Depth: 15/16"

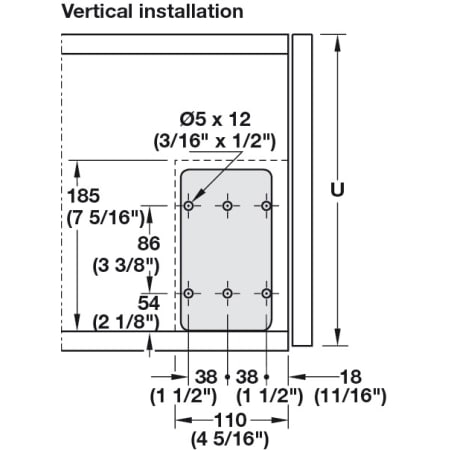

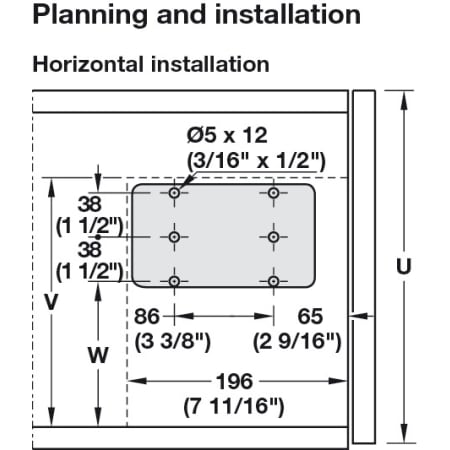

- Minimum Cabinet Depth: 4-5/16" (Vertical Installation) or 7-11/16" (Horizontal Installation)
- Weight Capacity (Vertical Installation) 3.7 lbs to 4.5 lbs
- Weight Capacity (Horizontal Installation): 4.4 to 5.4 lbs
Manufacturer Resources
Installation SheetDimensions and Measurements
Depth | 0.9375 in. |
Height | 6.4375 in. |
Max Capacity (Pounds) | 5.4, 4.5 lbs. |
Width | 3.5 in. |
Dimensions and Measurements
Depth | 0.9375 in. |
Height | 6.4375 in. |
Max Capacity (Pounds) | 5.4, 4.5 lbs. |
Width | 3.5 in. |
Characteristics and Features
Material | Plastic, Zinc |
Self Closing | Yes |
Soft Close | Yes |
Characteristics and Features
Material | Plastic, Zinc |
Self Closing | Yes |
Soft Close | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Warranty and Product Information
Approved for Commercial Use | No |
