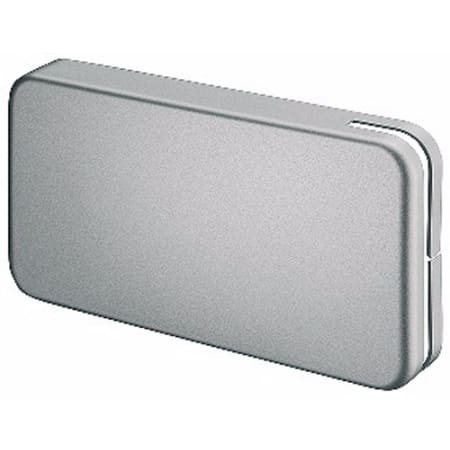

Hafele Flap Stay Model A MINIWINCH with Soft Close Mechanism
Model: 365.47.931|Item: bci3091386
from theMiniwinch Collection
$76.37
Finish: Matte Silver -
17 In Stock
Details
Features:
- Adjustable opening angle and braking system
- Equipped with soft open and close mechanism
- Can be set up for left or right handed use
- Choose between vertical or horizontal installation
- Intended for wooden doors
- Mounting hardware, cover cap, and front fixing bracket included
Specifications:

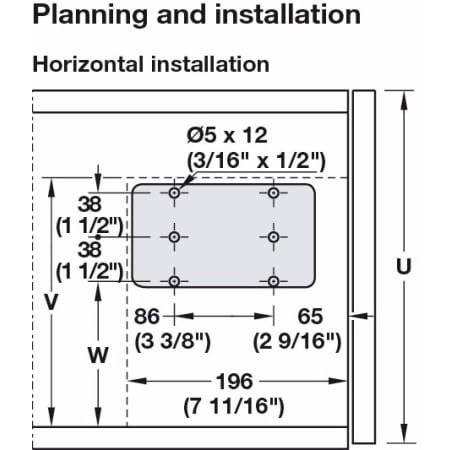

- Minimum Cabinet Depth (Horizontally): 7-11/16" (196 mm)

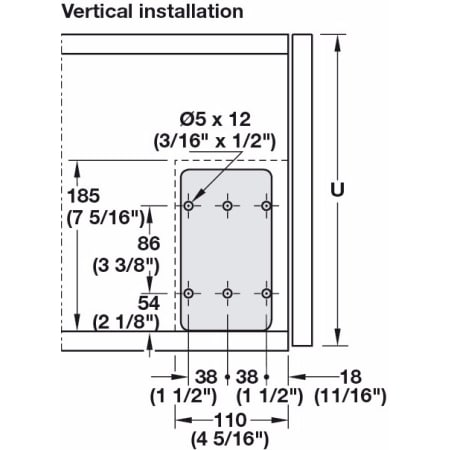

- Minimum Cabinet Depth (Vertically): 4-5/16" (110 mm)
- Flap Height: 7-7/8" (200 mm) to 18-7/8" (480 mm)
- Maximum Flap Weight: 26.4 lbs.
Dimensions and Measurements
Max Capacity (Pounds) | 26.4 lbs. |
Dimensions and Measurements
Max Capacity (Pounds) | 26.4 lbs. |
Included Components
Installation Hardware Included | Yes |
Included Components
Installation Hardware Included | Yes |
Characteristics and Features
Material | Plastic |
Self Closing | Yes |
Soft Close | Yes |
Characteristics and Features
Material | Plastic |
Self Closing | Yes |
Soft Close | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | No |
Manufacturer Warranty | Limited Lifetime |
Reviews
(0)
