The Generac 7686 has been discontinued
** See similar or replacement items below **
Item # bci4724949

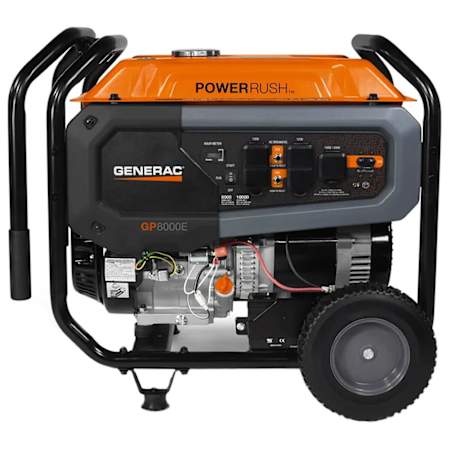

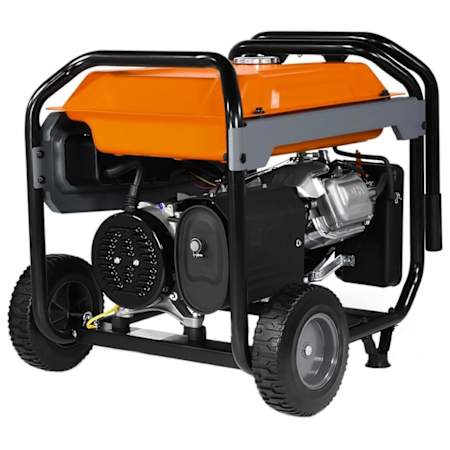

Generac GP Series 8,000-Watt (120 / 240V) Electric Button / Recoil Start Gasoline Portable Generator
Model: 7686|Item: bci4724949
from theGP Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Generac® GP8000E Electric Start Portable Emergency Generator
- Energizes mission-critical appliances - except central A/C
- PowerRush™ Advanced Technology*
- Provides 30% + motor starting capacity
- *NOTE - Increases electrical current upon demand; above rated output
- Electric Start with Recoil Backup
- Start the generator with the press of a button (Battery Included)
- Plug-in battery charger jack keeps battery charged and ready
- 420cc Generac® 4-Stroke OHV Engine with Low Oil Shutoff
- Designed for long life with safeguards in-place for peace of mind
- 7.9-Gallon Fuel Tank with Fuel Gauge
- Up to 11 hours of runtime @ 50% load
- 30-Amp 120/240V (L14-30) Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- ***Note - Allows you to get maximum power from generator
- Built-In Hour Meter
- Makes it easy to track run-time and maintenance intervals
- 1-1/4" Hardened Steel-Tube Cradle
- Protects the generator during transportation and operation
- Heavy-Duty, Never-Flat Wheels
- Makes this generator easy to move over uneven terrain
- Fold-Down Handle
- Allows for easy, compact storage
- 3-Year Limited Residential and 1-Year Limited Commercial Warranty
- Non-CARB Compliant - Not For Sale In CA
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- Cast Iron Engine Sleeve
- Fuel Gauge
- Hour Meter
- Idle Control
- Low Oil Alert/Shutdown
- Low THD
- Voltage Meter
- Battery Included
- Product Weight: 198 lbs
- Length: 28-13/16"
- Width: 21-11/16"
- Height: 26-1/2"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 8,000 Watts
- Starting Wattage: 10,000 Watts
- Fuel Type: Gasoline
- Amperage: 33A
Engine:
- Engine Brand: Generac
- Starting System: 12-Volt Button Start w/ Recoil
- Cubic Capacity: 420 CC
- RPM: 3600 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- Made in America
- Approved for Commercial Use
- Warranty: 1 Year Commercial, 1 Year Commercial Engine, 3 Year Residential, and 3 Year Residential Engine
Plug Types:
(2) NEMA 5-20R - GFCI
(3) NEMA L14-30R
Dimensions and Measurements
Fuel Tank Capacity | 7.9 Gallons |
Height | 26.5 in. |
Length | 28.8 in. |
Product Weight | 198 lbs. |
Width | 21.7 in. |
Dimensions and Measurements
Fuel Tank Capacity | 7.9 Gallons |
Height | 26.5 in. |
Length | 28.8 in. |
Product Weight | 198 lbs. |
Width | 21.7 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Generac |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown, Low THD, Voltage Meter |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Generac |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown, Low THD, Voltage Meter |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 33 |
Cubic Capacity | 420 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (2) NEMA 5-20R - GFCI, (3) NEMA L14-30R |
RPM | 3600 |
Run Time @ 50% Load | 11 Hours |
Running Wattage | 8000 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 10000 |
Voltage | 120, 240 |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 33 |
Cubic Capacity | 420 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (2) NEMA 5-20R - GFCI, (3) NEMA L14-30R |
RPM | 3600 |
Run Time @ 50% Load | 11 Hours |
Running Wattage | 8000 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 10000 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Commercial Engine, 3 Year Residential, 3 Year Residential Engine |
SCAQMD Compliant | No |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year Commercial, 1 Year Commercial Engine, 3 Year Residential, 3 Year Residential Engine |
SCAQMD Compliant | No |
