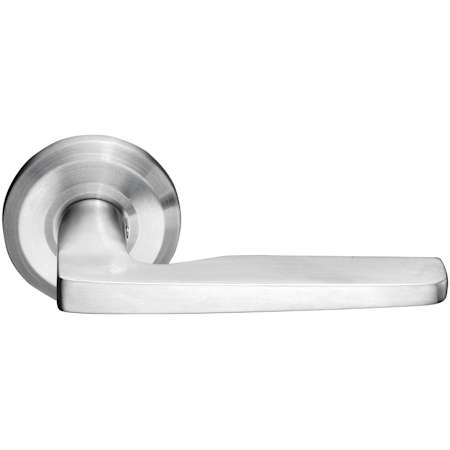

Emtek Hermes Stainless Steel Privacy Leverset
Model: S200HE-SS|Item: bci1213548
Details
All Emtek items are made to order.
Emtek's privacy leversets use traditional American locks and latches complete with a variety of trim styles, handcrafted from authentic materials. The leverset is operated by a lever from both the interior and exterior. With the privacy function, the door is locked via a push pin on the interior. The exterior has an emergency release hole that allows the door to be unlocked if necessary. Uncompromisingly rugged and beautifully crafted, these locks are suitable for the very finest homes.
For a striking, contemporary look, Emtek's stainless steel handlesets cannot be beat. The latches are heavy-duty die cast construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positively connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion.
Features:
- Standard Door Prep
- Stainless Steel
Specifications:
- Lever Width: 5.13"
- Projection: 2.73"
- Material: Stainless Steel
- Door Thickness: 1-3/8" - 2-3/4"
- Backset: 2-3/8" or 2-3/4"
Emtek is dedicated to bringing interesting, well made hardware back into American homes. Emtek's mission is to satisfy the higher expectations of today's homeowners with regard to door locks. They strive to provide a broad and interesting range of products that consumers can use as elements of decor, and not just as a way to latch a door.
Manufacturer Resources
Specification SheetRosette SpecificationComponent BreakdownStrikeplate SpecificationInstallation GuideDimensions and Measurements
Backset | 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-5/8" |
Handle Length | 5.13 in. |
Handle Projection | 2.73 in. |
Dimensions and Measurements
Backset | 2-3/4" |
Cross Bore | 2-1/8" |
Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-5/8" |
Handle Length | 5.13 in. |
Handle Projection | 2.73 in. |
Characteristics and Features
Function | Privacy |
Handing | Left, Right |
Handle Material | Metal |
Latch Faceplate | Round Corner |
Lever Shape | Straight, Square |
Locking Mechanism | Trim Lock |
Material | Stainless Steel |
Rosette Shape | Round, Square |
Style | Contemporary/Modern |
Theme | Modern |
Characteristics and Features
Function | Privacy |
Handing | Left, Right |
Handle Material | Metal |
Latch Faceplate | Round Corner |
Lever Shape | Straight, Square |
Locking Mechanism | Trim Lock |
Material | Stainless Steel |
Rosette Shape | Round, Square |
Style | Contemporary/Modern |
Theme | Modern |
Warranty and Product Information
Approved for Commercial Use | No |
Series | Hermes |
Warranty and Product Information
Approved for Commercial Use | No |
Series | Hermes |
