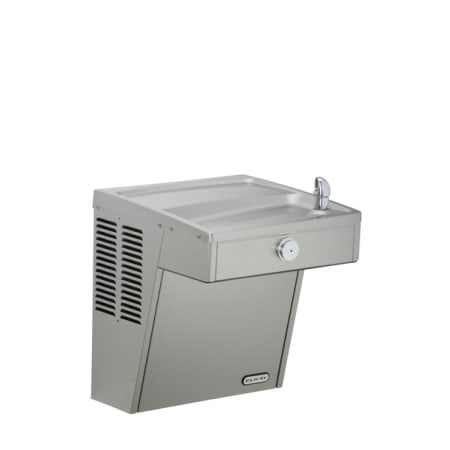

Elkay 7.8 GPH ADA Wall Mount Single Level Vandal Resistant Cooler with Frost Resistance
Model: VRCFR8S|Item: bci1148741
$1,804.50
Finish: Stainless Steel -
11 In Stock
Details
Elkay 7.8 GPH ADA Wall Mount Single Level Vandal Resistant Cooler with Frost Resistance
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
- Self-contained wall hung water cooler
- Electric refrigerated
- Vandal-resistant unit
- Rated for indoor or outdoor use
- Stainless steel construction provides vandal-resistant enclosure
- Flow regulator provides constant stream from 20 to 105 psi water pressure
- Heavy duty push button control is vandal-resistant
- Non-pressurized water tank is standard
- Non-pressurized water tank is located after bubbler valve (so that the tank is subject to line pressure only when push bar is pressed)
- ADA compliant
- No lead design
- Frost resistant design
- Construction
- Frame - Galvanized structural steel chassis supports fountain top and cabinet panels
- Fountain Top - One piece stainless steel top, basin has embossed bubbler pad
- Vandal-Resistant Bubbler - Heavy duty, one piece construction. Keyed into position to prevent rotation
- Cabinet - Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with standard screws
- Cooling System
- Motor Compressor - Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
- Condenser - Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
- Cooling Unit - Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
- Refrigerant Control - Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
- Temperature Control - Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Product Specifications:
- Base Flow Rated: 7.8
- Rated Watts: 575
- Full Load Amps: 5
- Fountain Type: Cooler
- Shipping Weight: 66 lbs
- Installation Type: Wall
- Hands Free Operation: No
- Voltage: 120V/60Hz
- Height: 19-5/16"
- Depth: 18-5/8"
- Glass Filler: No
- Vandal Resistant Bubbler: Yes
- Louver Screen: No
- Filtered: No
Dimensions and Measurements
Cooling Capacity | 8 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 20.65 in. |
Inlet Diameter | .375 in. |
Length | 18 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 66 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.5 in. |
Dimensions and Measurements
Cooling Capacity | 8 GPH |
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 20.65 in. |
Inlet Diameter | .375 in. |
Length | 18 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 66 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.5 in. |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Included Components
Bottle Filler Included | No |
Cooling Unit | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | No |
Control Type | Push Button |
Filtered | No |
Freeze Resistant | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 1 |
Pet Friendly | No |
Vandal Resistant | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | No |
Control Type | Push Button |
Filtered | No |
Freeze Resistant | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 1 |
Pet Friendly | No |
Vandal Resistant | Yes |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 575 |
Electrical and Operational Information
Amperage | 5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 115 |
Wattage | 575 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | Yes |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | Yes |
