Elkay ADA Wall Mount Single Level Vandal Resistant Fountain
Model: VRCDS|Item: bci1148753
$975.75
Finish: Stainless Steel -
28 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 5 to 7 business days
-Details

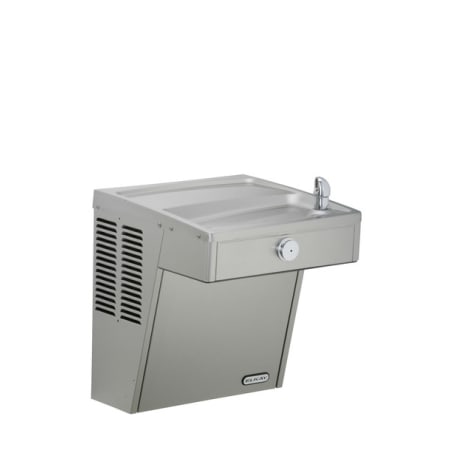

Elkay ADA Wall Mount Single Level Vandal Resistant Fountain
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
- Self-contained wall hung drinking Fountain
- Vandal-resistant unit
- Rated for indoor or outdoor use
- Flow regulator provides constant stream from 20 to 105 psi water pressure
- Heavy duty push button control is vandal-resistant
- Non-pressurized cooling tank is standard
- Non-pressurized water tank is located after bubbler valve (so that tank is subject to line pressure only when valve button is pressed)
- ADA compliant
- No lead design
- Construction
- Frame - Galvanized structural steel chassis supports fountain top and cabinet panels
- Fountain Top - One piece Stainless steel top. Basin has embossed bubbler pad
- Vandal-Resistant Bubbler - Heavy duty, one piece construction. Keyed into position to prevent rotation
- Cabinet - Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with vandal-resistant screws
Product Specifications:
- Base Flow Rate: 0
- Rated Watts: 0
- Full Load Amps: 0
- Shipping Weight: 28 lbs
- Fountain Type: Standard
- Installation Type: Wall
- Hands Free Operation: No
- Voltage: 0
- Height: 19-9/16"
- Depth: 18-5/8"
- Vandal Resistant Bubbler: Yes
- Freeze Protection: No
- Glass Filler: No
- Filtered: No
Dimensions and Measurements
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 20.625 in. |
Inlet Diameter | .375 in. |
Length | 18 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 32 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.5 in. |
Dimensions and Measurements
Flow Rate (GPM) | .13 |
Gauge | 18 |
Height | 20.625 in. |
Inlet Diameter | .375 in. |
Length | 18 in. |
Outlet Diameter | 1.25 in. |
Product Weight | 32 lbs. |
Water Pressure (Max) | 105 PSI |
Water Pressure (Min) | 20 PSI |
Width | 18.5 in. |
Included Components
Bottle Filler Included | No |
Cooling Unit | No |
Included Components
Bottle Filler Included | No |
Cooling Unit | No |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | No |
Control Type | Push Button |
Filtered | No |
Freeze Resistant | No |
Hands Free | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 1 |
Pet Friendly | No |
Vandal Resistant | Yes |
Characteristics and Features
Antimicrobial | Yes |
Bi-Level | No |
Control Type | Push Button |
Filtered | No |
Freeze Resistant | No |
Hands Free | No |
Installation Type | Wall Mounted |
Material | Stainless Steel |
Number of Stations | 1 |
Pet Friendly | No |
Vandal Resistant | Yes |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | Yes |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.19.3 |
Certifications | NSF, ANSI, ASME, UL |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Location Rating | Wet Location |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Outdoor Approved | Yes |
