Elkay Wall Mount 14 Gauge Stainless Steel Scrub Sink with Spout, Knee Valve and Drain Fitting
Model: EWS3120KC|Item: bci1148415
$3,833.25
Finish: Stainless Steel -
Special Order
Details

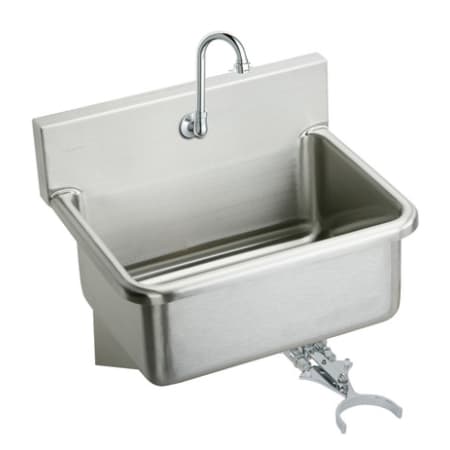

Elkay Wall Mount 14 Gauge Stainless Steel Scrub Sink with Spout, Knee Valve and Drain Fitting
Product Features:
- Wall mounted
- Stainless steel
- Scrub-up sink with 1-3/4" radius vertical and horizontal Coved corners
- 1-1/2" rolled rim
- Full length 6" high back-splash
- Exposed surfaces are hand blended
- Underside is sound deadened
- Furnished with wall hanger and Stainless steel support brackets
- Supply:
- Chrome plated
- Wall mounted
- knee operated valve
- 1/2" female I.P.S. inlets and 3/8" I.P.S. spout outlet
- Enameled iron wall bracket and mounting package
- Faucet:
- Chrome plated
- back mount spout
- Vandal-resistant anti-hose aerator
- Flanged female 1/2" I.P.S. inlet with 1/2" male thread by 1/2" SWT brass elbow, 1/2" nipple, washer, and locknut
- Drain:
- Stainless steel perforated grid strainer
- 1-1/2" O.D. stainless steel tailpiece
Product Specifications:
- Sink:
- Installation Type: Wall
- Material: Stainless Steel
- Number of Basins: 1
- Sink Dimensions: 31" L x 19-1/2" W
- Bowl Depth: 10-1/2"
- Bowl Dimensions: 28" L x 16" W x 10-1/2" D
- Faucet Holes: 1
- Drain Size: 3-1/2"
Dimensions and Measurements
Basin Depth | 10.5 in. |
Basin Length | 28 in. |
Basin Width | 16 in. |
Drain Hole | 3.5 in. |
Faucet Height | 8.25 in. |
Faucet Hole Size | 1.25 in. |
Flow Rate (GPM) | 2.5 |
Gauge | 14 |
Length | 31 in. |
Spout Height | 5.56 in. |
Spout Reach | 4.88 in. |
Water Pressure (Max) | 80 PSI |
Water Pressure (Min) | 40 PSI |
Width | 19.5 in. |
Dimensions and Measurements
Basin Depth | 10.5 in. |
Basin Length | 28 in. |
Basin Width | 16 in. |
Drain Hole | 3.5 in. |
Faucet Height | 8.25 in. |
Faucet Hole Size | 1.25 in. |
Flow Rate (GPM) | 2.5 |
Gauge | 14 |
Length | 31 in. |
Spout Height | 5.56 in. |
Spout Reach | 4.88 in. |
Water Pressure (Max) | 80 PSI |
Water Pressure (Min) | 40 PSI |
Width | 19.5 in. |
Characteristics and Features
Drain Placement | Center |
Faucet Holes | 1 |
Installation Type | Wall Mounted |
Material | Brass, Stainless Steel |
Number Of Basins | 1 |
Number Of Handles | 0 |
Sink Material | Stainless Steel, Brass |
Sink Shape | Rectangular |
Characteristics and Features
Drain Placement | Center |
Faucet Holes | 1 |
Installation Type | Wall Mounted |
Material | Brass, Stainless Steel |
Number Of Basins | 1 |
Number Of Handles | 0 |
Sink Material | Stainless Steel, Brass |
Sink Shape | Rectangular |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
