Elkay Wall Mount 18 Gauge Stainless Steel Handwash Sink with Commercial Faucet and Drain Fittings
Model: CHS1716LRSC|Item: bci1148425
$1,720.50
Finish: Stainless Steel -
Special Order
Details

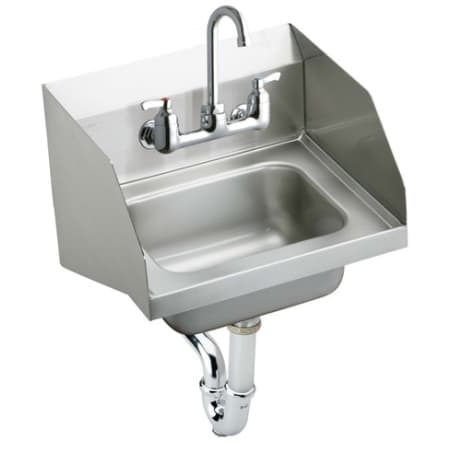

Elkay Wall Mount 18 Gauge Stainless Steel Handwash Sink with Commercial Faucet and Drain Fittings
Product Features:
- Wall mounted
- Hand wash-up sink with 7" high right and left side splashes
- Stainless steel
- 1-3/4" radius coved corners
- Full length 7" high backsplash
- Exposed surfaces have a brushed finish
- Furnished with a wall hanger and integral Stainless steel support brackets
- Faucet:
- Two hole dual handle wall mount faucet
- Quarter turn ceramic disc cartridge
- 1/2" adjustable inlets
- Solid brass construction
- Chrome finish
- Includes spout swing restriction pin
- Drain:
- Fits 2" opening
- Polished finish
- Type 304 Stainless steel 1-1/2" x 4" tailpiece
- Drain Fitting - P Trap:
- Chrome plated cast brass
- 1-1/2" O.D. “P” trap with cleanout plug
- 1-1/2" O.D. tubing waste arm to wall and wall flange
- 12" from center of drain inlet to wall
Product Specifications:
- Sink:
- Installation Type: Wall
- Material: Stainless Steel
- Number of Basins: 1
- Sink Dimensions: 16-3/4" L x 15-1/2" W
- Bowl Depth: 6"
- Bowl Dimensions: 12" L x 9-1/4" W x 6" D
- Faucet Holes: 2
- Drain Size: 2-3/16"
- Faucet:
- Mounting Type: Wall
- Holes Required: Two
- Overall Height: 11-5/16"
- Spout Height: 8-7/8"
- Spout Reach: 3-5/8"
- Material: Brass
- Flow Rate: 2.2 GPM
- Ship Wt: 23.3 lbs
Dimensions and Measurements
Basin Depth | 6 in. |
Basin Length | 12 in. |
Basin Width | 9.25 in. |
Drain Hole | 2.19 in. |
Faucet Centers | 8 in. |
Faucet Height | 14.5 in. |
Gauge | 18 |
Inlet Diameter | .5 in. |
Length | 16.75 in. |
Spout Height | 9 in. |
Spout Reach | 8 in. |
Width | 15.5 in. |
Dimensions and Measurements
Basin Depth | 6 in. |
Basin Length | 12 in. |
Basin Width | 9.25 in. |
Drain Hole | 2.19 in. |
Faucet Centers | 8 in. |
Faucet Height | 14.5 in. |
Gauge | 18 |
Inlet Diameter | .5 in. |
Length | 16.75 in. |
Spout Height | 9 in. |
Spout Reach | 8 in. |
Width | 15.5 in. |
Included Components
Handles Included | Yes |
Valve Included | Yes |
Included Components
Handles Included | Yes |
Valve Included | Yes |
Characteristics and Features
Drain Placement | Center |
Faucet Holes | 2 |
Handle Style | Wrist Blade |
Installation Type | Wall Mounted |
Material | Brass, Stainless Steel |
Number Of Basins | 1 |
Number Of Handles | 2 |
Sink Material | Stainless Steel, Brass |
Sink Shape | Rectangular |
Valve Type | Ceramic Disc |
Characteristics and Features
Drain Placement | Center |
Faucet Holes | 2 |
Handle Style | Wrist Blade |
Installation Type | Wall Mounted |
Material | Brass, Stainless Steel |
Number Of Basins | 1 |
Number Of Handles | 2 |
Sink Material | Stainless Steel, Brass |
Sink Shape | Rectangular |
Valve Type | Ceramic Disc |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | NSF |
Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | Yes |
Certifications | NSF |
Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
