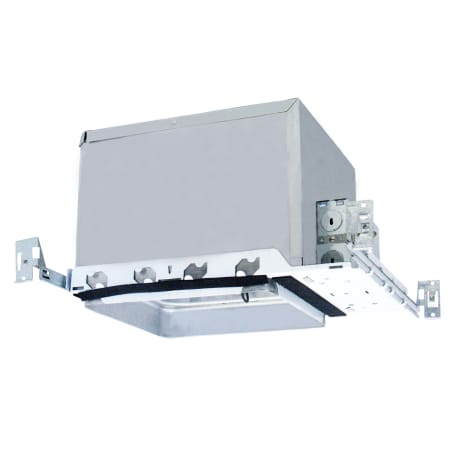

Elco IC Rated New Construction Double Wall Housing for 8" Trims - 75 Watts
Model: EL8SQICA|Item: bci1660555
$36.81
Special Order
Details
Features
- Integral thermal protector
- Includes captive hanger bars for 24" maximum joist spacing
- Insulated ceiling rated and airtight
- UL rated for damp locations
Dimensions
- Trim Size: 8"
- Height: 7-1/4"
- Width: 8-1/2"
- Depth: 8"
- Product Weight: 4 lbs
- Cutout Size: 8-3/4"
Electrical Specifications
- Max Wattage: 75 watts
Manufacturer Resources
Specification SheetDimensions and Measurements
Cutout Size | 8.75 in. |
Depth | 8 in. |
Height | 7.25 in. |
Product Weight | 4 lbs. |
Trim Size | 8 in. |
Width | 8.5 in. |
Dimensions and Measurements
Cutout Size | 8.75 in. |
Depth | 8 in. |
Height | 7.25 in. |
Product Weight | 4 lbs. |
Trim Size | 8 in. |
Width | 8.5 in. |
Characteristics and Features
Airtight | Yes |
Bulb Base | Medium (E26) |
Bulb Type | Incandescent |
Housing Type | New Construction Housing |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Retrofit | No |
Shallow Ceiling Compatible | No |
Sloped Ceiling Compatible | No |
Theme | Contemporary |
Characteristics and Features
Airtight | Yes |
Bulb Base | Medium (E26) |
Bulb Type | Incandescent |
Housing Type | New Construction Housing |
Light Direction | Down Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Retrofit | No |
Shallow Ceiling Compatible | No |
Sloped Ceiling Compatible | No |
Theme | Contemporary |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 75 |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120 |
Voltage Type | Line Voltage (110-120V) |
Wattage | 75 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Country Of Origin | China |
Fire Rated | No |
IC Rating | IC |
Location Rating | Damp Location |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Country Of Origin | China |
Fire Rated | No |
IC Rating | IC |
Location Rating | Damp Location |
