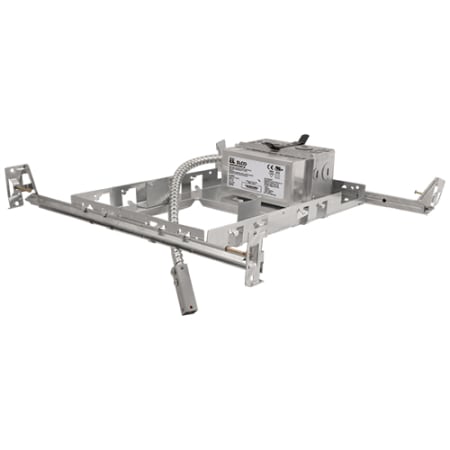

Elco IC Rated Shallow Frame with Driver for 5" Trims
Model: E5SQLFU20|Item: bci3112773
Details
Features:
- IC Rated
- UL rated for wet locations
- Adjustable and can accommodate up to 1-1/4" ceiling thickness
- Title 24 compliant
- Dimmable LED driver included
- Includes a 5 year limited manufacturer warranty

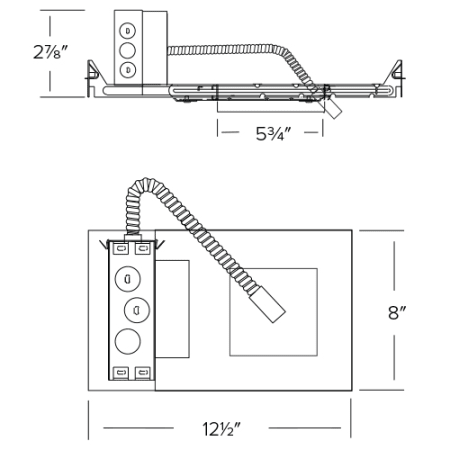

Dimensions:
- Height: 2-7/8"
- Width: 12-1/2"
- Cutout Size: 5-3/4"
- Trim Size: 5"
Electrical Specifications:
- LED: Yes
- Wattage: 26w
- Voltage: 120/277v
Manufacturer Resources
Specification SheetDimensions and Measurements
Cutout Size | 5.75 in. |
Depth | 8 in. |
Height | 2.875 in. |
Trim Size | 5 in. |
Width | 12.5 in. |
Dimensions and Measurements
Cutout Size | 5.75 in. |
Depth | 8 in. |
Height | 2.875 in. |
Trim Size | 5 in. |
Width | 12.5 in. |
Characteristics and Features
Dimmable | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Characteristics and Features
Dimmable | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Warranty and Product Information
Certifications | UL |
IC Rating | IC |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
IC Rating | IC |
Location Rating | Wet Location |
Manufacturer Warranty | 5 Year Limited |
Title 24 | Yes |
