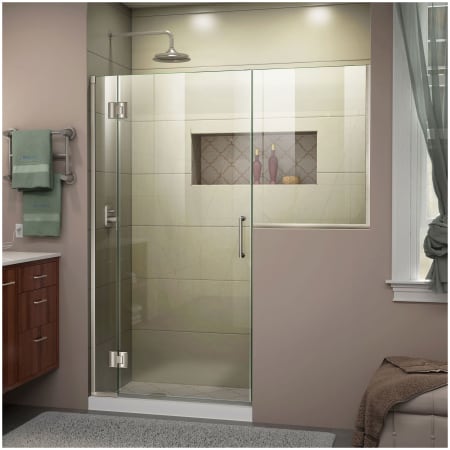

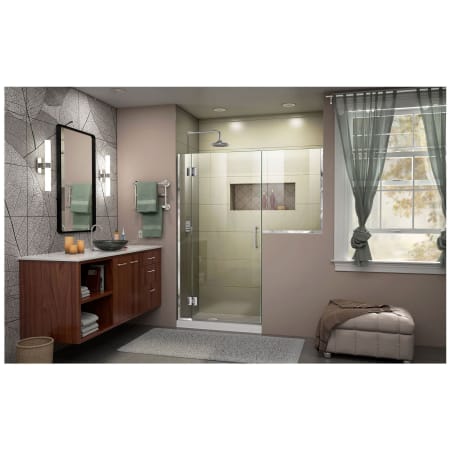

DreamLine Unidoor-X 72" High x 72-1/2" Wide Hinged Frameless Shower Door with Clear Glass
Model: D1303634-04|Item: bci3047746
$999.99
Finish: Brushed Nickel -
53 In Stock
Finish: Brushed Nickel -
53 In Stock
Brushed Nickel
Details
The DreamLine Unidoor-X is a frameless shower door, tub door or enclosure that features a luxurious modern design, complementing the architectural details, tile patterns and the composition of your bath space. Unidoor-X showcases sleek, clean lines to enhance any shower space, creating a stunning appearance. DreamLine exclusive ClearMax water repellant and stain resistant glass coating adds superior protection from stains and is nearly maintenance-free. Unidoor-X is part of DreamLine Unidoor collection, the most versatile line of shower doors and enclosures on the market.
DreamLine D1303634 Features:
- IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
- Premium 3/8" (10 mm) thick clear tempered glass for a luxurious look
- Frameless glass design to give an open and airy feel to your shower space

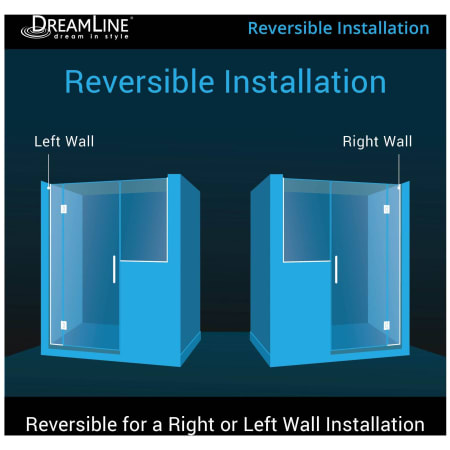

- Reversible for left or right wall installation to fit your specific layout

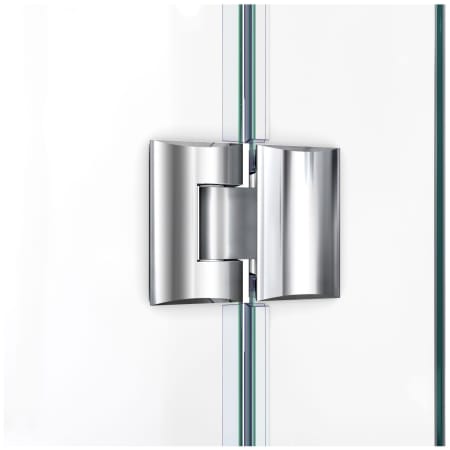

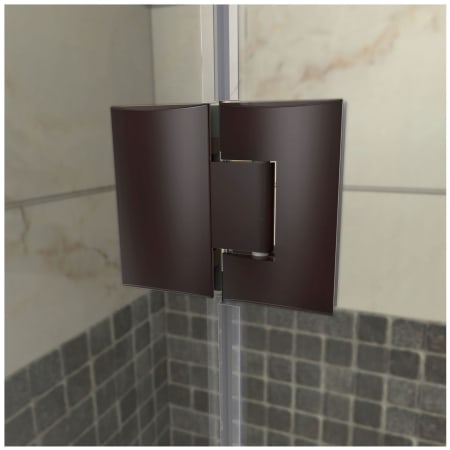

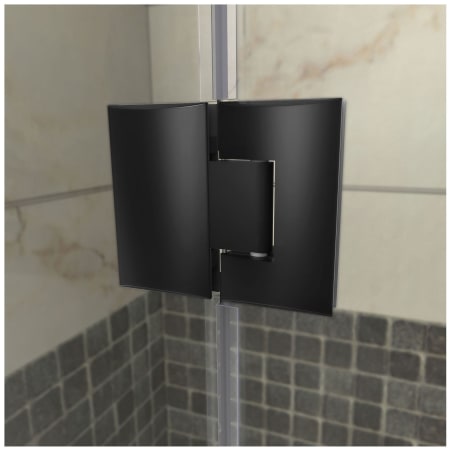

- Solid brass glass-to-glass self-closing hinges
- Configuration: Hinged panel with attached shower door and inline buttress panel
- Model Size: 72 - 72-1/2" W x 72" H
- Door Walk-In: 29"
- Hinged Panel: 6"
- Inline Buttress Panel: 36" W x 34" H
- Glass panels available for buttress wall heights of 36 or 38"

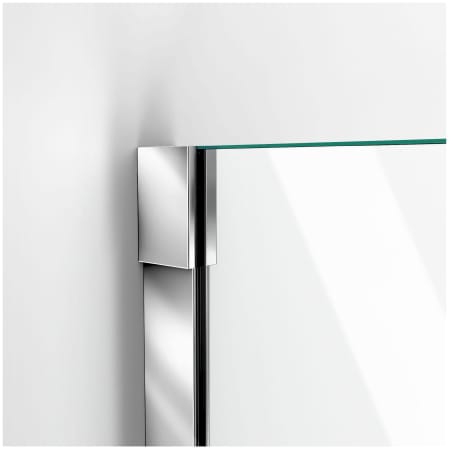

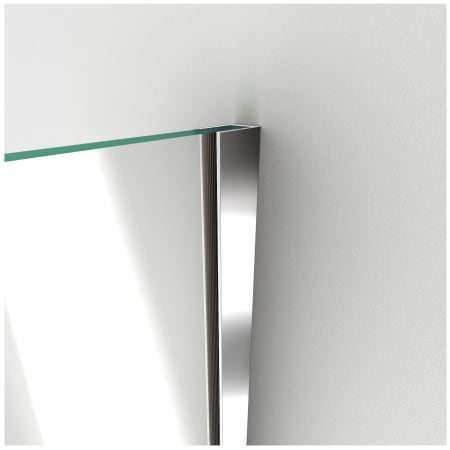

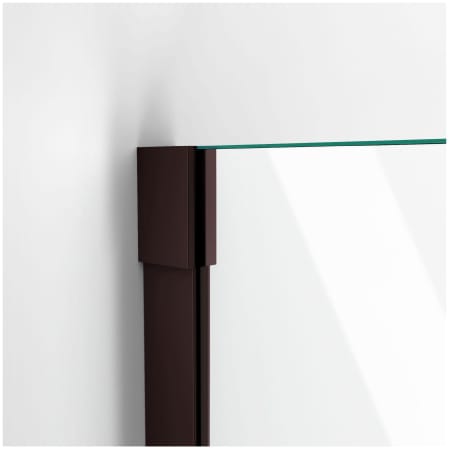

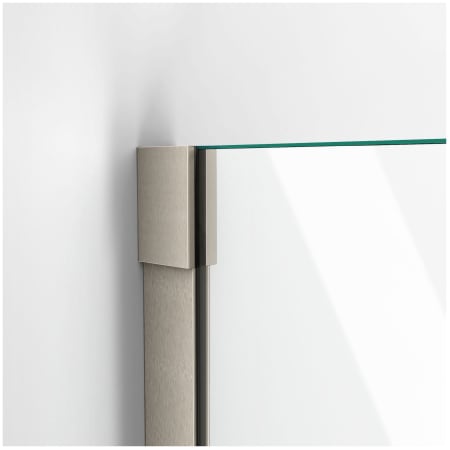

- Hinged and inline panels are installed to the wall by 1" anodized aluminum adjustable U-channel

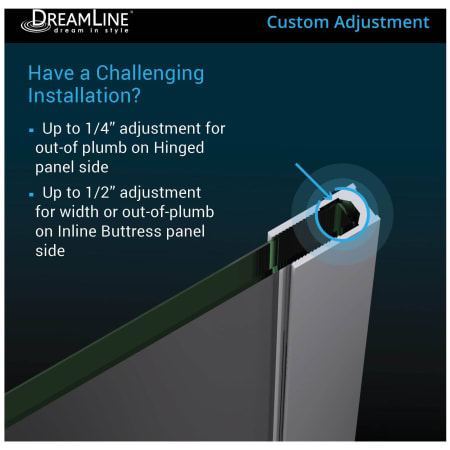

- 1/4" out-of-plumb adjustment available on hinged panel side
- 1/2" width or out-of-plumb adjustment available on inline panel side
- Professional installation recommended
- Limited lifetime manufacturer warranty
- Warranty for any hardware in oil rubbed bronze finish is limited to 1 (one) year
Dimensions and Measurements
Door Width | 29 in. |
Glass Thickness | .375 in. |
Height | 72 in. |
Maximum Width | 72.5 in. |
Minimum Width | 72 in. |
Nominal Width | 72.5 in. |
Panel Width | 36, 6 in. |
Product Weight | 153 lbs. |
Shower Door Width | 29 in. |
Width | 72.5 in. |
Dimensions and Measurements
Door Width | 29 in. |
Glass Thickness | .375 in. |
Height | 72 in. |
Maximum Width | 72.5 in. |
Minimum Width | 72 in. |
Nominal Width | 72.5 in. |
Panel Width | 36, 6 in. |
Product Weight | 153 lbs. |
Shower Door Width | 29 in. |
Width | 72.5 in. |
Included Components
Base Included | No |
Installation Hardware Included | Yes |
Included Components
Base Included | No |
Installation Hardware Included | Yes |
Characteristics and Features
Configuration | Shower Door |
Curb Location | Front |
Door Swing | Reversible, Right, Left |
Door Type | Hinged |
Frame Type | Frameless |
Glass Features | Clear Glass |
Installation Type | Alcove |
Material | Tempered Glass, Brass |
Number Of Curbs | 1 |
Number Of Doors | 1 |
Number of Thresholds | 1 |
Shape | Rectangular |
Theme | Modern |
Characteristics and Features
Configuration | Shower Door |
Curb Location | Front |
Door Swing | Reversible, Right, Left |
Door Type | Hinged |
Frame Type | Frameless |
Glass Features | Clear Glass |
Installation Type | Alcove |
Material | Tempered Glass, Brass |
Number Of Curbs | 1 |
Number Of Doors | 1 |
Number of Thresholds | 1 |
Shape | Rectangular |
Theme | Modern |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ANSI |
Collection | Unidoor-X |
Commercial Warranty | 1 Year Limited |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | ANSI |
Collection | Unidoor-X |
Commercial Warranty | 1 Year Limited |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
