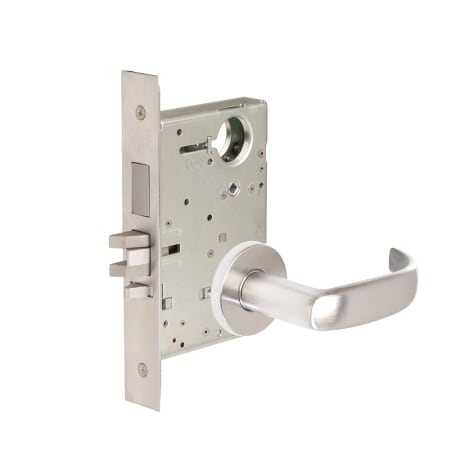

Corbin Russwin Commercial Fire Rated Panic Proof Grade 1 Keyed Entry Storeroom Security Mortise Lever Set with PSA Trim - Less Cylinder

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

• Latchbolt and deadbolt by handle inside or by key outside
• Outside handle always rigid
• Inside handle always free
• Auxiliary latch deadlocks the latchbolt
• Allows for free egress

Features:

• Exceeds criteria for BHMA Grade 1
• All metal construction for enhanced durability and security
• Reversible handing for easy installation
• Includes a 10 year limited warranty
• UL listed 3 hour rating
• Compliant with Americans with Disabilities Act (ADA)

Specifications:

• Backset: 2-3/4"
• Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
• Door Thickness: 1-3/4"
• Handle Length: 5-1/4"
• Trim Projection: 2-1/2"
• Trim Width: 2-1/4"
• Trim Height: 2-1/4"
• Cylinder Included: No
• Latch Faceplate: Square Corner
• Product Weight: 6.25 lbs.
• Material: Brass, Stainless Steel, Steel
