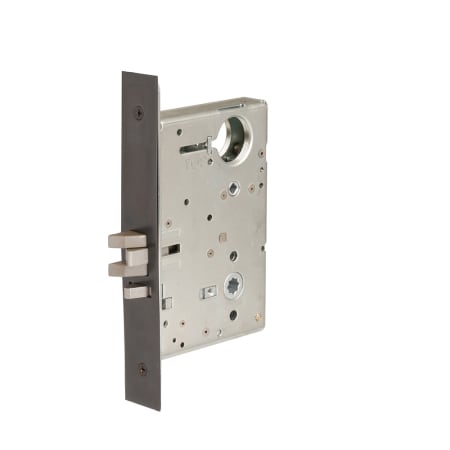

Corbin Russwin Grade 1 Commercial Classroom Panic Proof Mortise Lock Body for Lever - Less Cylinder
Model: ML2055-LL-613|Item: bci3416150
$391.00
Finish: Oil Rubbed Bronze -
34 In Stock
Finish: Oil Rubbed Bronze -
34 In Stock
Oil Rubbed Bronze
Details
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions
Lock Function:
- Latchbolt operated by handle either side, unless outside handle is locked by key outside
- Latchbolt operated by key when outside handle locked
- Outside handle remains locked unless unlocked by key
- Inside handle always free
- Auxiliary latch deadlocks the latchbolt
- Allows for free egress
Features:
- Exceeds criteria for BHMA Grade 1
- All metal construction for enhanced durability and security
- Reversible handing for easy installation
- Includes a 10 year limited warranty
- UL listed 3 hour rating
- Compliant with Americans with Disabilities Act (ADA)
Specifications:
- Backset: 2-3/4"
- Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
- Door Thickness: 1-3/4"
- Cylinder Included: No
- Latch Faceplate: Square Corner
- Product Weight: 3.6 lbs.
- Material: Brass, Bronze, Stainless Steel, Steel
Manufacturer Resources
Installation SheetDimensions and Measurements
Backset | 2-3/4" |
Door Thickness | 1-3/4" |
Product Weight | 3.6 lbs. |
Dimensions and Measurements
Backset | 2-3/4" |
Door Thickness | 1-3/4" |
Product Weight | 3.6 lbs. |
Included Components
Cylinder Included | No |
Included Components
Cylinder Included | No |
Characteristics and Features
Concealed Screws | Yes |
Function | Classroom, Mortise |
Handing | Left, Left Hand Reverse, Right, Right Hand Reverse |
Latch Faceplate | Square Corner |
Material | Brass, Bronze, Stainless Steel, Steel |
Panic Proof | Yes |
Theme | Transitional |
Characteristics and Features
Concealed Screws | Yes |
Function | Classroom, Mortise |
Handing | Left, Left Hand Reverse, Right, Right Hand Reverse |
Latch Faceplate | Square Corner |
Material | Brass, Bronze, Stainless Steel, Steel |
Panic Proof | Yes |
Theme | Transitional |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.13 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Country Of Origin | USA |
Fire Rated | Yes |
Made in America | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ML2000 |
Warranty and Product Information
ADA | Yes |
ANSI Certification | A156.13 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Country Of Origin | USA |
Fire Rated | Yes |
Made in America | Yes |
Manufacturer Warranty | 10 Year Limited |
Series | ML2000 |
