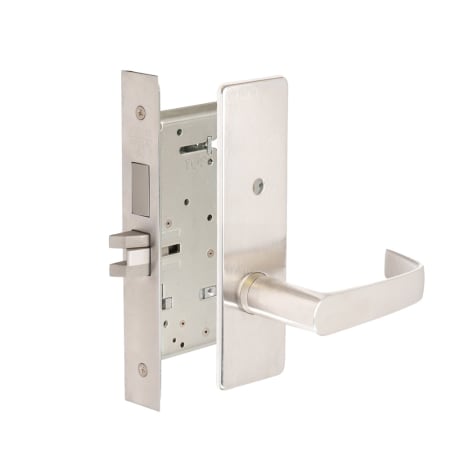

Corbin Russwin Fire Rated Grade 1 Commercial Privacy Mortise Lever Set with NSM Trim

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

• Latchbolt operated by handle either side, when deadbolt is retracted
• Deadbolt thrown or retracted by thumbturn inside or by emergency release tool outside
• Does not allow for free egress

Features:

• Exceeds criteria for BHMA Grade 1
• All metal construction for enhanced durability and security
• Reversible handing for easy installation
• Includes a 10 year limited warranty
• UL listed 3 hour rating
• Compliant with Americans with Disabilities Act (ADA)

Specifications:

• Backset: 2-3/4"
• Handing: Left, Left Hand Reverse, Right, Right Hand Reverse
• Door Thickness: 1-3/4"
• Handle Length: 4-13/16"
• Trim Projection: 2-5/8"
• Trim Height: 7-1/2"
• Trim Width: 2-1/4"
• Latch Faceplate: Square Corner
• Product Weight: 6.25 lbs.
• Material: Brass, Stainless Steel, Steel
