Corbin Russwin
Oil Rubbed Bronze

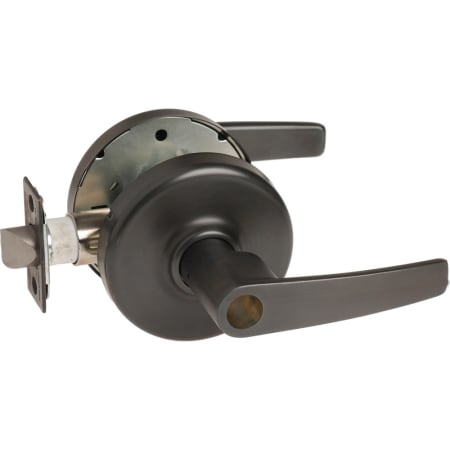

Corbin Russwin Commercial Panic Proof Grade 1 Extra Heavy Duty Keyed Entry Storeroom Lever Set with AZD Trim - Less Cylinder

Model: CL3357-AZD-613-LC
|
Item: bci3415605

$396.89
Finish: Oil Rubbed Bronze -
Special Order
Finish: Oil Rubbed Bronze -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 3 to 7 weeks
-
Return & Shipping Details

Details

Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

Lock Function:

  • Latchbolt operated by key in outside handle or by rotating inside handle
  • Inside handle always free
  • Handle is free-wheeling in locked position
  • Allows for free egress

Features:

  • Exceeds criteria for BHMA Grade 1
  • All metal construction for enhanced durability and security
  • Reversible handing for easy installation
  • Includes a 7 year limited warranty
  • UL listed 3 hour rating
  • Compliant with Americans with Disabilities Act (ADA)

Specifications:

  • Backset: 2-3/4"
  • Cross Bore: 2-1/8"
  • Edge Bore: 1"
  • Handing: Reversible, Left or Right
  • Door Thickness: 1-3/4" to 2"
  • Handle Length: 4"
  • Trim Projection: 2-13/16"
  • Trim Width: 3-1/2"
  • Trim Height: 3-1/2"
  • Interchangeable Core: No
  • Cylinder Included: No
  • Latch Faceplate: Square Corner
  • Product Weight: 5.3 lbs.
  • Material: Brass, Bronze, Steel, Zinc
Additional Corbin Russwin Links

Manufacturer Resources

Installation Sheet

Dimensions and Measurements

Backset
2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-3/4", 1-7/8", 2"
Edge Bore
1"
Handle Length
4 in.
Handle Projection
2.8125 in.
Product Weight
5.3 lbs.
Trim Height
3.5 in.
Trim Width
3.5 in.

Dimensions and Measurements

Backset
2-3/4"
Cross Bore
2-1/8"
Door Thickness
1-3/4", 1-7/8", 2"
Edge Bore
1"
Handle Length
4 in.
Handle Projection
2.8125 in.
Product Weight
5.3 lbs.
Trim Height
3.5 in.
Trim Width
3.5 in.

Included Components

28 Degree Latch
No
Cylinder Included
No
Interchangeable Core
No

Included Components

28 Degree Latch
No
Cylinder Included
No
Interchangeable Core
No

Characteristics and Features

Concealed Screws
Yes
Cylinder Type
Single Cylinder
Function
Keyed Entry, Storeroom
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Straight
Material
Brass, Bronze, Steel, Zinc
Panic Proof
Yes
Rosette Shape
Round
Theme
Transitional

Characteristics and Features

Concealed Screws
Yes
Cylinder Type
Single Cylinder
Function
Keyed Entry, Storeroom
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Lever Shape
Straight
Material
Brass, Bronze, Steel, Zinc
Panic Proof
Yes
Rosette Shape
Round
Theme
Transitional

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Armstrong
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
7 Year Limited
Series
CL3300

Warranty and Product Information

ADA
Yes
ANSI Certification
A156.2
Approved for Commercial Use
Yes
BHMA Certification
Grade 1
Certifications
ANSI, UL
Collection
Armstrong
Country Of Origin
USA
Fire Rated
Yes
Made in America
Yes
Manufacturer Warranty
7 Year Limited
Series
CL3300
