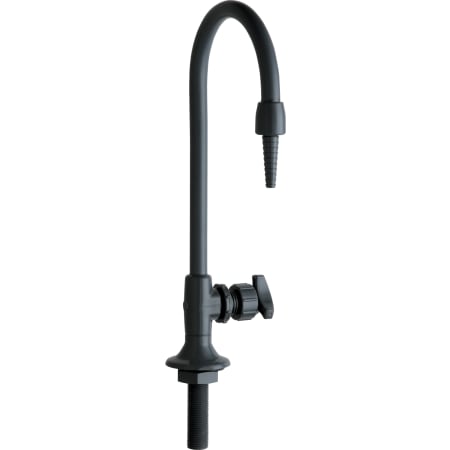

Chicago Faucets PVC Distilled Water Lab Faucet with Vacuum Breaker
Model: 869-BPVC|Item: bci2225165
$468.39
Finish: Black -
Special Order
Details
Product Features:
- Manufactured and assembled in the United States of America
- Faucet body and handles are covered under Chicago Faucet's limited lifetime warranty
- Constructed of solid brass
- High quality chrome plated finish - finishes are covered under warranty for a year
- Deck mounted hot and cold water mixing faucet
- Single handle operation
- Full flow classic laboratory needle spout outlet
- Ceramic 1/4 turn operating cartridge - covered under warranty for 5 years
- High arch design provides increased workspace under the faucet
- Spout swivels 360-degrees to allow for unobstructed access to the whole sink
- Mounting hardware not included
Technologies and Benefits:
- Commercial Grade Faucet: When a product is marked as "commercial grade" it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry's highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Product Specifications:
- Required Installation Holes: 1
- Maximum Deck Thickness: 1-5/8" (cannot install on decks thicker without extention kit)
- Rated Operating Pressure: 20 - 125 PSI
- Rated Operating Temperature: 40 - 140 degrees Fahrenheit
- 1 Cross handle included with faucet
- 3/8" and 1/2" connection - designed for use with standard U.S. plumbing supply bibs
Codes and Compliance:
- ASME A112.18.1/CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
Dimensions and Measurements
Max Deck Thickness | 1.625 in. |
Product Weight | 2.5 lbs. |
Spout Swivel | 360 Degrees |
Water Connection | 1/2", 3/8" |
Dimensions and Measurements
Max Deck Thickness | 1.625 in. |
Product Weight | 2.5 lbs. |
Spout Swivel | 360 Degrees |
Water Connection | 1/2", 3/8" |
Included Components
Drain Assembly Included | No |
Escutcheon Included | No |
Handles Included | Yes |
Valve Included | Yes |
Included Components
Drain Assembly Included | No |
Escutcheon Included | No |
Handles Included | Yes |
Valve Included | Yes |
Characteristics and Features
Faucet Holes | 1 |
Handle Material | Brass |
Handle Style | Cross |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Single Hole |
Number Of Handles | 1 |
Spout Type | Swivel |
Valve Type | Ceramic Disc |
Characteristics and Features
Faucet Holes | 1 |
Handle Material | Brass |
Handle Style | Cross |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Single Hole |
Number Of Handles | 1 |
Spout Type | Swivel |
Valve Type | Ceramic Disc |
Warranty and Product Information
ADA | No |
Application | Lab, Shop |
Approved for Commercial Use | Yes |
Country Of Origin | USA |
Low Lead Compliant | No |
Manufacturer Warranty | Limited Lifetime, 5 Year Cartridge, 1 Year Finish |
Warranty and Product Information
ADA | No |
Application | Lab, Shop |
Approved for Commercial Use | Yes |
Country Of Origin | USA |
Low Lead Compliant | No |
Manufacturer Warranty | Limited Lifetime, 5 Year Cartridge, 1 Year Finish |
