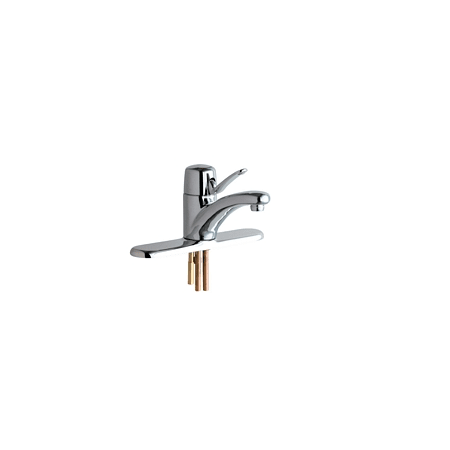

Chicago Faucets Centerset Bathroom Faucet with 4" Faucet Centers and Lever Handle
Model: 2200-8ABCP|Item: bci1070710
from theManual Collection
$482.53
Finish: Chrome -
Special Order
Details
Product Features:
- Manufactured and assembled in the United States of America
- Faucet body and handles are covered under Chicago Faucet's limited lifetime warranty
- Constructed of solid brass
- High quality chrome plated finish - finish covered under warranty for a year
- Self closing lever handle operation
- Metering adjustable cycle time closure cartridge - covered under 5-year warranty
- Installs in a centerset configuration
- ADA compliant
- Mounting hardware not included
The Chicago Faucets Benefit:
- Commercial Grade Faucet: When a product is marked as "commercial grade" it means it has been built specifically to stand the test of time, and has been factory tested to function flawlessly through constant and continuous use. It is expected that faucets used in a commerce fashion will see much more use, and inversely abuse than typical faucets you might see in a residential setting, so they are engineered to do just that. Using simple, yet reliable, designs coupled with the industry's highest quality materials these faucets are some of the most reliable on the market. Although they are marketed as being ideal for commercial settings, the savvy home owner might take the quality found here and add a staple of functionality throughout the home as well.
Product Specifications:
- Overall Height: 6-3/8" (measured from mounting surface to highest point on faucet)
- Spout Height: 3" (measured from mounting surface to spout outlet)
- Spout Reach: 4-3/4" (measured from center of faucet base to center of spout outlet)
- Required Installation Holes: 3
- Faucet Centers: 8" (center-to-center distance between installation holes)
- Flow Rate: 2.2 gallons-per-minute
- Mounting Configuration: Centerset
- Maximum Deck Thickness: 2"
- Rated Operating Pressure: 20-125 PSI
- Rated Operating Temperature: 40-140 - degrees Fahrenheit
- 1 handle included with faucet
- 1/2" connection - designed for use with standard U.S. plumbing supply bibs
- ASME A112.18.1/CSA B125.1
- Certified to NSF/ANSI 61, Section 9 by CSA
- ADA ANSI/ICC A117.1
Manufacturer Resources
Specification SheetDimensions and Measurements
Escutcheon Width | 10.125 in. |
Faucet Centers | 8 in. |
Faucet Hole Size | 1.25 in. |
Flow Rate (GPM) | 2.2 |
Height | 6.375 in. |
Max Deck Thickness | 2 in. |
Overall Height | 6.375 in. |
Spout Height | 3 in. |
Spout Reach | 4.75 in. |
Width | 10.12 in. |
Dimensions and Measurements
Escutcheon Width | 10.125 in. |
Faucet Centers | 8 in. |
Faucet Hole Size | 1.25 in. |
Flow Rate (GPM) | 2.2 |
Height | 6.375 in. |
Max Deck Thickness | 2 in. |
Overall Height | 6.375 in. |
Spout Height | 3 in. |
Spout Reach | 4.75 in. |
Width | 10.12 in. |
Included Components
Drain Assembly Included | No |
Handles Included | Yes |
Sidespray | No |
Soap Dispenser Included | No |
Valve Included | Yes |
Volume Control | Yes |
Included Components
Drain Assembly Included | No |
Handles Included | Yes |
Sidespray | No |
Soap Dispenser Included | No |
Valve Included | Yes |
Volume Control | Yes |
Characteristics and Features
Faucet Holes | 3 |
Faucet Type | Bathroom Sink Faucet |
Handle Material | Metal |
Handle Style | Lever |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Centerset |
Number Of Handles | 1 |
Pullout Spray | No |
Theme | Basic |
Valve Type | Ceramic Disc |
Characteristics and Features
Faucet Holes | 3 |
Faucet Type | Bathroom Sink Faucet |
Handle Material | Metal |
Handle Style | Lever |
Installation Type | Deck Mounted |
Material | Brass |
Mounting Type | Centerset |
Number Of Handles | 1 |
Pullout Spray | No |
Theme | Basic |
Valve Type | Ceramic Disc |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1M |
CA Drought Compliant | No |
Certifications | ASME, CSA, NSF |
CSA Code | B125 |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Low Lead Compliant | Yes |
WaterSense Certified | No |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
ASME Code | A112.18.1M |
CA Drought Compliant | No |
Certifications | ASME, CSA, NSF |
CSA Code | B125 |
Lead Leaching Certified NSF/ANSI 61 | Yes |
Low Lead Compliant | Yes |
WaterSense Certified | No |
